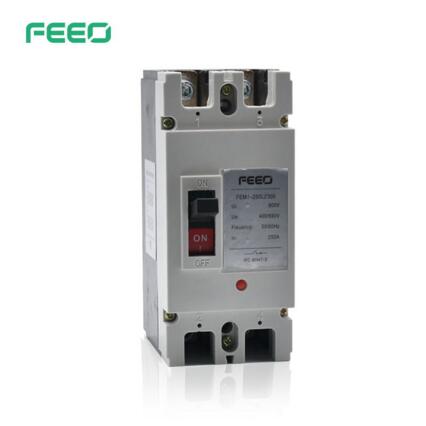

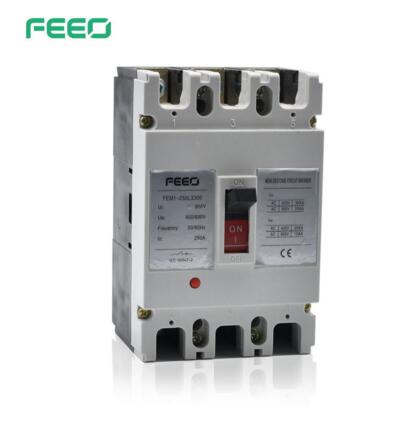

moulded case circuit breaker for sale motorized mccb supplier

FOB Reference Price / Min.Order Quantity

USD 10.00-500.00 / Piece/Pieces | 50.00 Piece/Pieces (Min. Order)

Processing Time:15-20DAYS

Packaging Details: standard export box package carton size 420/240/330

Port: Shanghai / Ningbo

Payment Terms: L/C , T/T , other

Product Details Company Profile

150a mcb circuit breaker Product Application:
FEM1 series moulded case circuit breaker is a new type product developed and manufactured by Adopting international advanced technology. It is supplied with rated insulation voltage 800V and used for circuit of AC 50Hz, rated operation voltage AC 400V or below rated operation current up to 1600A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standard.

Item	MOULDED CASE CIRCUIT BREAKER
Code	FEM1-125	FEM1-250	FEM1-400	FEM1-630	FEM1-800	FEM1-1250
Pole	2P,3P,4P	2P,3P,4P	3P,4P	3P,4P	3P,4P	3P,4P
Voltage	690v/800v
Current	6A,10A,16A, 20A,25A,32A,40A, 50A,63A,80A,100A,125A	100A,125A,140A, 160A 200A, 225A,250A	250A 400A	400A 500A 630A	630A 700A 800A	800A,1000A, 1250A
Standard	IEC/EN60947
Breaking Capacity	35KA	35KA	50KA	50KA	75KA	75KA
Characteristic Curve	C
Working Temperature	“-5°”to +40°
Protection Degree	IP20
Electrical life	More than 8000times
Mechanical life	More than 2000times
Installation	35MM DIN RAIL
Accessory	YES
Installation Altitude	≤2000M
