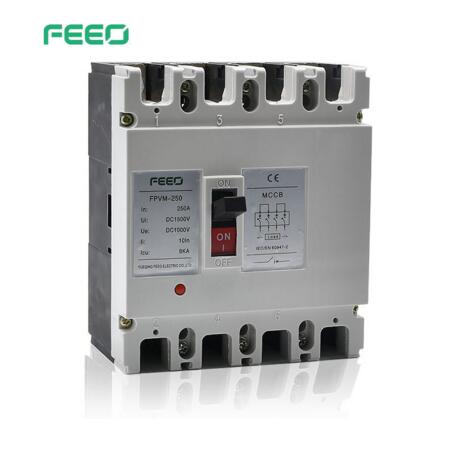

Moulded Case Circuit Breaker for Sale

FOB Reference Price / Min.Order Quantity

USD 10.00-170.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time:3-15days

Packaging Details: Standard export carton packing

Port: Shanghai / Ningbo

Payment Terms: L/C , T/T , other

Product Details Company Profile

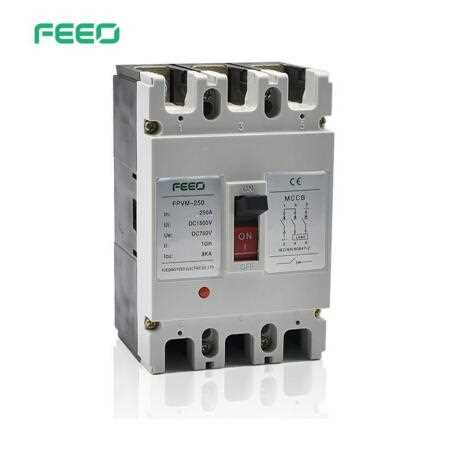

DC MCCB Application:
FPVM series Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 1250A or less,direct current rating voltage 1500V or less.Products according IEC60947-2, GB14048.2 standard.

DC MCCB Parameters:

Model		FPVM-125	FPVM-250	FPVM-400	FPVM-630	FPVM-800	FPVM-1250
Rated Current ln (A)		16, 20, 25, 32, 40, 50, 63, 80, 100, 125	100, 125, 140, 160, 180, 200, 225, 250	250, 315, 350, 400	400, 500, 630	630, 700, 800	800, 1000, 1250
Rated Operating Voltage Ue (V) DC		500V, 550V, 750V, 1000V
Rated Insulation Voltage Ui (V)		1000V	1000V	1500V	1500V	1500V	1500V
Uimp (kV)		8kV
Breaking Capacity (kA) Icu (1cs=75% Icu)	250V	35	50	50	50	65	65
	500V	25	35	35	35	50	50
	750V	15	25	25	25	35	35
	1000V	10	15	15	15	20	20
Mechanical Life	Times	7000	7000	4000	4000	2500	2000
Breaking Times (ms)		20
