Solar Outdoor Power Protection Protective Device DC SPD Surge Protector Surge for Sale

FOB Reference Price / Min.Order Quantity

USD 11.25-16.41 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time:3-15 days

Packaging Details: Standard export carton packing: 2P DC SPD 72pcs/ctn 3P DC SPD 48pcs/ctn Carton Size 48*29.5*15.2CM3 G.W./N.W.: 20.7/20.1kgs

Port: Shanghai / Ningbo

Payment Terms: L/C , T/T , other

Product Details Company Profile

Surge Arrester Application:

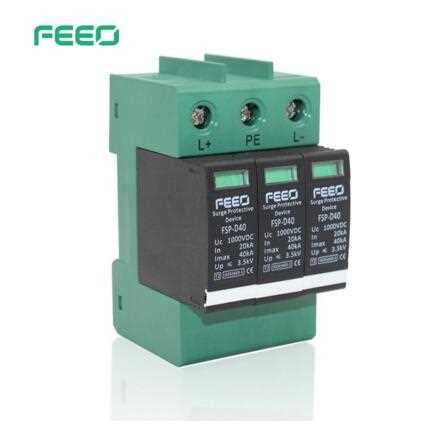

FSP-D40 Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.

Surge Arrester Features:
1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation
4. Replaceable module

Item	Surge Arrester
Code	FSP-D40
Pole	2P	3P
Voltage	12VDC- 600VDC	12VDC- 1000VDC
In(8/20)us(KA)	20KA
Imax(8/20)us(KA)	40KA
Standard	IEC/EN61643
Type	II
Characteristic Curve	B,C,D
Working Temperature	-5 to +40
Protection Degree	IP20
Electrical life	More than 8000times
Mechanical life	More than 2000times
Dimension(W)X(H)X(D)	35x90x49	53x90x49
Installation	35MM DIN RAIL
