lightning absorber Application:

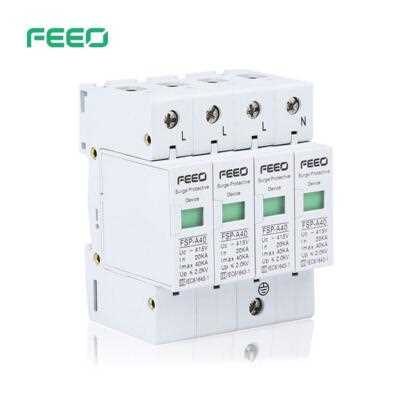

FSP-A series surge protection device (in short SPD,alias:surge suppressor surge arrester)issuitable for TN-S, TN-C-S, TT, IT etc, power supply system of AC 50/60Hz,<380V, installed on thejoint of LPZ1 or LPZ2 and LPZ3. It's designed according to IEC61643-1, GB18802.1, it adopts35mm standard rail, there is a failure release mounted on the module of surge protection device,When the SPD fails in breakdown for over heat and over-current, the failure rlease will help electricequipments separate from the power supply system and give the indication signal, green meansnormal, red means abnormal, it also could be replaced for the module when has operating voltage.
　　
lightning absorber Product Features:　
1.Inside over-current and over-heat protection, temperature control open circuit.　
2.Module design, convenient installation, could be replaced online.
3.Time of response <25ns4.The color of visible window shows operating status, green means normal, red means abnormal

Technical Parameters	FSP-A
Rated Operating Voltage Un(V~)	380V/220V
Maximum Continuous Operating Voltage Uc(V~)	275V	320V	385V	385V	385V	420V
Voltage protection Level Up(V~)kV	≤1.0	≤1.2	≤1.8	≤2.0	≤2.2	≤2.8
Nominal Discharge Current ln (8/20s)kA	5	10	20	30	40	60
Maximum Discharge Current lmax(8/20s)kA	10	20	40	60	80	100
Response Time (ns)	<25
Test Standard	IEC61643.1, GB18802.1
Operating Environment(centigrade)	-40℃ ~+85℃
Max Connection Line	35mm2 hard wire/35mm2 strand wire copper line
Recommended Connection Line	16mm2 hard wire/25mm2 strand wire copper line
Installation	Standard Rail 35mm
Material of Outer Covering	Burning-proof Nylon
