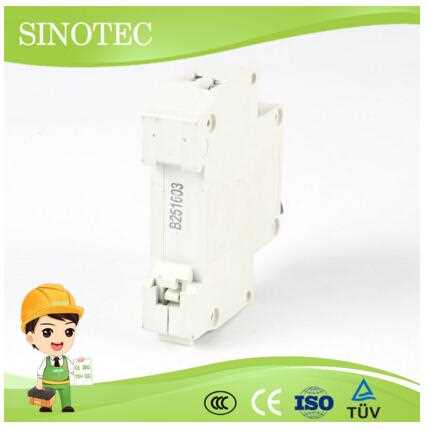

Miniature circuit breaker ,MCB,DPN for sale

FOB Reference Price / Min.Order Quantity

USD 1.10-1.30 / Piece/Pieces | 3000.00 Piece/Pieces (Min. Order)

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

DZ30 series miniature circuit breaker is applicable to the circuit with an alternating current of 50 or 60Hz, rated voltage of 230V, and rated current up to 32A for overload protection and short circuit protection, and also for notfrequent operational transformation in the circuit under normal condition. This product can be applied to various places such as industrial, commercial, and tall buildings, and residential houses.

Standard	IEC 60898-1
Rated current In (A)	6/10/16/20/25/32
Poles	1P+N
Rated voltage Ue (V)	230
Insulation voltage Ui (V)	500
Rated fequency	50/60Hz
Rated breaking capacity (A)	4500
Rated impulse withstand voltage (KV)	4
Dielectric test viltage at ind. Freq.for 1 min (KV)	2
Pollution degree	2
Thermo-magnetic release characterisic	C
Electrical life	10000
Mechanical Life	8000
Protection degree	IP20
Reference temperature for setting of thermal element	+30℃
Ambient temperature	-5~+40℃
Storage temperature	-25~+70℃
Terminal connection type	Cable/Pin-type busbar
terminal size top/bottom for cable (mm²)	1~16
tightening torque	2Nm
Mounting	On din rail EN60715 (35mm)
Connection	From top and bottom
