CE Circuit Breaker, Miniature Circuit Breaker, MCB Supplier

FOB Reference Price / Min.Order Quantity

USD 0.60-3.50 / Piece/Pieces | 1000.00 Piece/Pieces (Min. Order)

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

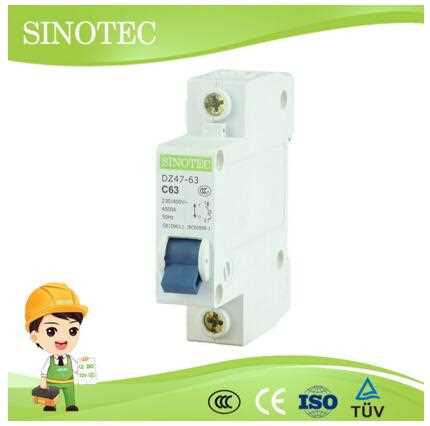

DZ47 series miniature circuit breaker is applicable to the circuit with an alternating current of 50 or 60Hz, rated voltage of 230/400V, and rated current up to 63A for overload protection and short circuit protection, and also for notfrequent operational transformation in the circuit under normal condition. This product can be applied to various places such as industrial, commercial, and tall buildings, and residential houses.

Standard	IEC 60898-1
Rated current In (A)	1/2/3/4/5/6/10/16/20/25/32/40/50/63
Poles	1P/2P/3P/4P/1PN/3PN
Rated voltage Ue (V)	230/400
Insulation voltage Ui (V)	500
Rated fequency	50/60Hz
Rated breaking capacity (A)	6000(1~40A)/4500(50~63A)
Rated impulse withstand voltage (KV)	4
Dielectric test viltage at ind. Freq.for 1 min (KV)	2
Pollution degree	2
Thermo-magnetic release characterisic	B/C/D
Electrical life	10000
mechabical life	4000
Protection degree	IP20
Reference temperature for setting of thermal element	+30℃
Ambient temperature	-5~+40℃
Storage temperature	-25~+70℃
Terminal connection type	Cable/Pin-type busbar
terminal size top/bottom for cable (mm²)	1~25
tightening torque	2Nm
Mounting	On din rail EN60715 (35mm)
Connection	From top and bottom
