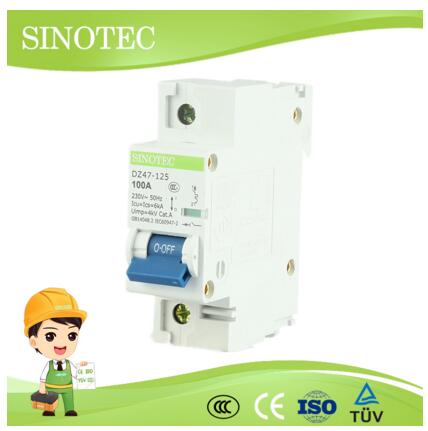

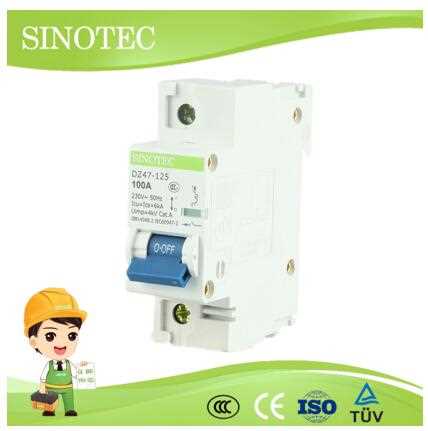

DZ47-125 Moulded Case Circuit Breaker protection of circuits against short-circuit currents, protection of circuits against overload currents, switch, isolation.



Standard	IEC 60947-2
Rated current In (A)	63/80/100/125
Poles	1P/2P/3P/4P
Rated voltage Ue (V)	230/400~240/415
Insulation voltage Ui (V)	500
Rated fequency	50/60Hz
Rated breaking capacity (A)	6000
Rated impulse withstand voltage (KV)	4
Dielectric test viltage at ind. Freq.for 1 min (KV)	2
Pollution degree	3
Thermo-magnetic release characterisic	8-12In
Electrical life	8500(63~100A)                              7000(125A)
mechabical life	1500(63~100A)                              1000(125A)
Protection degree	IP20
Reference temperature for setting of thermal element	+30℃
Ambient temperature	-5~+40℃
Storage temperature	-25~+70℃
Terminal connection type	Cable/Pin-type busbar
terminal size top/bottom for cable (mm²)	16~250
tightening torque	3.5Nm
Mounting	On din rail EN60715 (35mm)
Connection	From top and bottom
