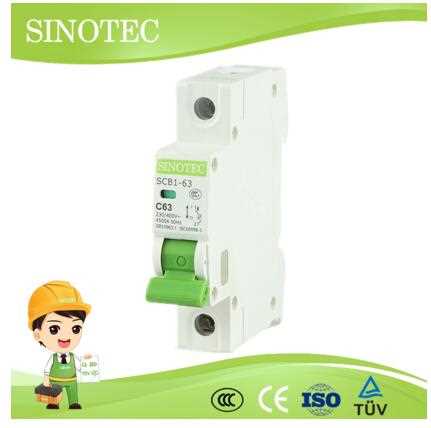

High Quality Circuit Breaker, Miniature Circuit Breaker, MCB with CE ISO CCC

FOB Reference Price / Min.Order Quantity

USD 0.95-0.00 / Piece/Pieces | 1000.00 Piece/Pieces (Min. Order)

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Protection of circuits against short-circuit currents, protection of circuits against overload currents, switch, isolation.

Standard	IEC 60898-1
Rated current In (A)	1/2/3/4/5/6/10/16/20/25/32/40/50/63
Poles	1P/2P/3P/4P/1PN/3PN
Rated voltage Ue (V)	230/400
Insulation voltage Ui (V)	500
Rated fequency	50/60Hz
Rated breaking capacity (A)	6000(1~40A)/4000(50~63A)
Rated impulse withstand voltage (KV)	4
Dielectric test viltage at ind. Freq.for 1 min (KV)	2
Pollution degree	2
Thermo-magnetic release characterisic	B/C/D
Electrical life	10000
mechabical life	4000
Protection degree	IP20
Reference temperature for setting of thermal element	+30℃
Ambient temperature	-5~+40℃
Storage temperature	-25~+70℃
Terminal connection type	Cable/Pin-type busbar
terminal size top/bottom for cable (mm²)	1~25
tightening torque	2Nm
Mounting	On din rail EN60715 (35mm)
Connection	From top and bottom
