soho ip pbx, pbx with gsm pstn co line, embedded pbx asterisk

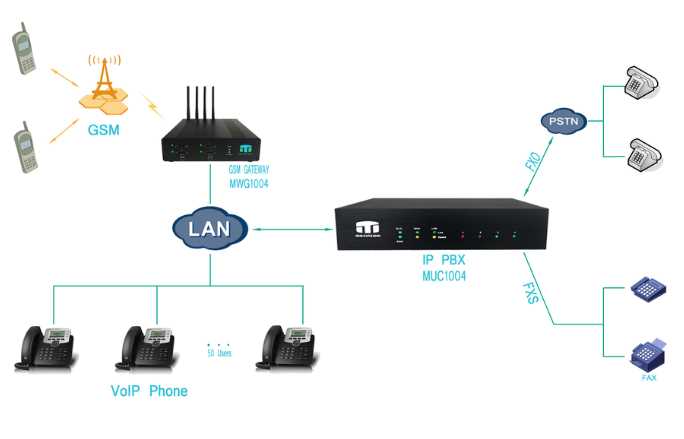

MUC1004 is a standalone embedded hybrid PBX for small businesses and remote branch offices of larger organizations. It is designed to bring enterprise-grade Unified Communications and Security Protection in an easy-to-manage fashion.
1.Key Benefits:

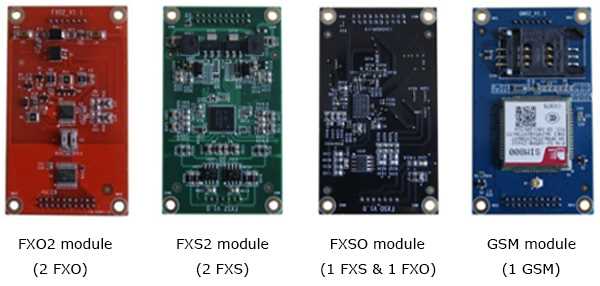

Customizable combination of FXO, FXS, GSM,3G modules.
Easy to manage via web-based configuration interface.
Deliver enterprise-grade communication features and functionality to SMBs
Perfect interoperability with a wide range IP Phone
4 FXO ports,or 4 FXS ports, or 1 GSM port, or 1 CDMA port
no future licensing fees
Strongest-possible security protection using SRTP,TLS,and httpS
Energy Saving,Emberdded system with low power consumption for your green office
Flexible dial plan and Manipulation Rule

2.Voice Processing:
Protocol: SIP(RFC3261),IAX2
Transport: UDP, TCP, TLS, SRTP
DTMF Mode: RFC2833, SIP INFO, In-band
Voice Codecs: G.711 (alaw/ulaw),G.722,G.726,G.726aal2,G.729A,
GSM,ADPCM,Speex,ilbc,H263,H264
Echo Cancellation: ITU-T G.168 LEC

3exportimescheck****work Features:
Network Protocol: UDP, TCP, TFTP, http, SSH,RTP,SRTP,ARP,NTP
NAT Traversal: Static NAT, STUN
http/httpS web server
Digest authentication using MD5
Static Route
OpenVPN
VLAN
QoS/ToS
DDNS

4.Maintain & Upgrade:
Web based configuration
Configure backup/restore
Firmware upgrade by Upload /TFTP
Web login password modify
Blacklist
Packet Capture
IVR Customization
Text to Wav
Call Detail Record (CDR)
System Logs
SMTP
Factory reset,Reboot
Ping

5.Interface:
4 FXO ports,or 4 FXS ports, or 1 GSM ports, 1 CDMA port
Single or dual 10/100Mbps RJ45 Ethernet port(s)
Peripheral Ports: USB(reserved)
LED indicators:POWER,Run,Network,PSTN Line
Reset button

6.Physical Properties:
Power Supply: DC 12V, 1.0A (Input:AC100-240V,50-60Hz)
Power Consumption:10W
Temperature(Operation): 0 ℃ ~50 ℃ (Storage): -20 ℃ ~80 ℃
Operation Humidity: 10%-90% No Condensation
Dimension(W/D/H): 185*152*45mm
