Voip ippbx with 4 analog ports +1GSM+1FXS+1FXO modules sale

FOB Reference Price / Min.Order Quantity

Processing Time:10

Packaging Details: Single item Single package size: 24X21X11 cm Single gross weight: 1.5 KG

Port: Xiamen

Payment Terms: , ,

Product Details Company Profile

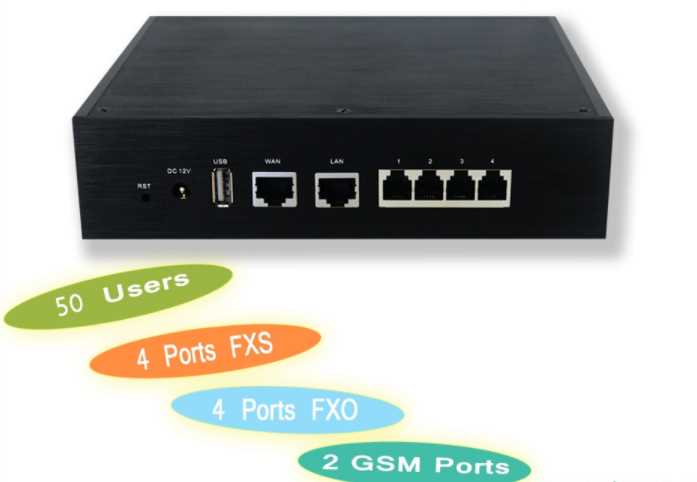

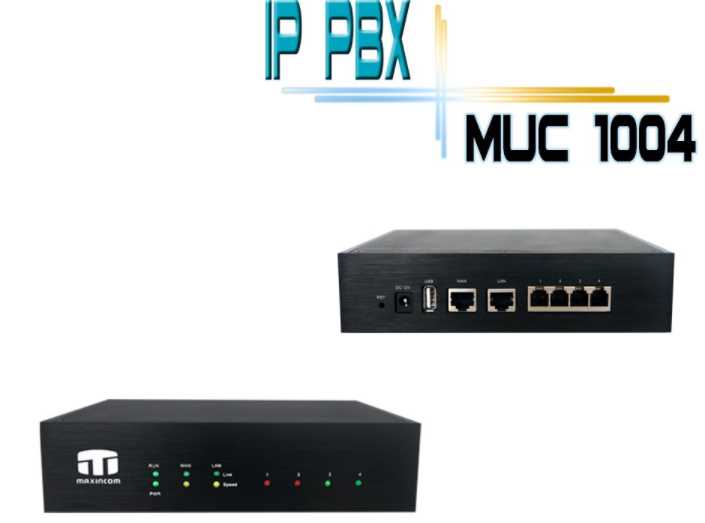

Voip ippbx with 4 analog ports +1GSM+1FXS+1FXO modules

Selling Units:
Single item
Single package size:
24X21X11 cm
Single gross weight:
1.5 KG
Package Type:
standard carton packing
Lead Time :
Quantity(Piece) 1 - 30 >30
Est. Time(day) 10 To be negotiated

Key Benefits:

Customizable combination of FXO, FXS, GSM, modules
Easy to manage via web-based configuration interface
Deliver enterprise-grade communication features and functionality to SMBs
Perfect interoperability with a wide range IP Phone
4 FXO ports,or 4 FXS ports, or 2 GSM ports
no future licensing fees
Stongest-possible security protection using SRTP,TLS,and httpS
Energy Saving,Emberdded system with low power consumption for your green office
Flexible dial plan and Manipulation Rules

Faxs
T.30,T.38 Faxes
Fax to Email
Incoming fax tone detection

System Capacity
50 IP Phone users
15 concurrent calls
256Mb Onboard RAM
512Mb Onboard Flash

Voice Processing
Protocol: SIP(RFC3261),IAX2
Transport: UDP, TCP, TLS, SRTP
DTMF Mode: RFC2833, SIP INFO, In-band
Voice Codecs: G.711 (alaw/ulaw), G.722,G.726, G.726aal2,G.729A, GSM, ADPCM, Speex, ilbc,H263,H264
Echo Cancellation: ITU-T G.168 LEC

PBX Features
Call forward
Call transfer
Call waiting
Call back
Call routing
Call ID
DND
DISA
Conference
Queue
Ring group
Paging/Intercom
Voicemail
Voicemail to Email
IVR
CDR
Blacklist
Music on Hold
Office hours
Auto Provisionin

Interface
4 FXO ports,or 4 FXS ports, or 2 GSM ports
Single or dual 10/100Mbps RJ45 Ethernet port(s)
Peripheral Ports: USB(reserved)
LED indicators:POWER,Run,Network,PSTN Line
Reset button
Network Features
Network Protocol: UDP, TCP, TFTP, http, SSH,RTP,SRTP,ARP,NTP
NAT Traversal: Static NAT, STU
http/httpS web server
Digest authentication using MD5
Static Route
OpenVPN
VLAN
QoS/ToS
DDNS
Firewall
Physical Properties
Power Supply: DC 12V, 1.0A
(Input:AC100-240V,50-60Hz)
Power Consumption:10W
Temperature(Operation): 0 ℃ ~50 ℃
(Storage): -20 ℃ ~80 ℃
Operation Humidity: 10%-90% No
Condensation
Dimension(W/D/H): 185*152*45mm
