ip pabx, gsm pbx system, asterisk pbx sale

FOB Reference Price / Min.Order Quantity

USD 1.00-295.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time:Shipped in 3 days after payment

Packaging Details: asterisk pbx With carton box carefully packing

Port: Xiamen

Payment Terms: , , ,

Product Details Company Profile

ip pabx/gsm pbx system/asterisk pbx
MUC1004 is a standalone embedded hybrid PBX for small businesses and remote branch offices of larger organizations. It is designed to bring enterprise-grade Unified Communications and Security Protection in an easy-to-manage fashion.1. Key Benefits

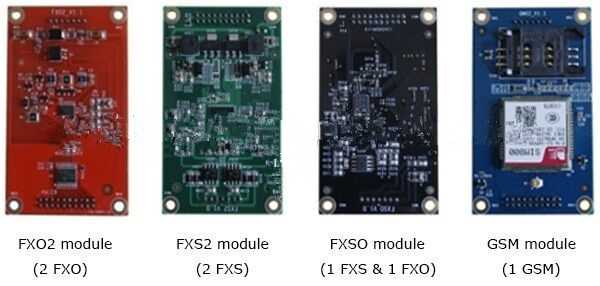

1. Customizable combination of FXO, FSX, GSM, 3G modules
Easy to manage via web-based configuration interface
Deliver enterprise-grade communication features and functionality to SMBs
Perfect interoperability with a wide range IP Phone
No future licensing fees

2. Voice Processing
Protocol: SIP(RFC3261),IAX2
Transports: UDP, TCP, TLS, SRTP
DTMF Mode: RFC2833, SIP INFO, In-band
Voice Codels: G.711, G.722, G.726

3. PBX Features
Call forward / transfer / waiting / back / routing / ID
DND / DISA / Conference / Queue / Ring group

4. Interface
4 FXO ports,or 4 FXS ports, or 1 GSM ports, or 1 CDMA ports
Single or dual 10/100Mbps RJ45 Ethernet port(s)
Peripheral Ports: USB(reserved)
LED indicators:POWER,Run,Network,PSTN Line
Reset button

5.Physical Properties
Dimension(W/D/H): 185/152/45mm
Power Supply: DC 12V, 1.0A
Input:AC100-240V,50-60Hz
Power Consumption:10W
