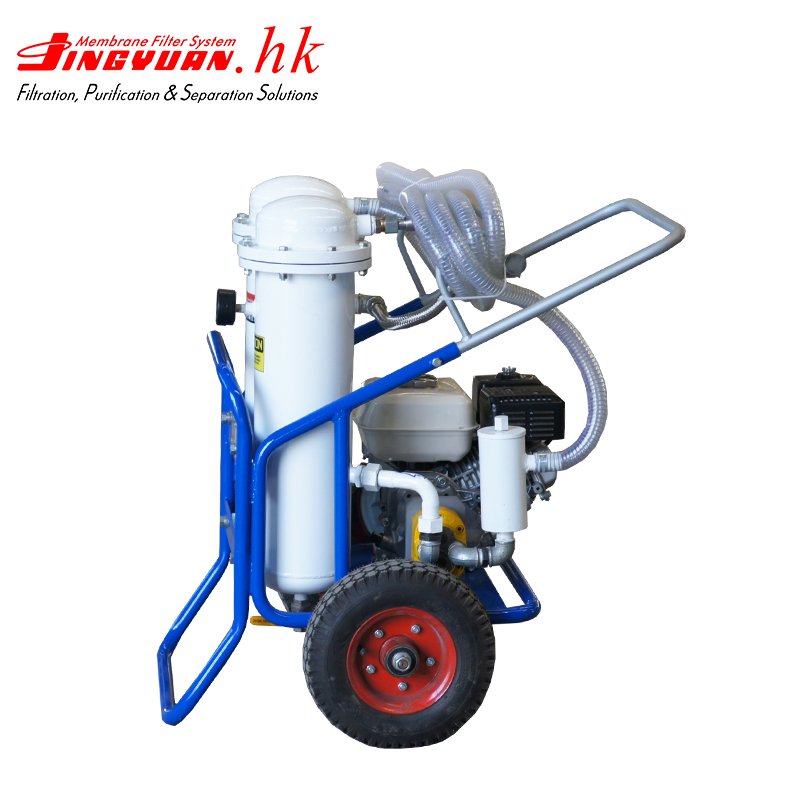

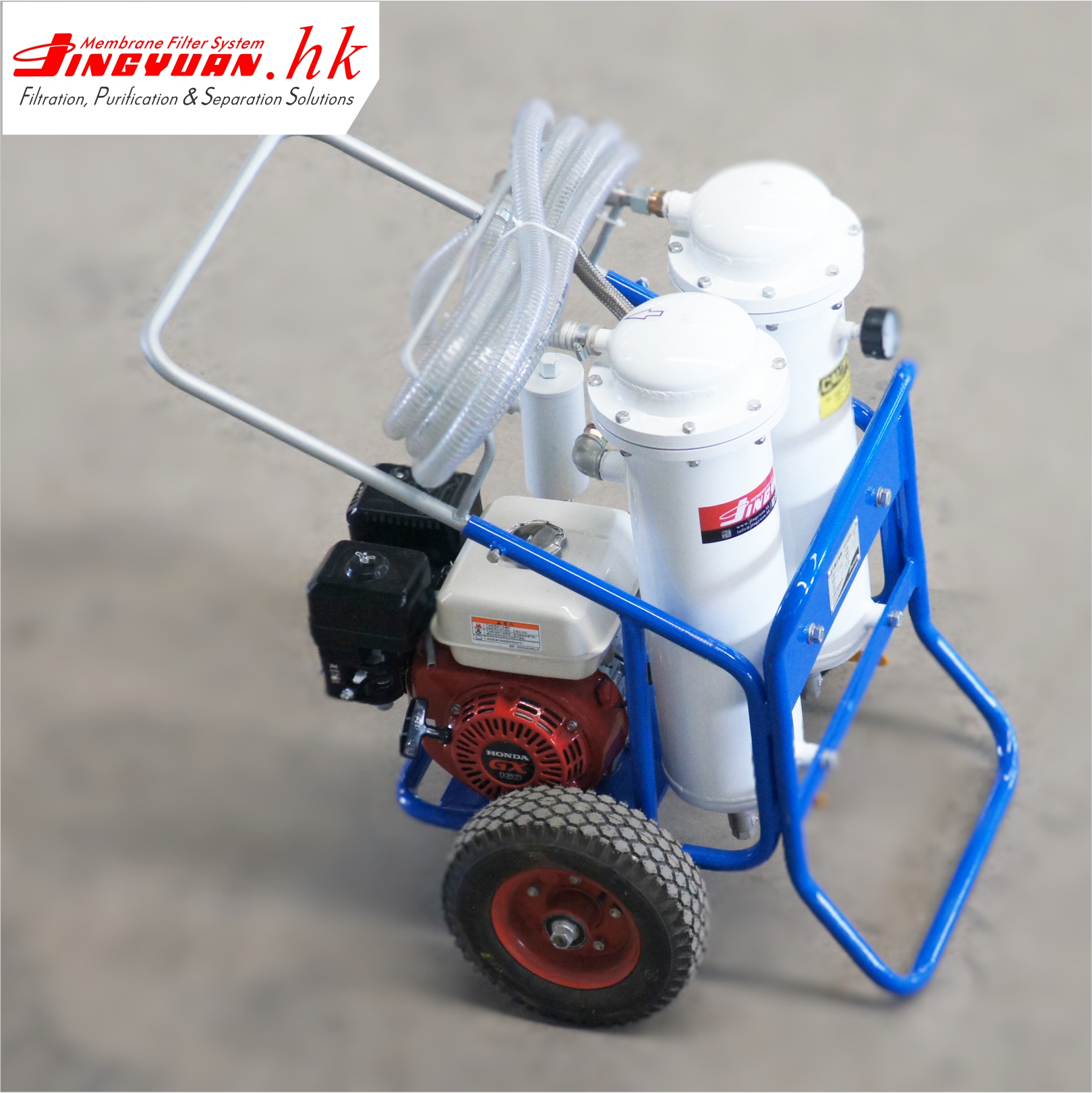

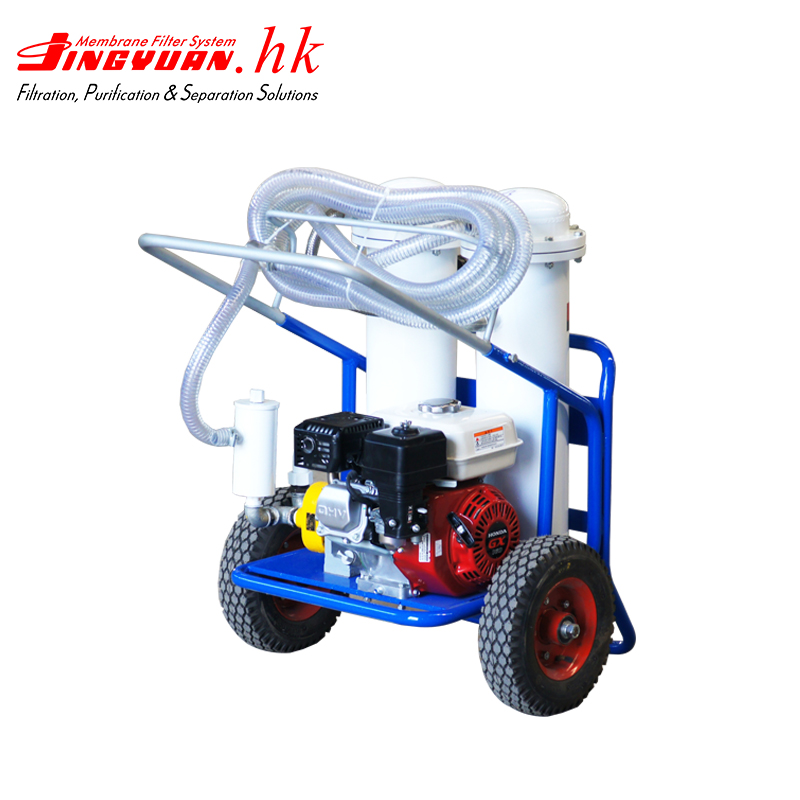

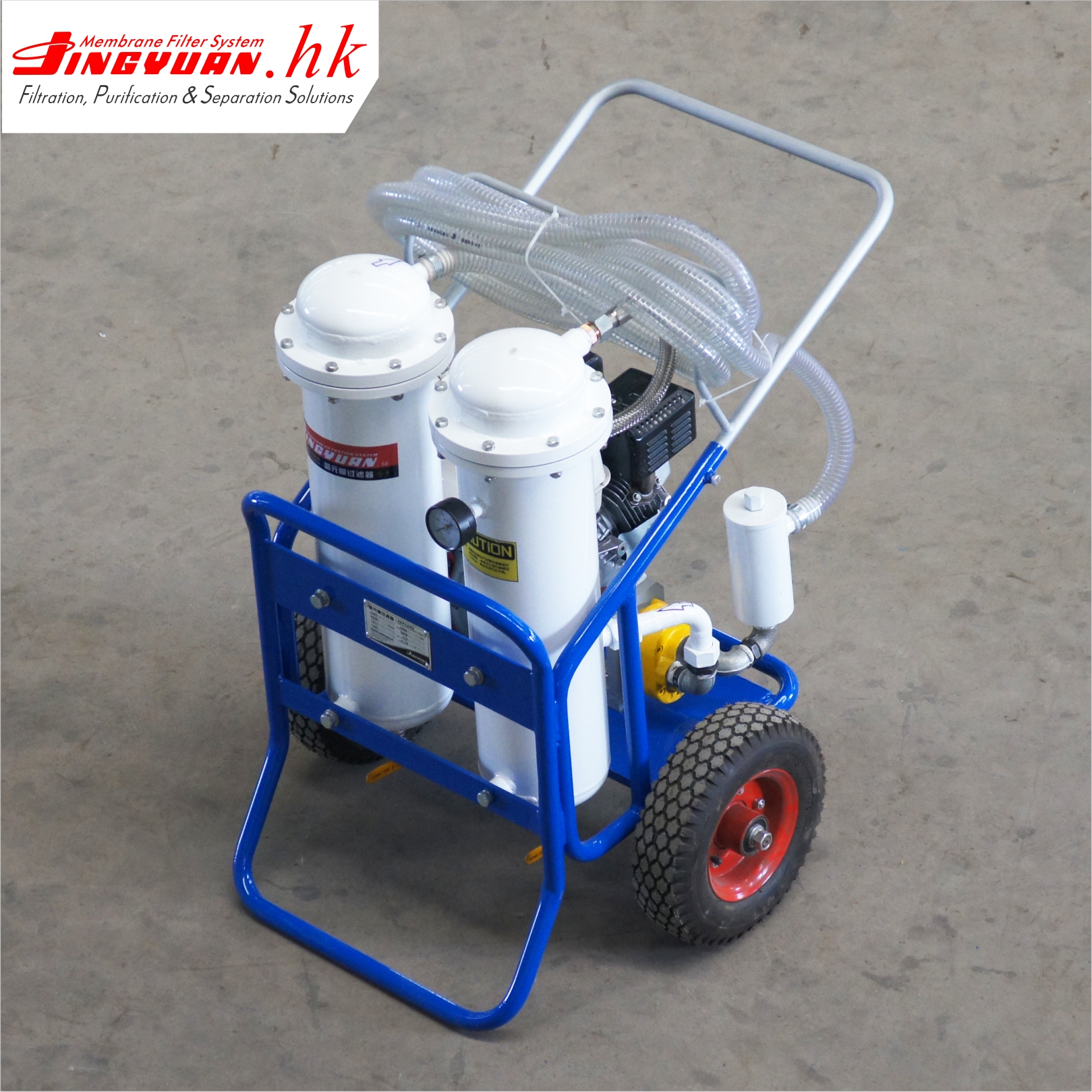

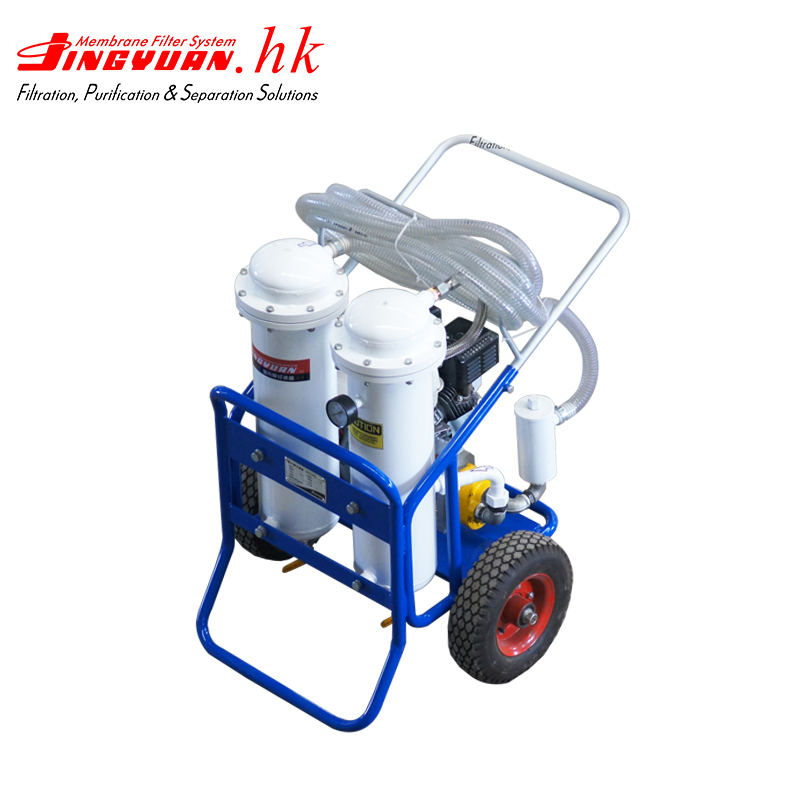

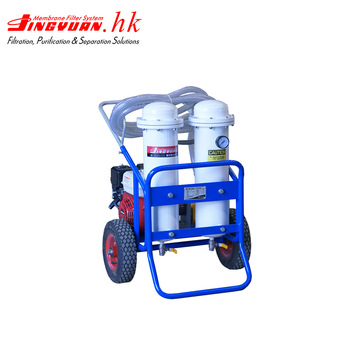

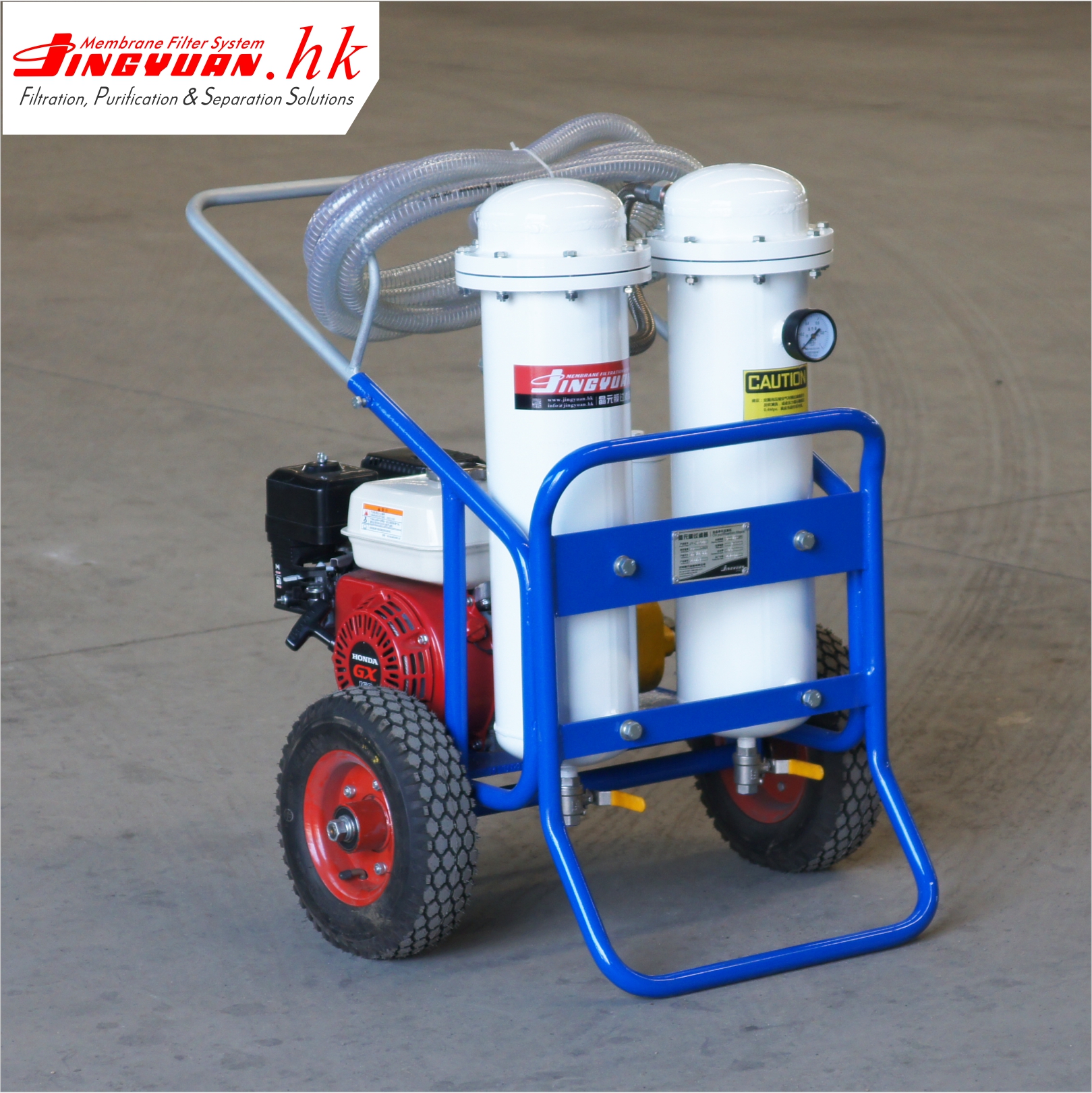

JY-E50H is a micro-filtration system to remove contaminant in hydraulic and lubrication system. It is a new type portable equipment which is equipped with HONDA engine gear pump unit. Oil will be purified when passes through polymer membrane filter elements, and the precision can be adjusted from 2~30μm according to your needs. JY-E50H is also used to filter the new oil, and pump the oil from oil storage tank to systematic oil tank. Purify the oil being used, and improve the performance of oil filtration. The filter can be used in the refined purification for hydraulic oil, gear oil and lubricating oil.







Technical Index:



Model Type: JY-E50H



Flow Rate: 30~40 L/min (Depends on the viscosity and temperature of oil)



Filtration Precision: 2~25μm （According to system requirements）



Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )



Working Pressure: 0.2~0.35 Mpa



Working Temperature:-10~70℃



Suitable Oil: Hydraulic oil, engine oil, gear oil ( Petroleum or mineral base oil)



Power Supply: HONDA GX160 5.5HP



Measurement: 550*560*920mm



Weight:77Kg











For more information, please contact 139 0405 2025 or 024-86530244



Jingyuan Membrane Filtration —— Different from traditional filtration and purification.
