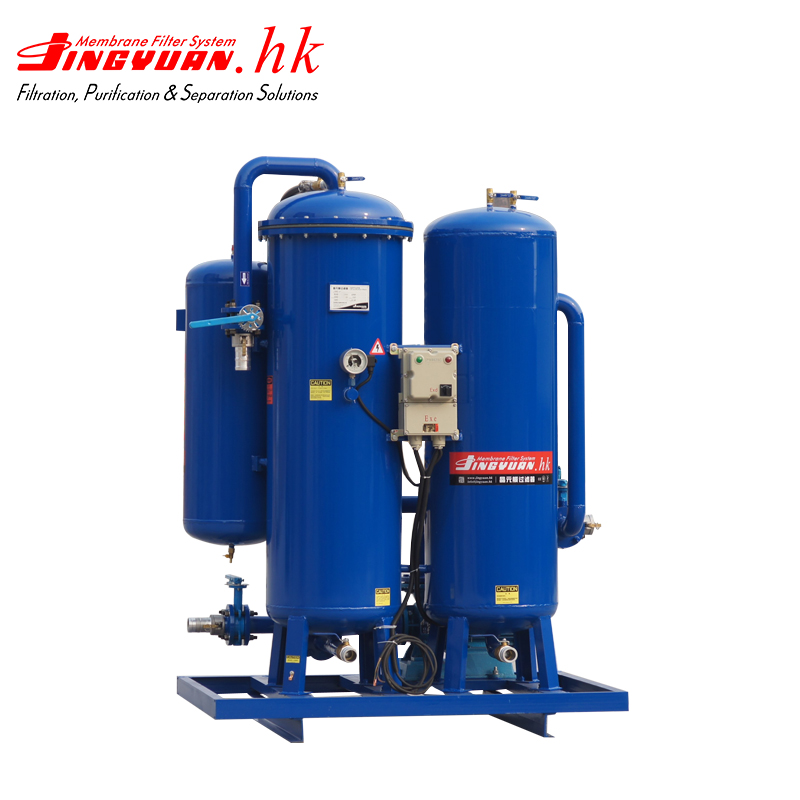

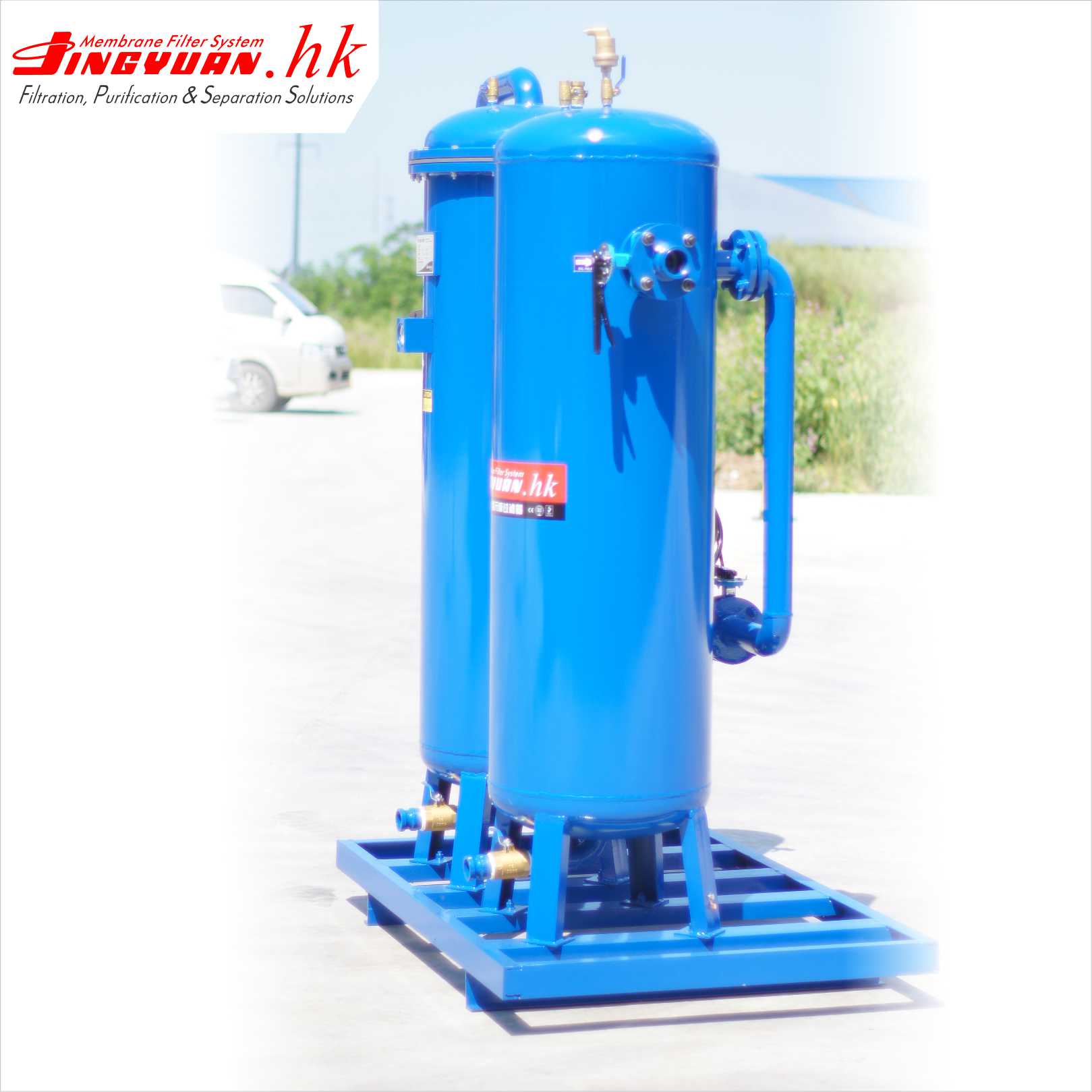

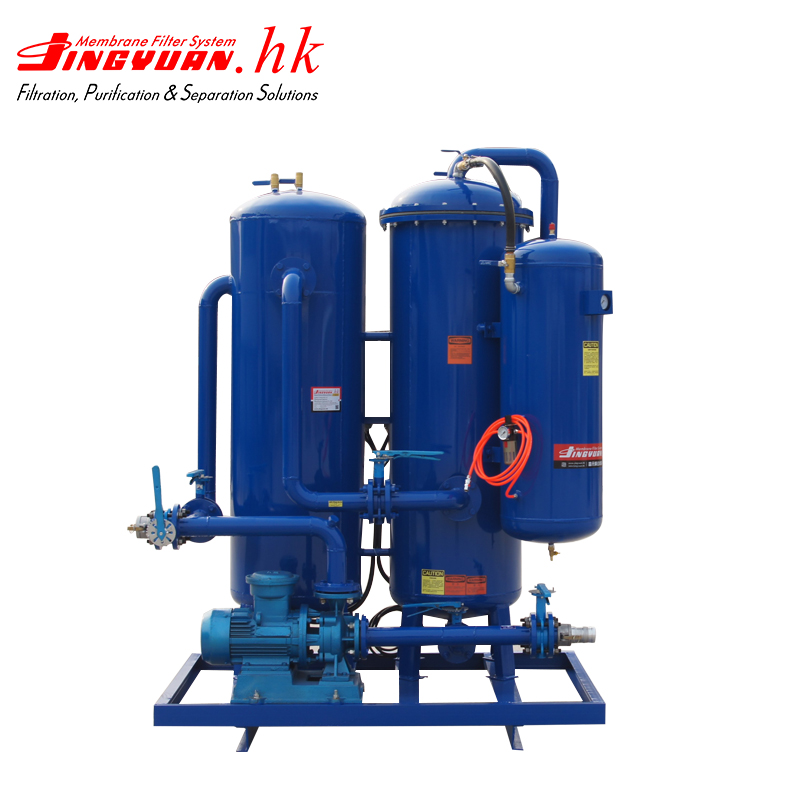

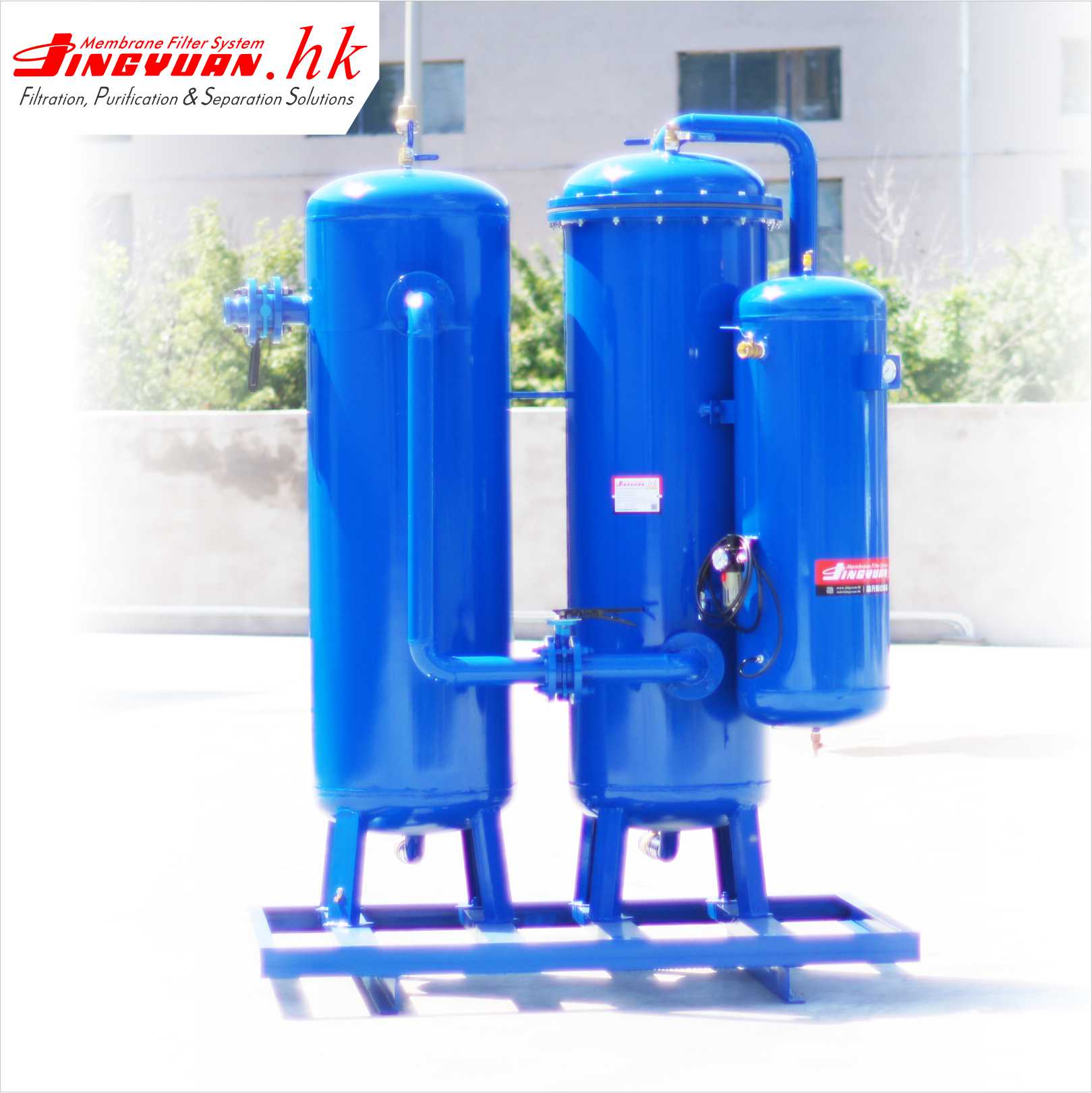

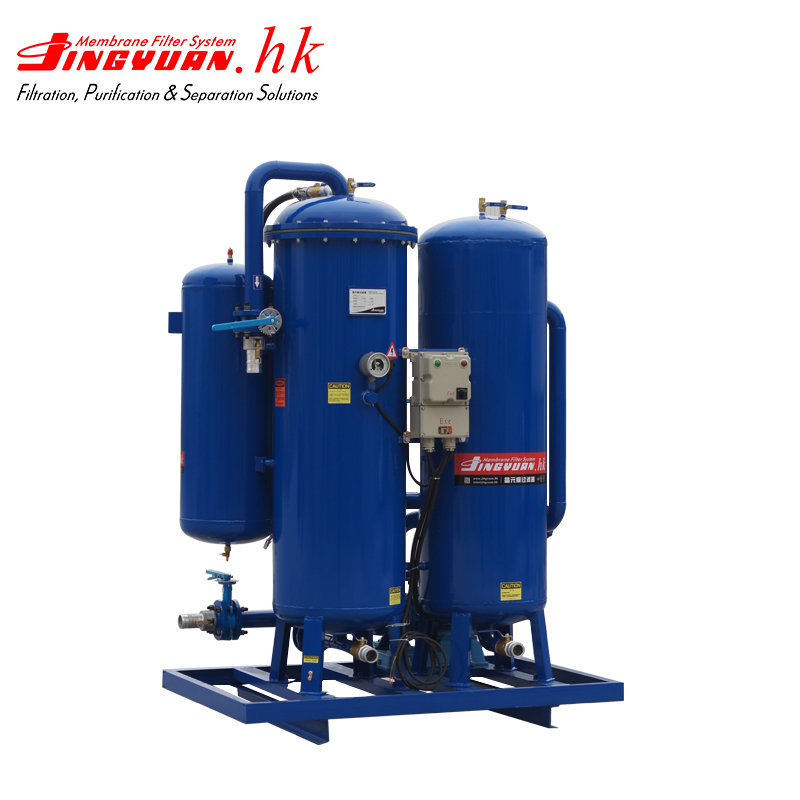

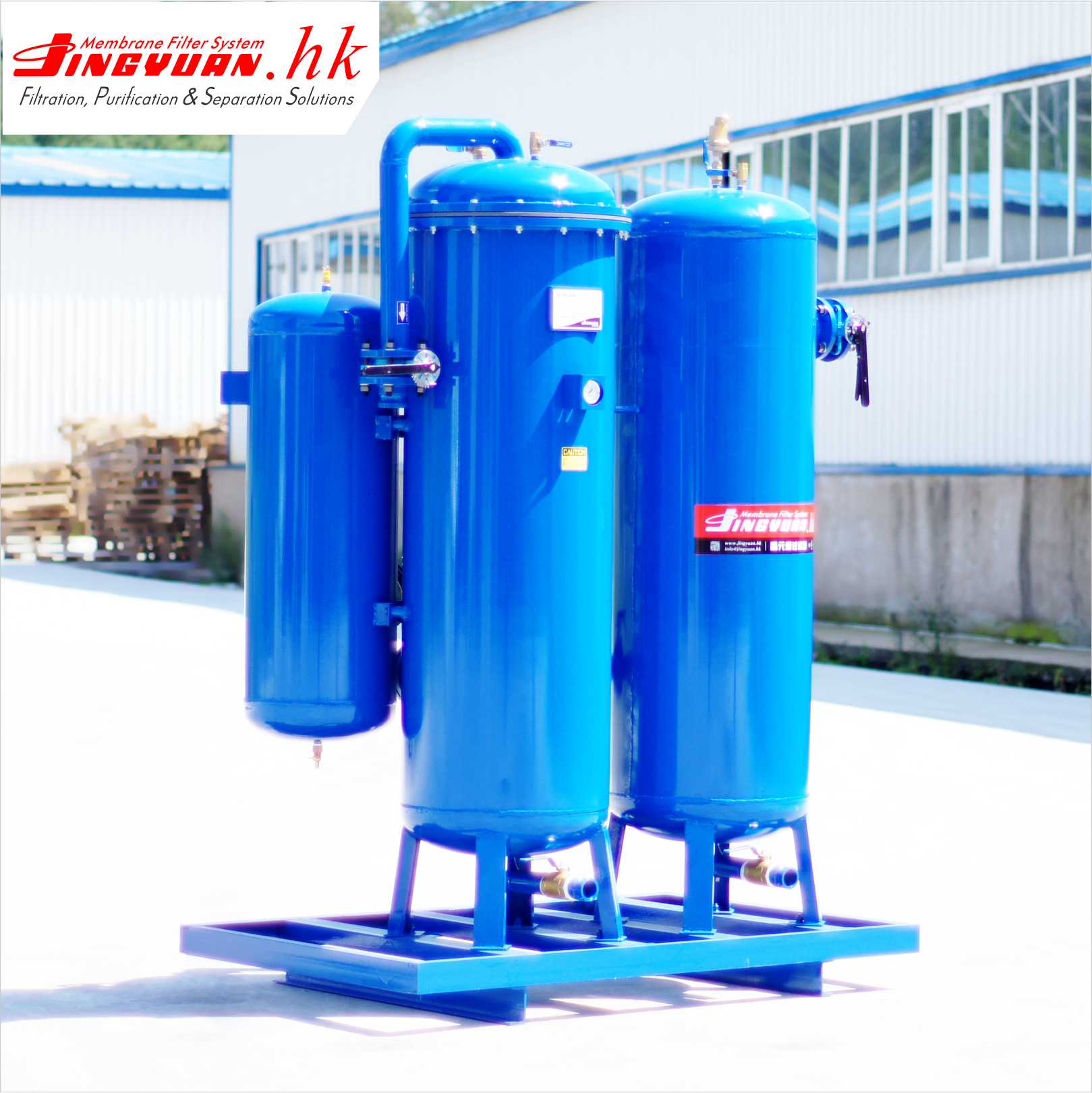

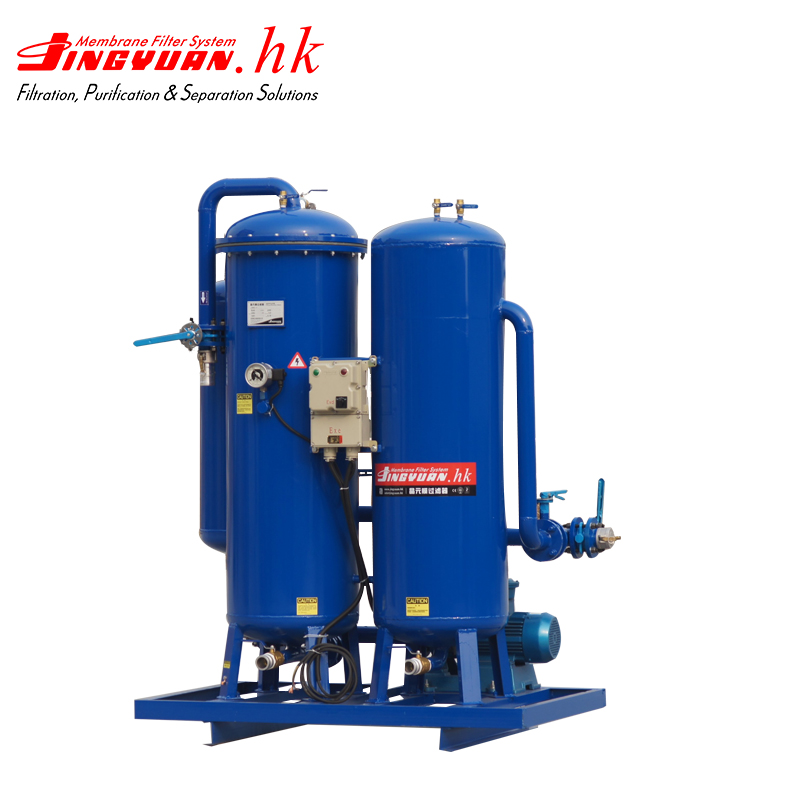

High Performacne Diesel Filter

FOB Reference Price / Min.Order Quantity

USD 8000.00-9000.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:Within 7 Days

Packaging Details: Plywood Case

Port: Dalian Port

Payment Terms: , , , , , , ,

Product Details Company Profile

Specially designed for diesel purification.According to the characteristics of light diesel, we adopt high performance membrane filtration technology to refine the diesel,as well as to remove the impurities, colloid and water from oil. As a result, the quality level of diesel can be upgraded.

Technical Index:

Model Type: JY-VX20

Flow Rate: 7~10 tons/h (Depends on the quality of oil)

Filtration Precision: 2,5,10,15,20,25μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.35 Mpa

Pre-filtration: Y (One Level)

Back-blow: With back-blow subassembly.

Pipeline Diameter: DN65(2.5′)

Suitable Oil: Light diesel, aviation kerosene

Measurement: 1700*1100*2350mm

Water Separation/ Filtration Effect:

By Jingyuan environmental protection and high-tech diesel purification filters,the impurities, colloid and free water in diesel can be separated at once, as well as decolorizing white soil, decolorizing sand and other particle impurities. At the same time, the membrane elements can be used repeatedly after washed.( Not suitable for emulsified diesel)

Application:

Be suitable for oil depot,small diesel refinery, concrete mixing plant,transportation company owned oil storage tank, railway station oil depot, gas station, engineering machinery owned oil storage tank, mining machinery owned oil storage tank,construction site diesel supply station, large scale generator unit,oil loading filtration and oil unloading filtration and so on.

Efficiency of Clear Diesel:

Clean diesel makes the rate of engine failure decrease significantly, at the same time, efficiency will be improved, maintenance costs will be cut down, fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~ 3 times. It is of great significant for environmental protection, haze governance and energy saving.

Environmental Protection Trend:

The most stringent environmental emission standard has been carried out from 2017, the demand for diesel quality and filtration industry becomes higher.The old filtration method which could damage the environment will not be allowed,and it is imperative to use clean diesel. In the future, environmental protection and high-tech filtration method will lead the market, and JY-VX Series Diesel Purification Filters are the representative among the market.

About the Problem of Flow Decreased:

There are many reasons could lead to flow decreased, such as poor oil quality and non-maintenance.

So it is necessary to maintain the filters termly.

For more information, please contact 139 0405 2025 or 024-86530244

Jingyuan Membrane Filtration —— Different from traditional filtration and purification.
