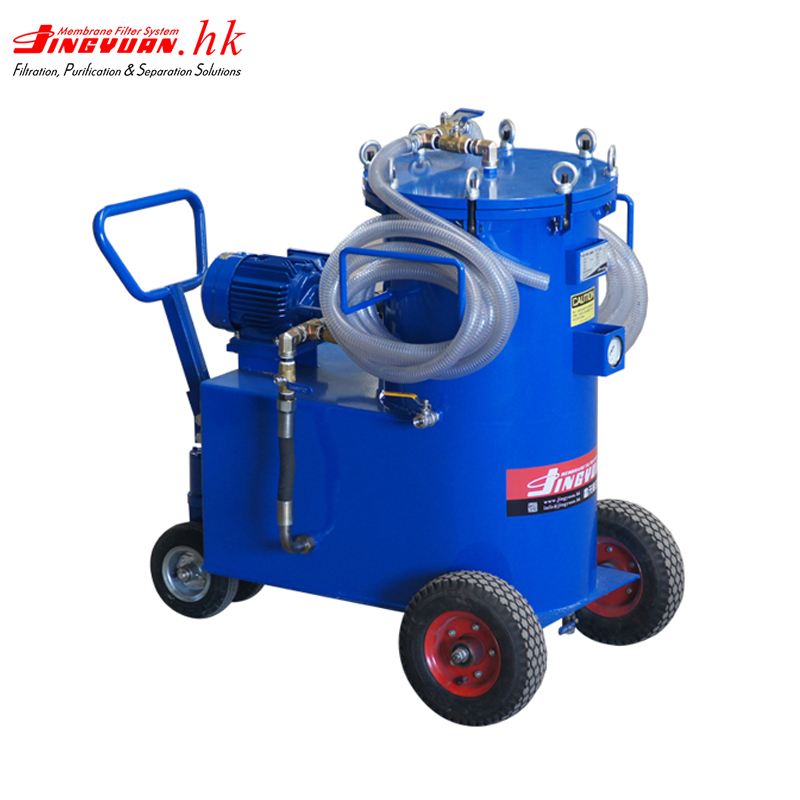

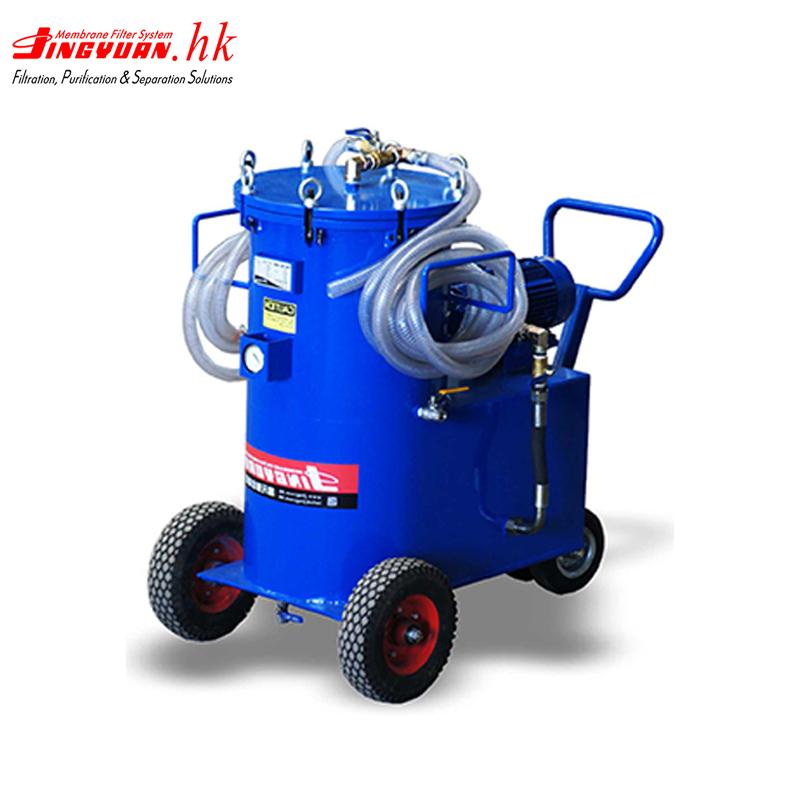

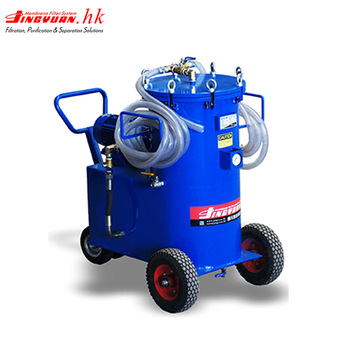

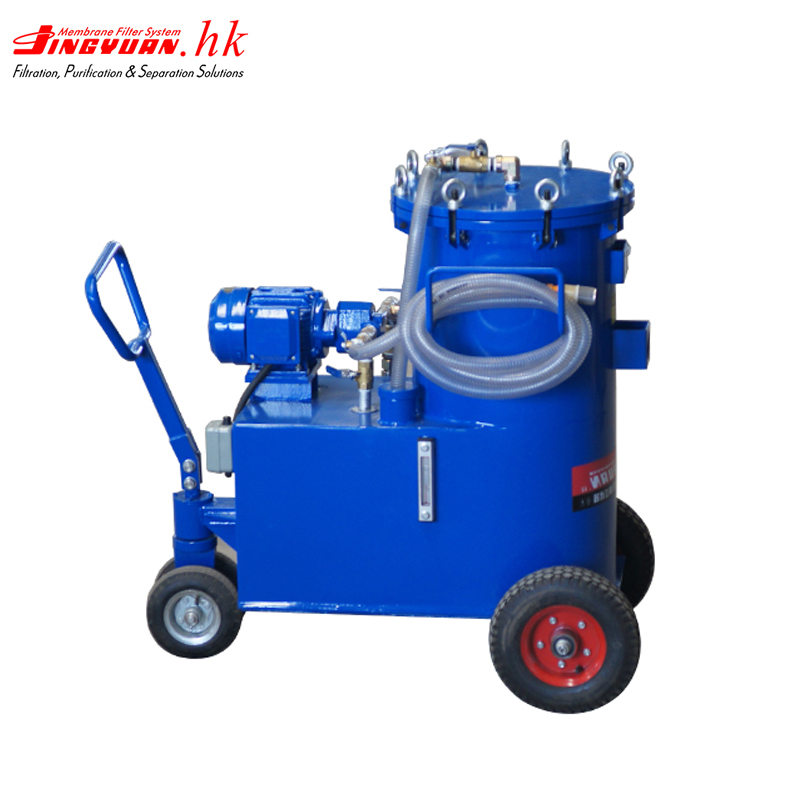

Lube Oil Storage Tank Filtration Trolley

FOB Reference Price / Min.Order Quantity

USD 2800.00-2900.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:Within 3 Days

Packaging Details: Plywood Case

Port: Dalian Port

Payment Terms: , , , , , , ,

Product Details Company Profile

Technical Index:

Model Type: JY-H180

Flow Rate: 50~80 L/min (Depends on the viscosity and temperature of oil)

Filtration Precision: 2~20μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.35 Mpa

Working Temperature:-10~70℃

Suitable Oil: Hydraulic oil, engine oil( Petroleum or mineral base oil)

Tank Capacity:60L

Voltage: 380V (Continuously work for long time)

Measurement: 1200*720*890mm

Weight:160Kg

In order to make the refueling and filtration more convenient, JY-H180 Lube Oil Filtration and Refuel Trolley is equipped with a 60L oil tank. It adopts the membrane elements which were researched by Jingyuan, and can control the contamination level of oil effectively, at the same time to remove the impurity particles, colloid and water from oil.

Its application areas includes hydraulic oil, lube oil, engine oil, gear oil and so on

For more information, please contact 139 0405 2025 or 024-86530244

Jingyuan Membrane Filtration —— Different from traditional filtration and purification.
