Features:

Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.

Plunger:the 4th generation stainless alloy(PH-type).

Check valve:the 4th generation stainless alloy (GrMoFr),abrade-resisting and impact-resisting.

Pump block: stainless steel.

Plunger sealing:X4310 and PP spacer with heat-proof reaching 150°C.

Homogenizing valve: the 3rd special stainless alloy;

All the above-mentioned material are according with sanitary rules and suitable for CIP cleaning.

Specification:

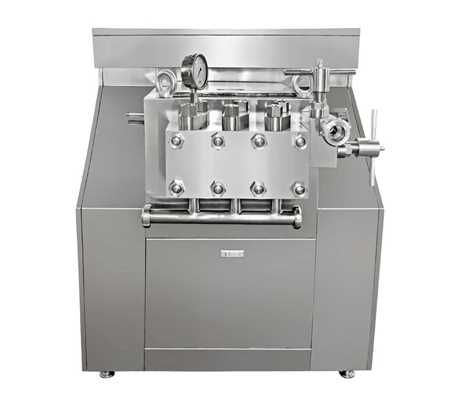

Model No.	SRH2000-40/45
Rated volume of flow: L/H	≥2000L/h
Maximum working pressure	40/45MPa
Rated working pressure	≤32MPa
Feed pressure	0.2-0.3MPa
Motor power : KW	30KW
CIP	100°C/≤10000CP
size	1.6*1.1*1.6m
Weight	2500Kg
Piston	3
Shell material	Stainless steel
Material of sealing ring	X4310(Hemp fiber +Teflon)
Pressure gauge	diaphragm type
