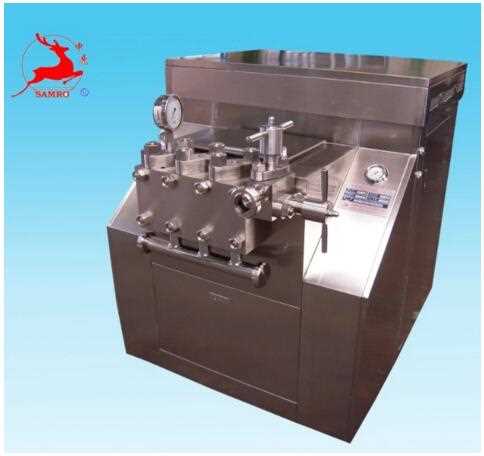

High pressure homogenizer juice homogenizer supplier

FOB Reference Price / Min.Order Quantity

USD 1500.00-15000.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

A: Power End
1.1 Driving: two-stage gear box;first stage, the triangle belt drive, second stage, crank gear symmetrical transmission; Special alloy bearing, bilateral Rolling bearing, horizontal smooth, low noise, mechanical efficiency is increased by about 10% on average.
1.2 Lubricating: Automatic splash lubrication and oil pump lubrication, safe and reliable.
B: Liquid End
1.1 Pump: three way type, gland radial self sealing, durable, no leakage
1.2 Plunge: 3 plunge, durable, safe, easy dis-assembly
1.3 Checking valve: Poppet valve in and out each 3 sets, total 6 sets, Durable, reliable, make sure flow is over rated flow.
1.4 Pressure control: one diaphragm gauge assembly, control high pressure and low pressure.
3. Other specification:
Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.
Plunger:High hardness stainless alloy(PH-type)
Check valve:High hardness stainless alloy (GrMoFr), abrade-resisting and impact-resisting
Pump block: SUS321.
Sealing: packing seal, with heat-proof reaching 100℃
