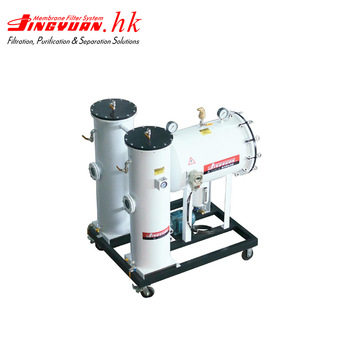

Specially designed for industrial oil purification, especially for new oil filtration. In order to improve the performance of oil, JY-G200 pumps the oil from storage tank to hydraulic reservoir, and then purify it. JY-G200 is not only can refine the hydraulic oil, gear oil and lube oil, but also can break the emulsified structure and remove trace water content in oil.



Technical Index:

Model Type: JY-G200

Flow Rate: 40 L/min (Depends on the viscosity and temperature of oil)

Filtration Precision: 2~25μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.35 Mpa

Working Temperature:-10~70℃

Suitable Oil: Hydraulic oil, engine oil, gear oil, steam turbine oil,transformer oil( Petroleum or mineral base oil)

Voltage: 380V (Continuously work for long time)

Measurement: 1160*450*1000mm

Weight:148Kg



Application:

·Steam turbine oil and transformer oil purification and water removal

·Hydraulic lubricating system purification and water removal

·Oil online purification and water removal





For more information, please contact 139 0405 2025 or 024-86530244
