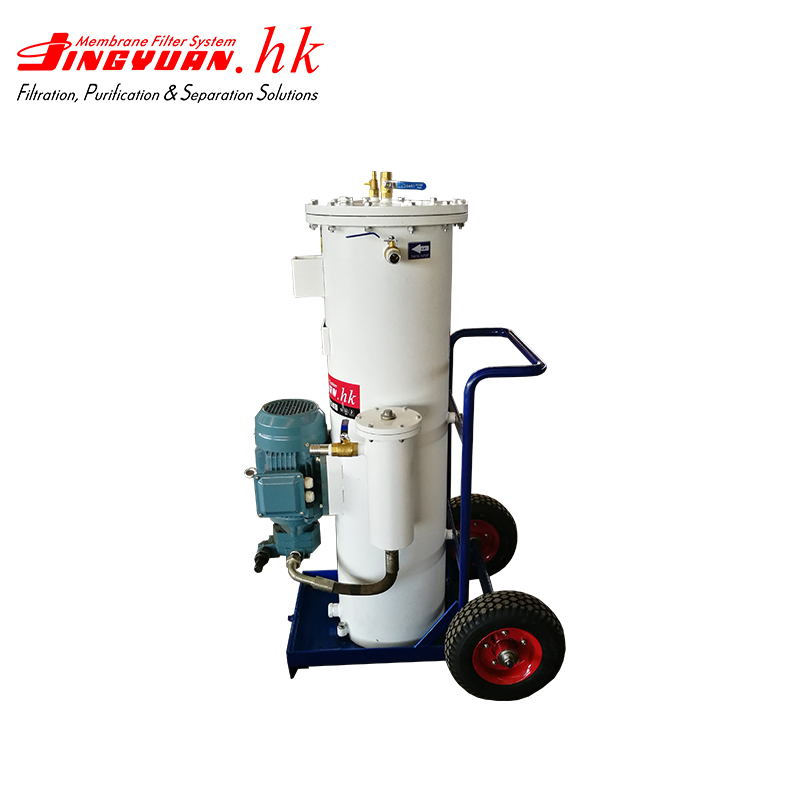

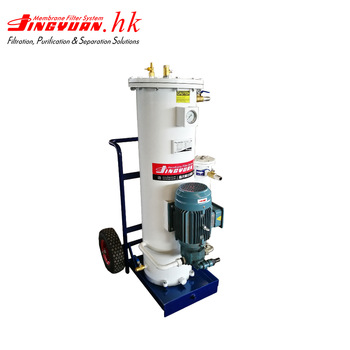

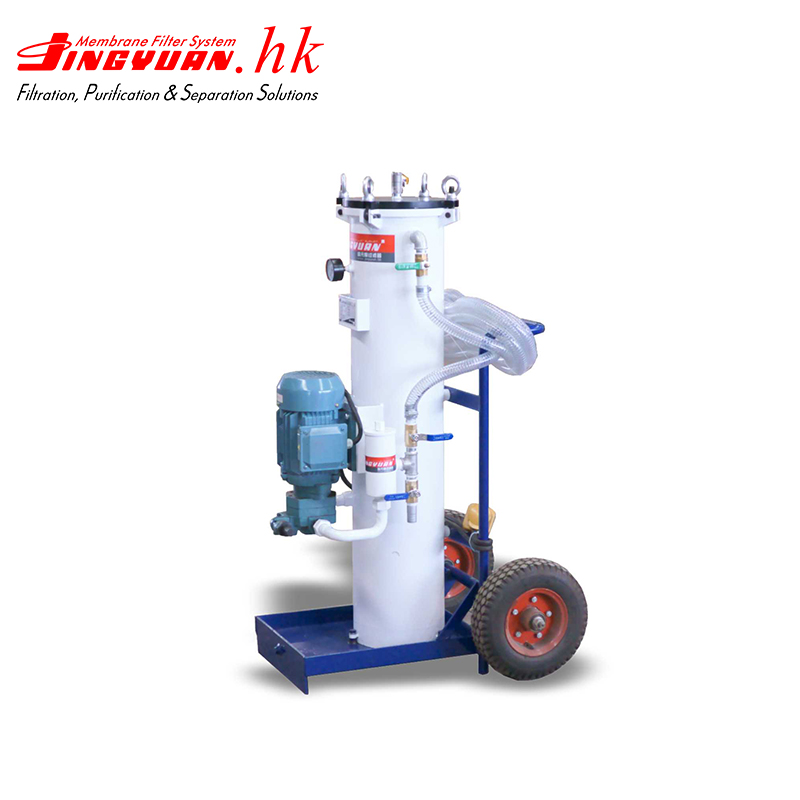

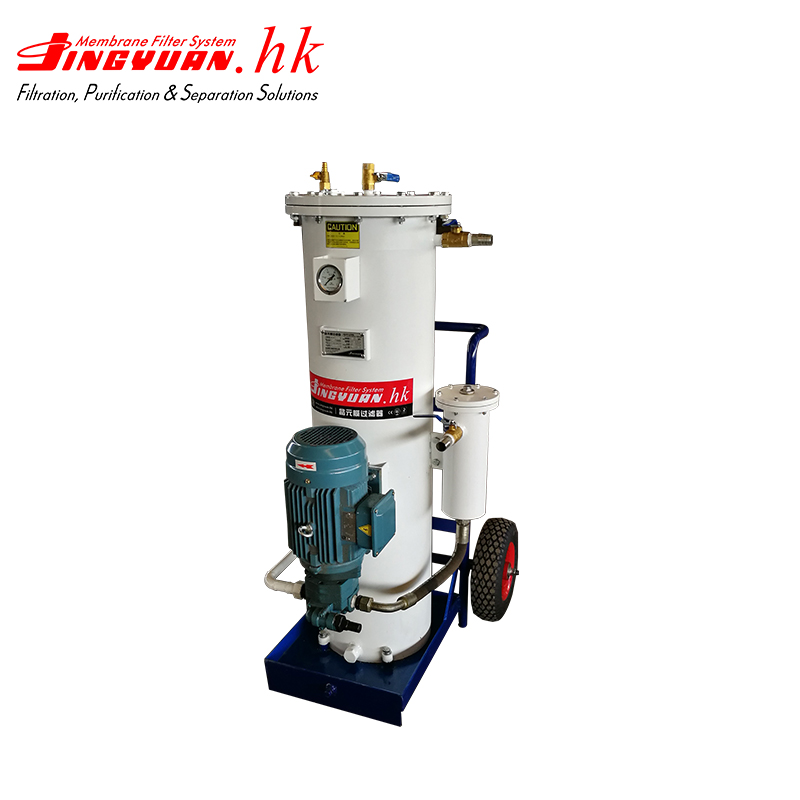

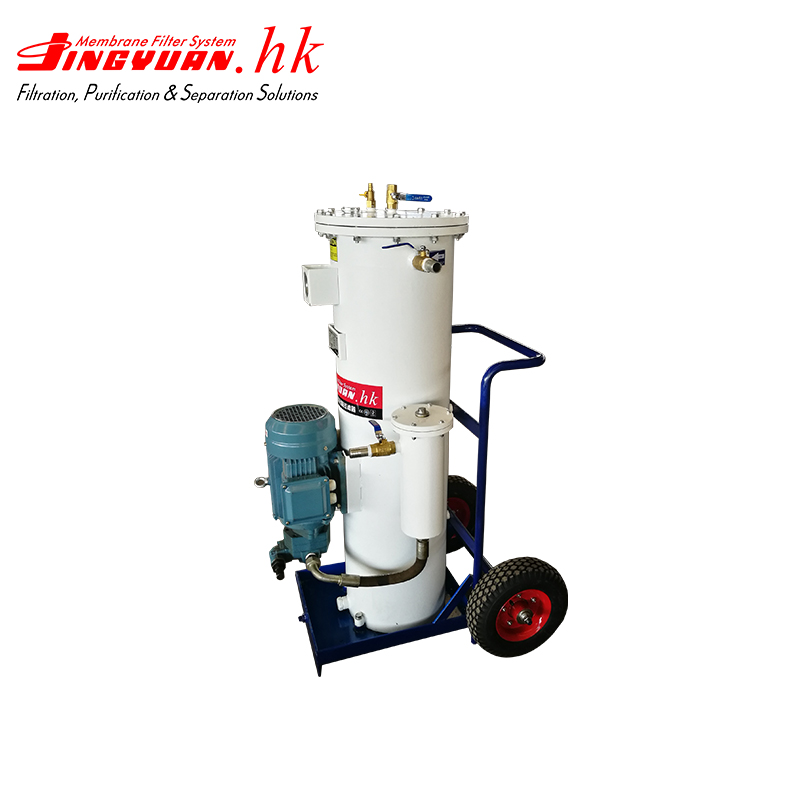

Specially designed for industrial oil purification, especially for new oil filtration. In order to improve the performance of oil, JY-G100 pumps the oil from storage tank to hydraulic reservoir, and then purify it. JY-G100 is suitable for hydraulic oil, gear oil and lube oil.
Technical Index:
Model Type: JY-G100
Flow Rate: 40~60 L/min (Depends on the viscosity and temperature of oil)
Filtration Precision: 2~25μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.35 Mpa
Working Temperature:-10~70℃
Suitable Oil: Hydraulic oil, engine oil, gear oil ( Petroleum or mineral base oil)
Viscosity: 320# Gear oil
Voltage: 380V (Continuously work for long time)
Measurement: 800*750*1350mm
Weight:115Kg
For more information, please contact 139 0405 2025 or 024-86530244
Jingyuan Membrane Filtration —— Different from traditional filtration and purification.
