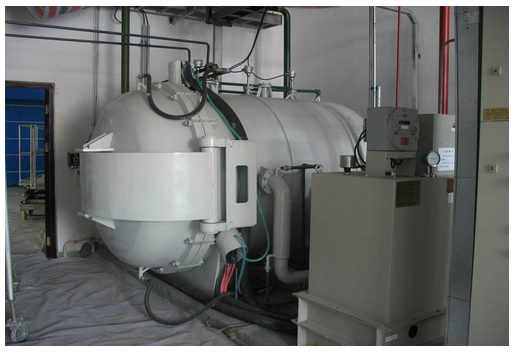

1600C 7X10-3Pa water cooling high vacuum furnace laboratory

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Quick Details

Condition:	New	Type:	Resistance Furnace	Usage:	Melting Furnace
Place of Origin:	China (Mainland)	Brand Name:	weite	Model Number:	XD-1600VF
Voltage:	380V	Power(W):	15kw-45kw	Dimension(LWH):	950x1150x800
Weight:	700KG-1500KG	Certification:	CE Certificate	Warranty:	1year
After-sales Service Provided:	Engineers available to service machinery overseas	function:	sintering, brazing, dewaxing	cooling system:	water cooling, air cooling
vacuum pump:	diffusion pump, Rotary pump	Temperature controller:	51 segments programmabl...	Heating elements:	MoSi2 heating elements
Max.vacuum:	7x10-3Pa

Packaging & Delivery

Packaging Detail:	Wooden box
Delivery Detail:	50days

Specifications

1.Vacuum: 7x10-3Pa
2.water cooling
3.atmosphere: nitrogen, argon and inert gas
4,51 segmens programmable
5,Max temp:1600C

SPECIFICATION

Furnace construction

• BR-1700 type high purity ceramic fibre insulation;
• Cylinder vacuum vessel to resist barometric pressure
• Perfect sealing furnace door and easy open

Chamber Size (list of standard sizes in stock; other sizes customized )

100x100x100mm; 120x120x130mm; 150x150x150mm; 150x150x200mm; 200x200x200mm; 200x200x300mm; 300x300x300mm; 300x300x400mm

Power

1KW~12KW

Voltage

AC 110V or AC 220V 50/60 Hz or 380V 3 phases(please tell us when your place order.)

Max. Temperature

1600 °C (< 2 hours)

Continuous work temp.

1500°C

Max. Heating Rate

15 °C /min

Temperature controller

• PID automatic control and auto-tune function.
• 51 programmable segments for precise control.
• Built in protection for over-heated and broken Thermal couple.
• Larger digital control panel (48 x 96 mm) for easy operation.

acuum system

Double rotary pump + Diffusion pump + multi-vacuum gauge + high vacuum valves + bellows

Max. vacuum

7x10-3 Pa

Temperature Accuracy

+/- 1 °C

Heating Element

MoSi2 heating element

Heating Element

B type

Outer Dimension

Dia300~dia1200mm

Gross weight with package

600Kgs~2500kgs

Accessories (free charge)


1 pair of glove	1 crucible tong	2pcs MoSi2 heating element

Software to control furnace through computer
(if you need, additional order)

	• Communication module installed in temperature controller
	• software –TCS(Temperature Control System, available for Win2003, Win XP)
	• One USB cable, one RS485 Serial interface.

Warranty

One year limited warranty (Consumable parts such as thermocouple, o-rings and heating elements are not covered by the warranty, please order the replacements at related products below.)

Certificate
