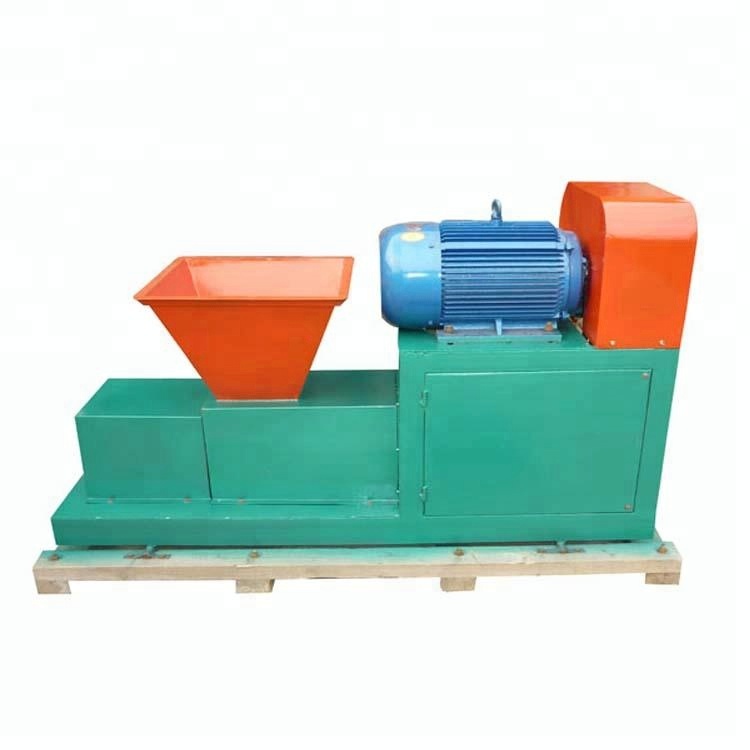

　　wood shavings biomass briquette machine
　　1.Introduction-- wood shavings biomass briquette machine
　　sawdust biomass briquette machine is used to make wood briquettes. Its raw material can be stalk, straw , sawdust, coconut shell, rice hust, rice stalk, tree branch and so on. The final wood briquettes can be used as the fuel of boiler or the material to make charcoal.
　　2.Step of briquette making&requirement--wood shavings biomass briquette machine
　　crushing-----drying------briquettes
　　Moisture:raw material humidity:8-12%
　　diameter of raw material :less than 5mm
　　3.Raw material --wood shavings biomass briquette machine

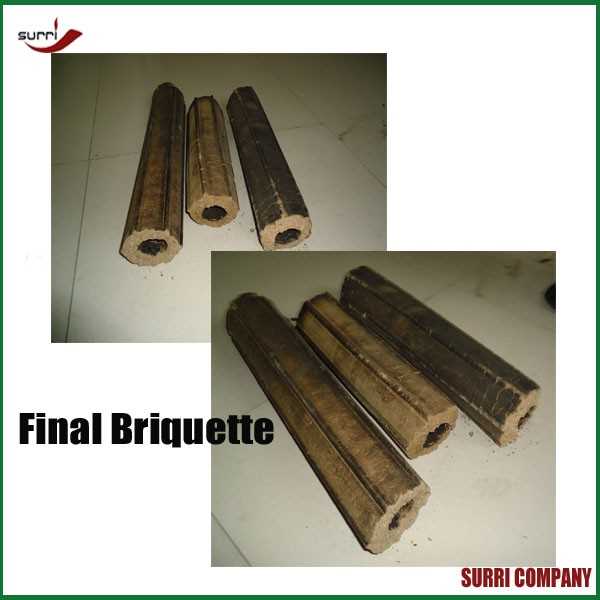

4.final product from wood shavings biomass briquette machine

Technical parameters:

　　5.Production step --wood shavings biomass briquette machine
　　1)fastening bolts, especially in the heating barrel set of three top wire, connecting and electrical power lines.
　　2)check bearing lubrication part.
　　3)check the supply voltage is normal.
　　4)no-load starting running 30 minutes, no card, touch the abnormal phenomenon, can be put into normal production.When the trial revealed abnormalities, should immediately stop, find out the reasons, troubleshooting and then makes no-load operation.
　　5)the temperature regulator adjusted to the required temperature, when the temperature reaches a predetermined temperature before starting, and amount of feed.
　　6)gradually increased feeding rate, until the production of qualified products, produced when the normal 30 minutes, can show trial run is successful, the normal operation of.
　　At the end of 7 to make the hopper feeder with no raw material , and after shutting down the machine immediately reversed for 1 minutes, so that the propeller material would be exit.
　　The machine body must be well grounded!!!
