Top sale wood sawdust small briquette machine

FOB Reference Price / Min.Order Quantity

USD 2500.00-3000.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:10days

Packaging Details: standard wooden case or as your demand

Port: any port

Payment Terms: L/C , T/T , other

Product Details Company Profile

Top sale wood sawdust small briquette machine
1.Introduction-- Top sale wood sawdust small briquette machine
sawdust biomass briquette machine is used to make wood briquettes. Its raw material can be stalk, straw , sawdust, coconut shell, rice hust, rice stalk, tree branch and so on. The final wood briquettes can be used as the fuel of boiler or the material to make charcoal.
2.Step of briquette making&requirement--Top sale wood sawdust small briquette machine
crushing-----drying------briquettes
Moisture:raw material humidity:8-12%
diameter of raw material :less than 5mm
3.Raw material --Top sale wood sawdust small briquette machine

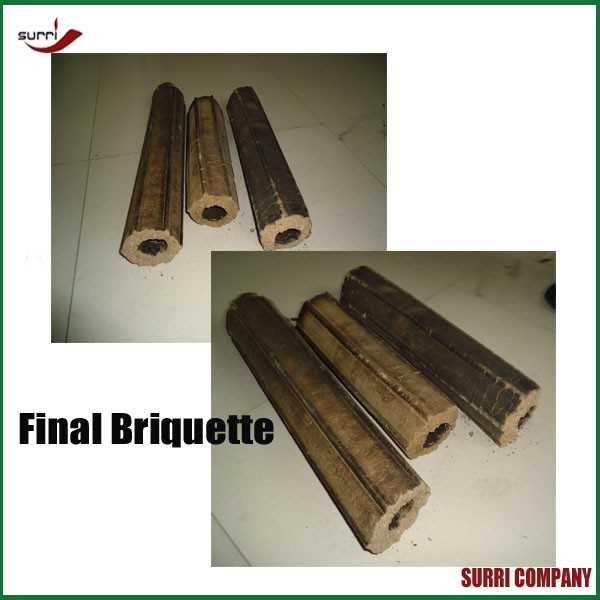

4.final product fromTop sale wood sawdust small briquette machine

Technical parameters:

5.Production step -Top sale wood sawdust small briquette machine
1)fastening bolts, especially in the heating barrel set of three top wire, connecting and electrical power lines.
2)check bearing lubrication part.
3)check the supply voltage is normal.
4)no-load starting running 30 minutes, no card, touch the abnormal phenomenon, can be put into normal production.When the trial revealed abnormalities, should immediately stop, find out the reasons, troubleshooting and then makes no-load operation.
5)the temperature regulator adjusted to the required temperature, when the temperature reaches a predetermined temperature before starting, and amount of feed.
6)gradually increased feeding rate, until the production of qualified products, produced when the normal 30 minutes, can show trial run is successful, the normal operation of.
At the end of 7 to make the hopper feeder with no raw material , and after shutting down the machine immediately reversed for 1 minutes, so that the propeller material would be exit.
The machine body must be well grounded!!!

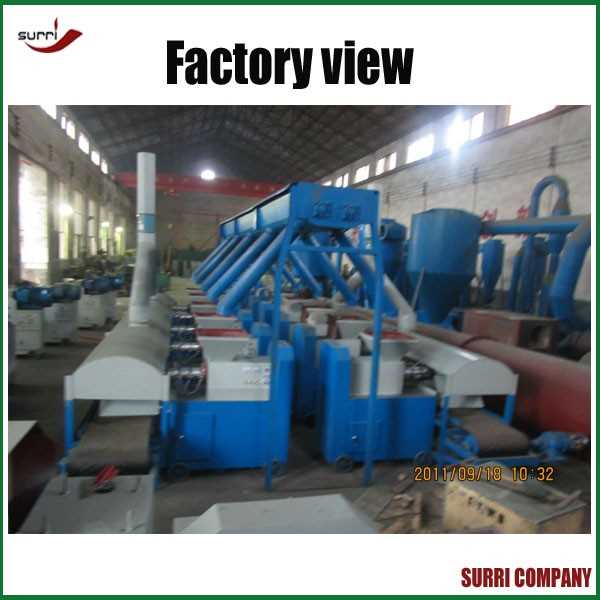

5.briquette production line-Top sale wood sawdust small briquette machine
