Specifications

-high productive efficiency
-low energy consumption
-less maintenance during using
-simple operation,safe and reliable

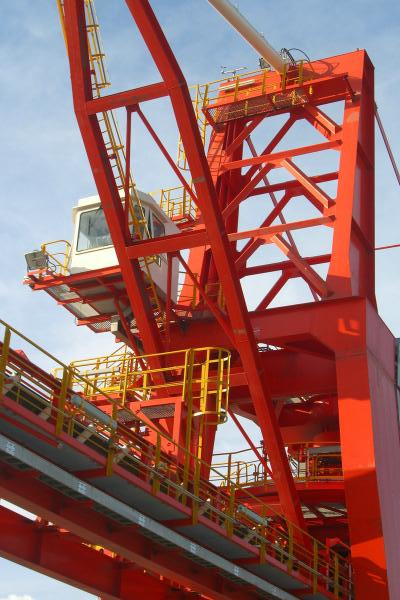

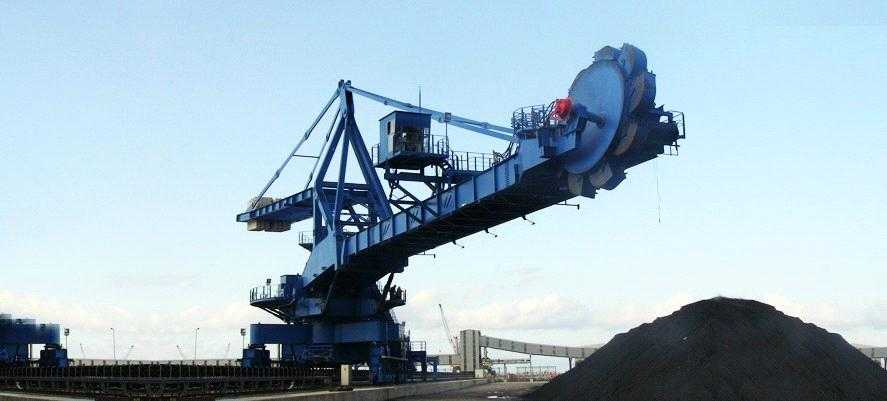

Bucket wheel stacker reclaimer



 Our stacker reclaimer is a bridge bucket-wheel stacker reclaimer. It could work both as a stacker and as a reclaimer. When it is used as a stacker, the bulk material is transported to the belt conveyor on the bridge by a conveyor via a tail car. Then , the material is unloaded to the storge yard from the front end of the bridge. The material is then formed in a tidy ladder-shapped stack.



Main parameter:





Capacity	Stacking	Design 5000t/H	Coal Density	0.85t/M3
			Traveling Length	-365.8m(-434.2m)
	Reclaiming	Design 5000t/H	Boom Conveyor	Conveyor Speed	4.75m/S
				Belt Width	1800mm
Bucket wheel	Volume	1.52 M3		Motor Power	355 Kw
	Number	12	Relay Tripper Conveyor	Conveyor Speed	4.75m/S
	Diameter	9.3 M		Belt Width	1800mm
	Velocity	5.8 R/Min		Motor Power	355 Kw
	Motor Power	250 KW	Roller	Angle	450
Slewing Unit	Slewing Angle	+1100		Diameter	159mm
	Slewing Radii	45m	Gantry	Wheel Base	12m
	Slewing Velocity	0.054-0.11r/Min		Rail Base	10m
	Slewing Power	18.5x2 KW		Wheel Diameter	630
Boom Luffing	Luffing Angle	-150--+100		Motor Power	7.5x24
	Motor Power	45 KW	Gantry Speed	Operation	7m/Min
	Style	Hydraulic Cylinder		Non operation	30m/Min
			Wheel Load Max.	Operation	<25t
				Non Operation	<30t
