. Characteristics of XYC-200 vehicle-mounted hydraulic water well drilling rig

• XYC-200 is a multi-functional hydraulic vehicle-mounted water well drilling rig.
• Automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
• It is equipped with high pressure,big flow BW160mudpump,which can ensure drilling depth and diameter.
• The drilling rig has shifting device,  it can move on the vehicle and is convenient to operate while drilling.
• The hydraulic folding mast is safe and convenient to transport

2.Applications of XYC-200 vehicle-mounted hydraulic water well drilling rig

• road and high-rise building foundation exploration
• all kinds of concrete structure inspection holes
• river embankments
• subgrade grouting holes
• drilling and direct grouting
• civil water well
• ground temperature central air conditioners.

3. Parameters of XYC-200 vehicle-mounted hydraulic water well drilling rig

XYC-200 vehicle-mounted hydraulic water well drilling rig
Drilling depth(m)	30-200
Drilling diameter(mm)	300-75
Drilling angel(mm)	90-75
Spindle rotating speed(r/min)	64/128/287/557
Spindle stroke(mm)	450
Main hoisting capacity (single line)(Kg)	1600
Main hoisting line capacity (m)	35
Hoisting speed(r/s)	17/35/75/151
Wireline diameter(mm)	12.5
Mast height(mm)	7000
Mast effective height(mm)	6500
Kelly/active pipe(mm)	59*53
Drill rod(mm)	42/50/60
Drill rig weight(kg)	1150
Power unit	Model	ZS1115 diesel engine
	Rated power	14.7kw/2200rpm
BW-160 mud pump	Rated flow(l/min)	160
	Rated pressure(mpa)	1.3
	Driving power(kw)	5.15
	Main machine weight (kg)	190
	Dimension(mm)	1110*725*965

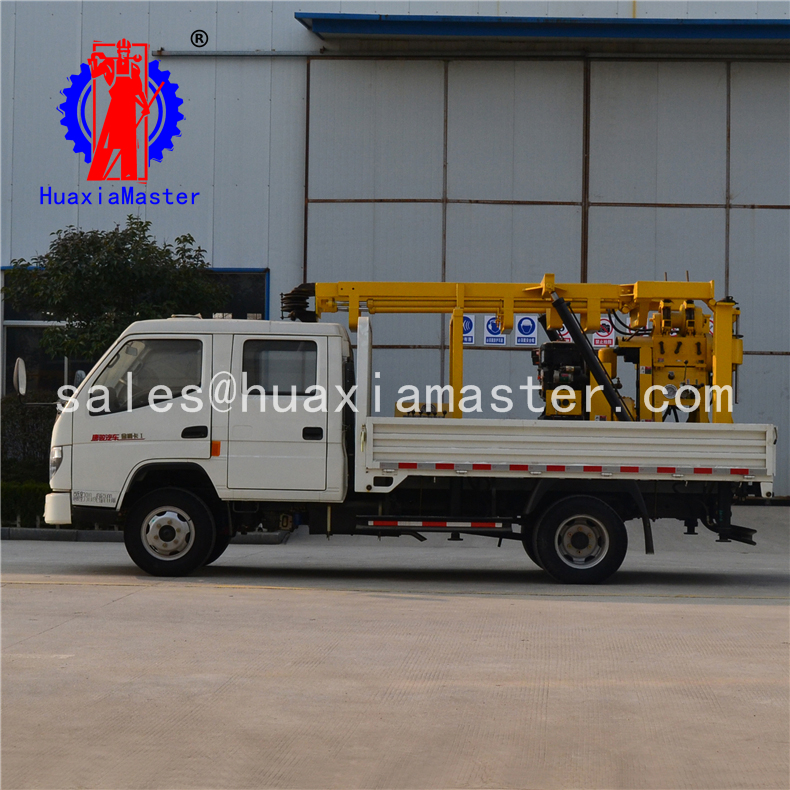

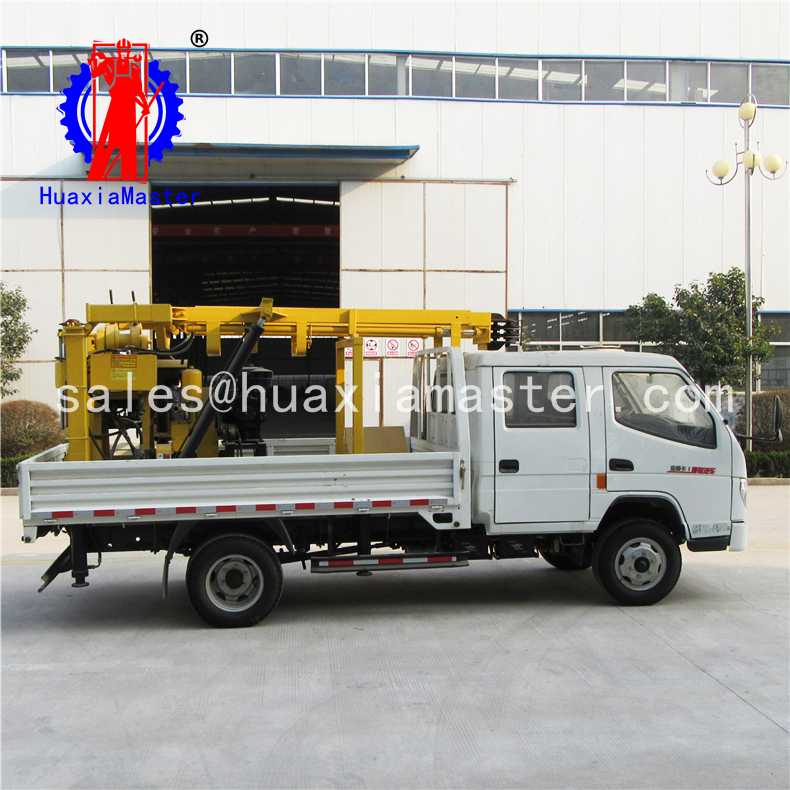

Chassis	light truck（Pictures of vehicle-mounted drilling rigs for reference only）
