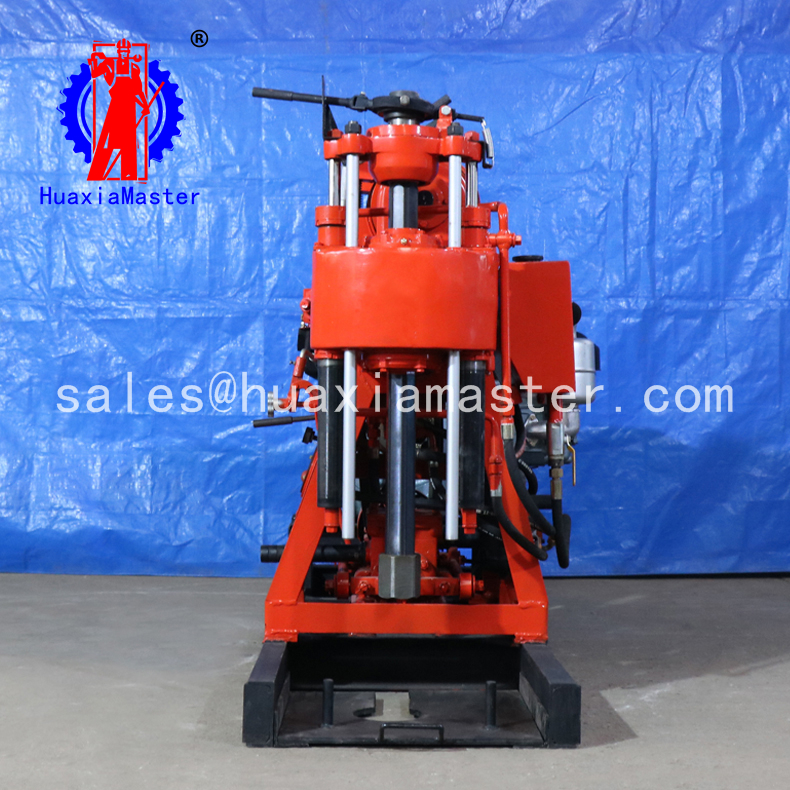

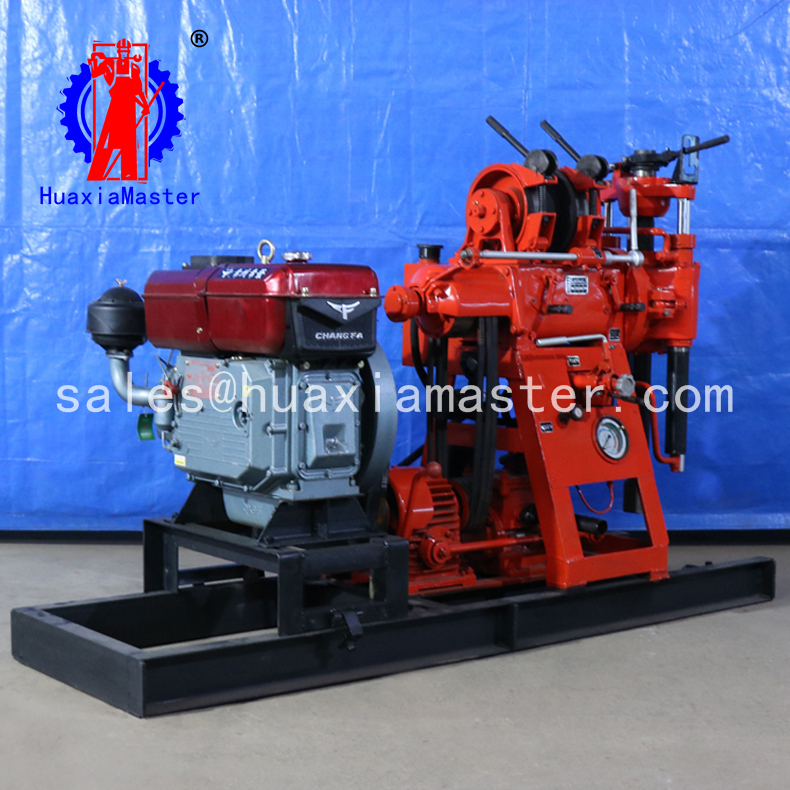

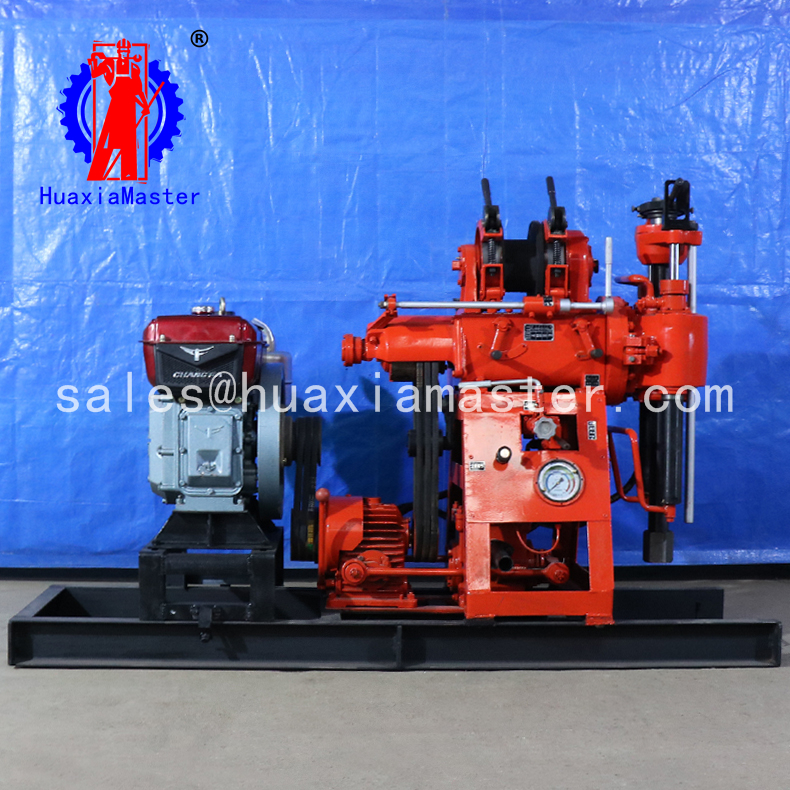

XY-100 water well drilling rig diamond core machine hydraulic Rotary Drilling Rig For Sale
FOB Reference Price / Min.Order Quantity
USD
7000.00-7500.00
/ Set/Sets |
1.00 Set/Sets (Min. Order)
Processing Time:7 DAYS
Packaging Details:
Export Wooden Box
Port: Qingdao
Payment Terms: , ,
Applications of XY-100 water well drilling rig
XY-100 water well drilling rig is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2. Specifications of XY-100 water well drilling rig
|
Drilling depth
|
110
|
|
Maximum open hole caliber
|
220mm
|
|
End hole caliber
|
75mm
|
|
Drill rod caliber
|
50mm /42mm
|
|
Drilling angle
|
90
|
|
Drilling rig weight (exclude diesel engine)
|
610kg
|
|
Unity machine dimensions
|
2.1*0.9*1.3m
|
|
Spindle
|
|
Spindle speed
|
130/300/480/730/830/1045 r/min
|
|
Spindle stroke
|
450mm
|
|
Hoist
|
|
Max. lifting capacity with single rope
|
1600kg
|
|
Lifting speed with single rope
|
1.06/0.67/0.32 m/s
|
|
Wire rope caliber
|
13mm
|
|
Wire rope cubic measure
|
35mm
|
|
Hug floodgate caliber
|
254mm
|
|
Hug floodgate belt width
|
50mm
|
|
Distance between drill and hole
|
230mm
|
|
Mud pump
|
|
Type
|
Horizontal single-urn twin-action
|
|
Displacement (with diesel engine/electric motor)
|
170l/min
|
|
Max. pressure
|
1.5mpa
|
|
Work pressure
|
0.7mpa
|
|
Power
|
|
Diesel engine
|
S1100
|
|
Electric motor
|
Y160M-4 / 10KW
|
