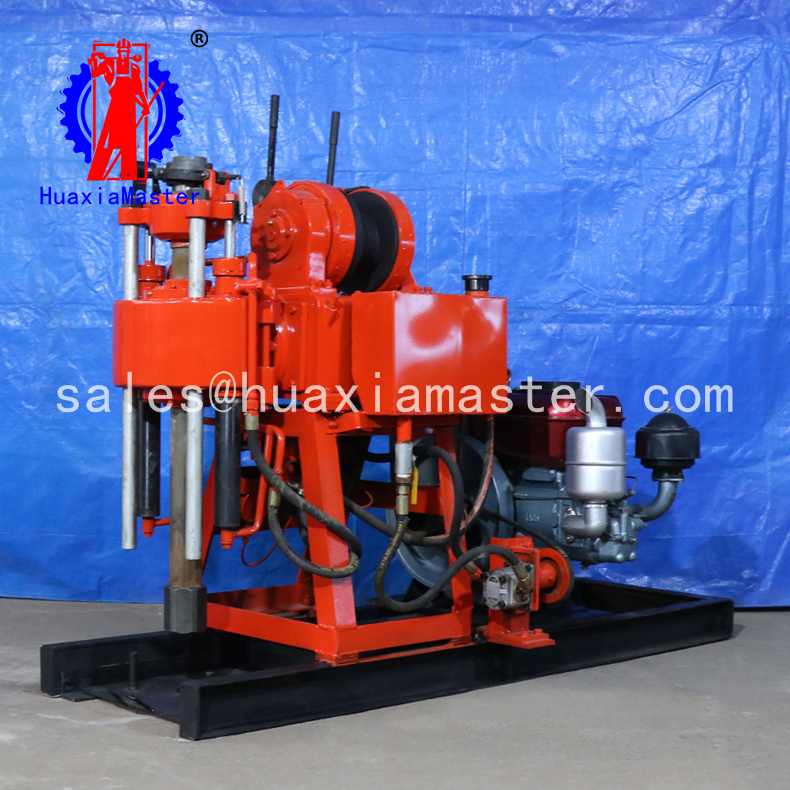

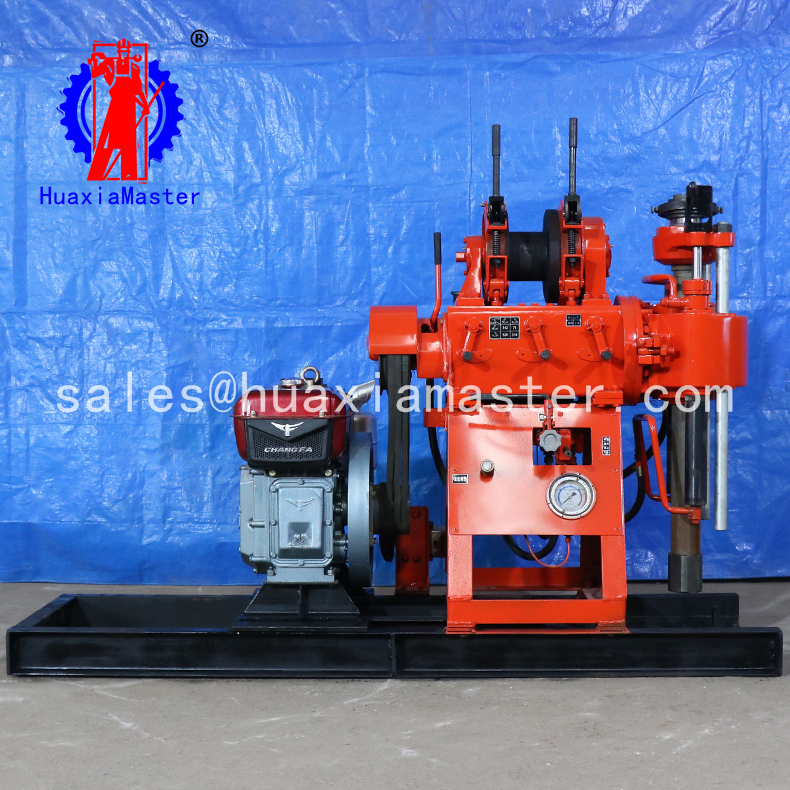

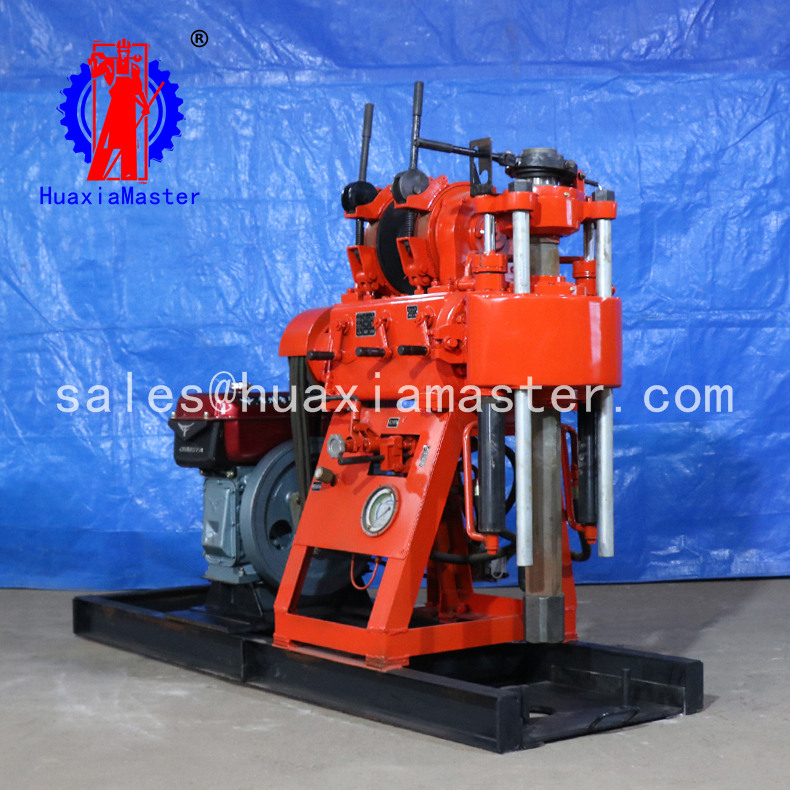

XY-200 hydraulic water well drilling rig diamond core sample machine for sale
FOB Reference Price / Min.Order Quantity
USD
4000.00-5000.00
/ Set/Sets |
1.00 Set/Sets (Min. Order)
Processing Time:7 days
Packaging Details:
export wooden box
Port: Qingdao
Payment Terms: , ,
Applications of XY-200 hydraulic water well drilling rig
Wells, geological survey, geophysical exploration, road and high-rise building foundation exploration, blasting holes and other drilling projects.
- Parameters of XY-200 hydraulic water well drilling rig
|
Maximum opening diameter
|
400mm
|
|
Maximum borehole depth
|
200m
|
|
Diameter of the end hole
|
75mm
|
|
Borehole dip angle
|
90-75°
|
|
Machine overall size
|
2.75*0.95*1.60m
|
|
Drill pipe diameter
|
50mm
|
|
Weight of drill rig diameter of drill pipe (without power)
|
760kg
|
|
A vertical scroll of painting
|
|
Shaft rotation speed
|
71/142/310/20r/min
|
|
Vertical axis stroke
|
450mm
|
|
Windlass
|
|
Maximum lifting weight of single rope
|
2008kb
|
|
Drum lifting speed
|
17/35/75/160 rm/s
|
|
Wire rope diameter:
|
13mm
|
|
Wire rope capacity
|
35mm
|
|
Width of sluice
|
70mm
|
|
Mud pump
|
|
Type: horizontal single cylinder double action
|
flow:180L/min
|
|
Maximum pressure
|
1.5mpa
|
|
Working pressure
|
0.7mpa
|
|
Inlet size
|
50mm
|
|
Outlet pipe diameter
|
45mm
|
|
Power
|
|
Diesel oil
|
22hp
|
|
Rated speed
|
2200r/min
|
|
Electric machinery
|
15kw
|
|
Rated speed
|
1460r/min
|
