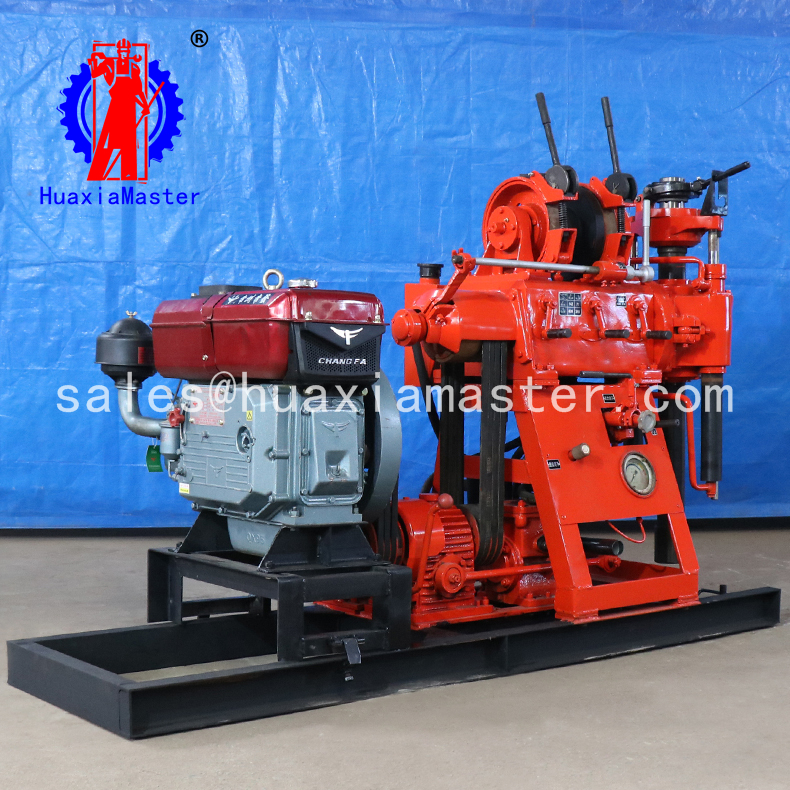

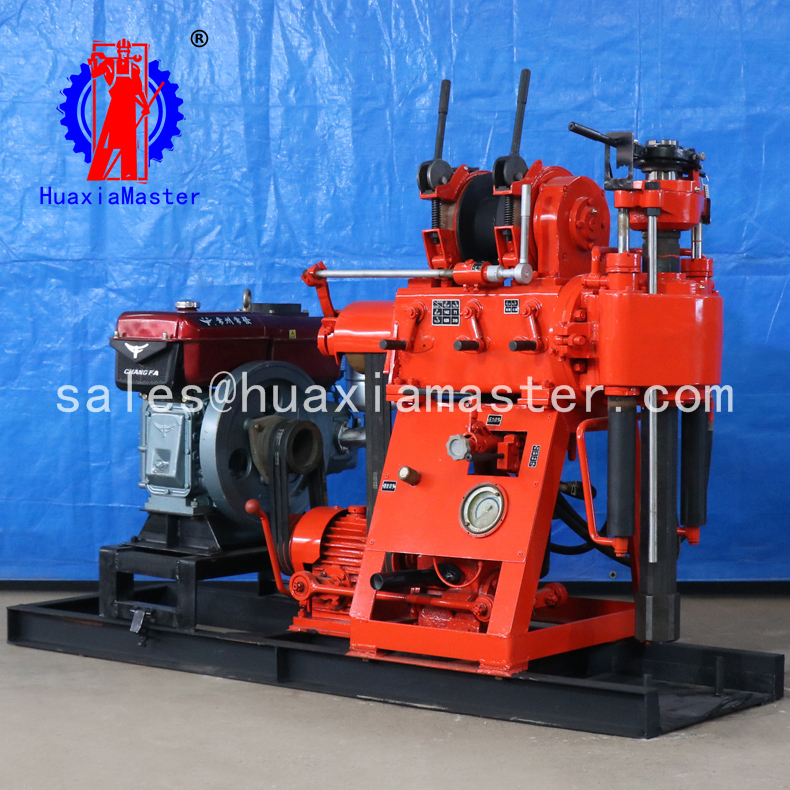

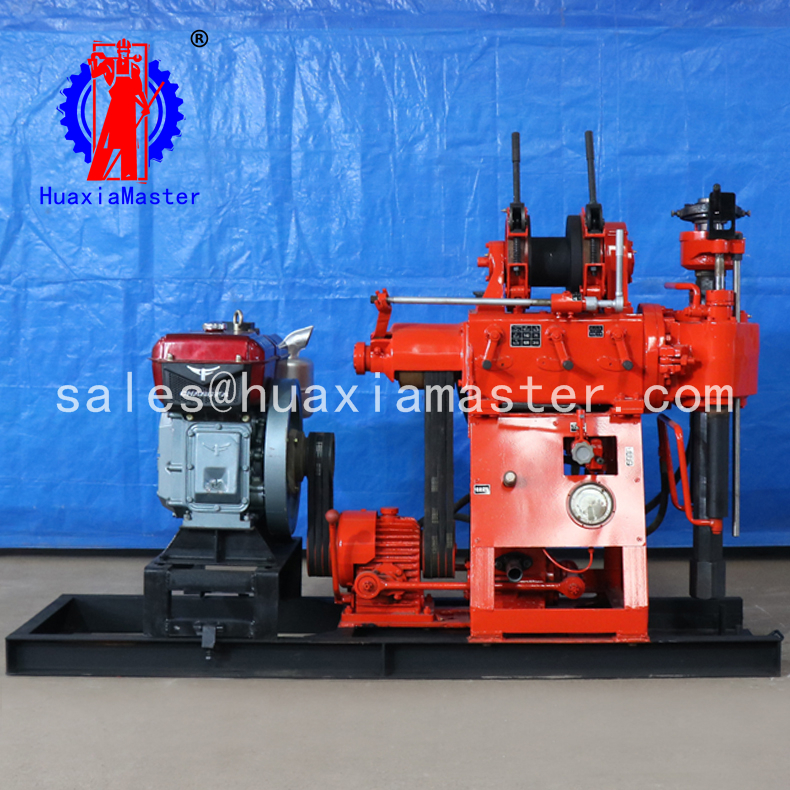

Applications of XY-180 hydraulic water well drilling rig

The XY-180 water well drilling rig is designed on the basis of the XY-1A water well drilling rig. It is a low speed and high torque water well drilling rig with oil pressure.

This drilling rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.

1. Parameters of XY-180 hydraulic water well drilling rig

Drilling depth（m）	180/150/120/90/70/30
Borehole diameter（mm）	75/91/110/130/150/300
Maximum opening diameter（mm）	375
Drill pipe diameter（mm）	42/50
Spindle speed (r/min)	71/142/310/620
Spindle stroke（mm）	450
Upgrading ability (KN)	15
Diameter of steel wire（mm）	12
Type	gear pump
Model	YBC-12/80
Rated pressure (MPa)	8
Rated speed (r/m)	1500
Displacement（ml/r）	8
Power supply	ZS1115 diesel engine and 15kw motor
