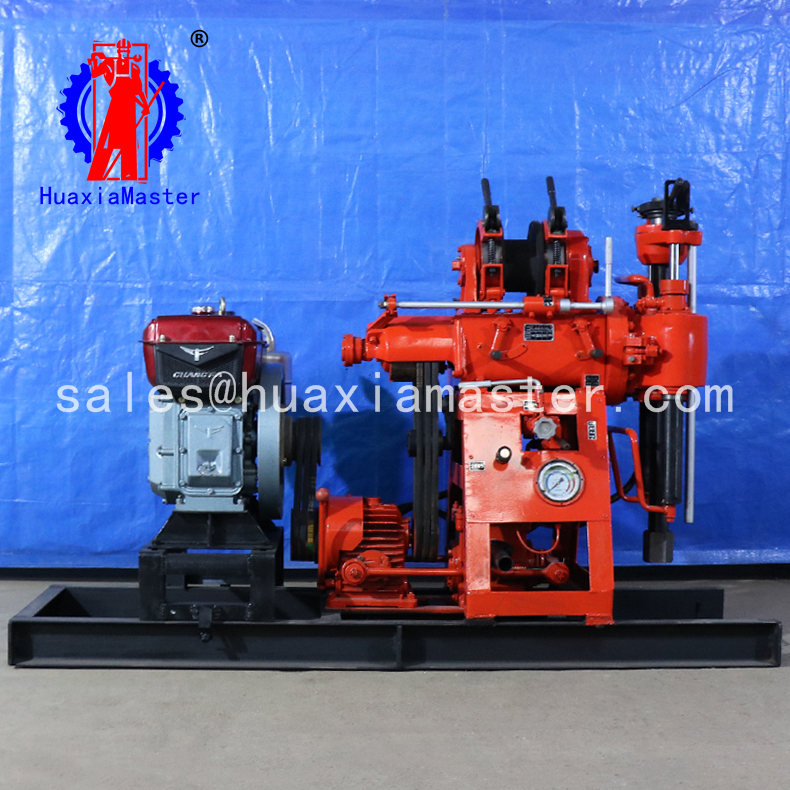

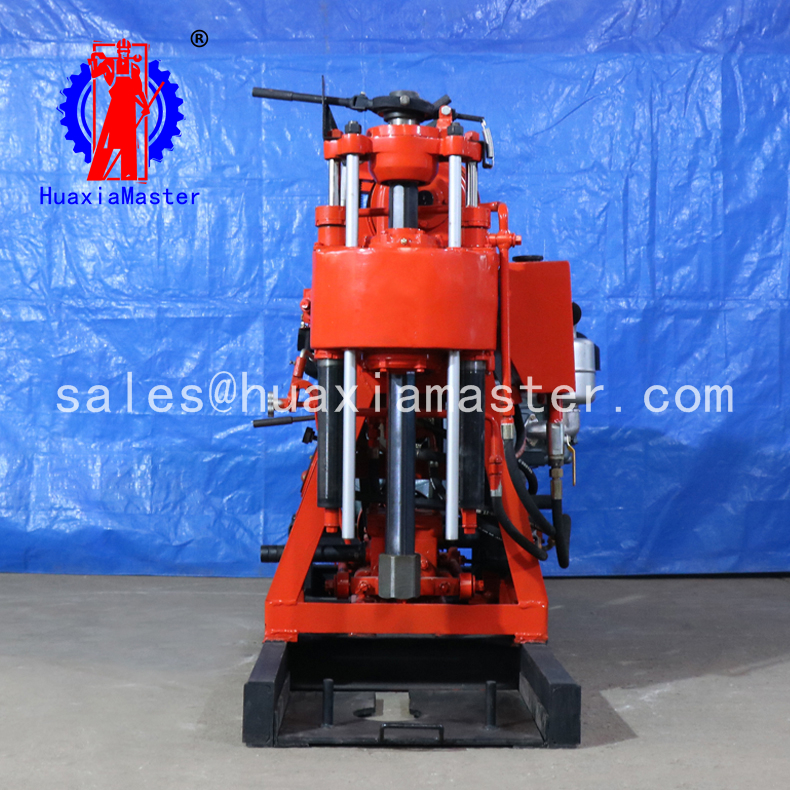

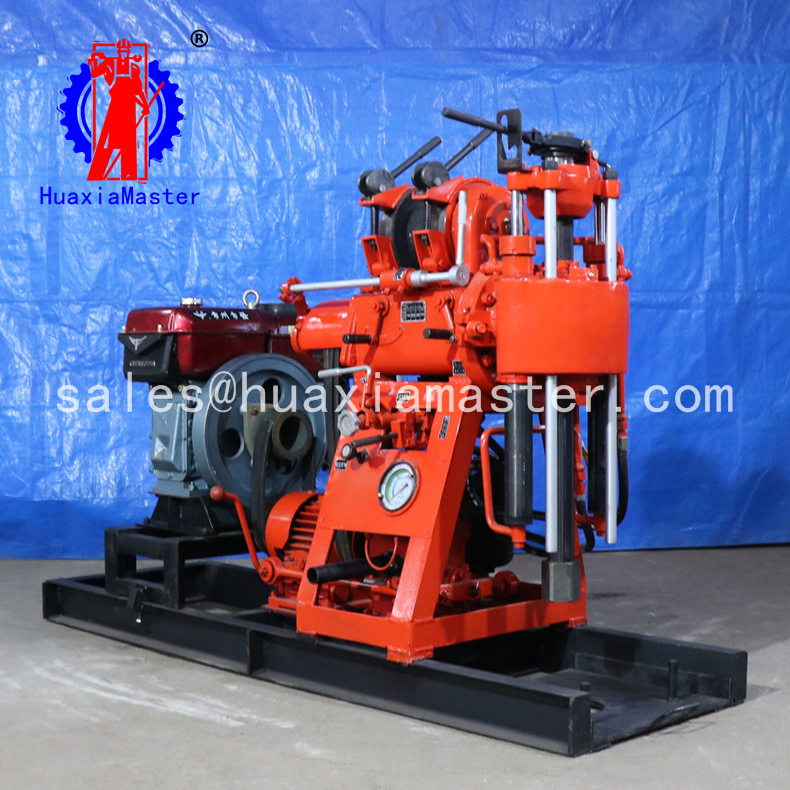

XY-100 hydraulic water well drilling rig diamond core drilling rig for sale

FOB Reference Price / Min.Order Quantity

USD 4000.00-6000.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:7 days

Packaging Details: export wooden box

Port: Qingdao

Payment Terms: , ,

Product Details Company Profile

.Applications of XY-100 hydraulic water well drilling rig

XY-100 water well drilling rig is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.

2.Specifications of XY-100 hydraulic water well drilling rig

Drilling depth	110
Maximum open hole caliber	220mm
End hole caliber	75mm
Drill rod caliber	50mm /42mm
Drilling angle	90
Drilling rig weight (exclude diesel engine)	610kg
Unity machine dimensions	2.10.91.3m
Spindle
Spindle speed	130/300/480/730/830/1045 r/min
Spindle stroke	450mm
Hoist
Max. lifting capacity with single rope	1600kg
Lifting speed with single rope	1.06/0.67/0.32 m/s
Wirerope caliber	13mm
Wirerope cubic measure	35mm
Hug floodgate caliber	254mm
Hug floodgate belt width	50mm
Distance between drill and hole	230mm
Mud pump
Type	Horizontal single-urn twin-action
Displacement (with diesel engine/electric motor)	170l/min
Max. pressure	1.5mpa
Work pressure	0.7mpa
Power
Diesel engine	S1100
Electric motor	Y160M-4 / 10KW
