MODEL 1

MODEL 2

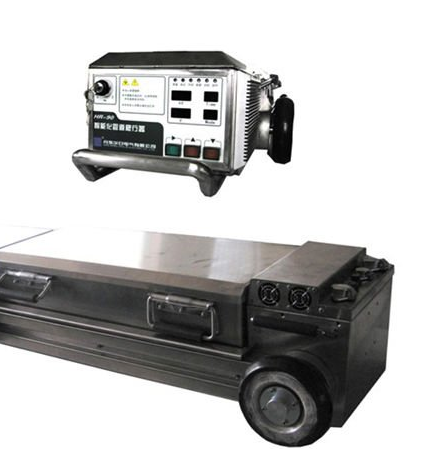

HR-90

Available Diameter     mm

219 - 377

355 - 1200

508-1600

Wall Thickness        mm

<=12

<=30

<=33

Total Weight           kg

<=110 Total

<=160 Total

<=160 Total

Total Length          mm

2800

2900

2550

Max.Gradient

12°

40°

40°

Speed

12m/min

18m/min

18m/min

Turning Radius

>=7D

>=7D

>=7D

Creep Distance         km

>1 Return

>4 Return

>4 Return

Drive Mode

Single/Double drive

Single/Double drive

Double drive

X-ray Unit

1205-1605

2005,2505,3005

2505,3005

Focal Spot Size         mm

1.0 * 3.5

1.0 * 3.5

1.0 * 3.5

Radiation angle

30°* 360°

30°* 360°

40°* 360°

Max.penetrable        mm

12(A3 steel)

29(A3 steel)

40(A3 steel)

Total exposure time    min

0~30

0~30

0~7

Voltage range of exposure kv

120-160

150-300

150-300

Positioning Precision    mm

+/-5

+/-5

+/-5

Locate Mode

Pilot Command magnetic

Pilot Command magnetic

Pilot Command magnetic

Available temperature

-20°C- +70°C

-20°C- +70°C

-20°C- +70°C

Store temperature

-40°C- +80°C

-40°C- +80°C

-40°C- +80°C

Available temperature

<=90%

<=90%

<=90%

Creep length           mm

1065

1627

1250

Power Supply

Lead-acid battery (12Ah)

Lead-acid battery (22Ah*10)

Lead-acid battery (22Ah*10)

Battery case Weight     kg

50

67

67

Battery case dimension  mm

790*160*115

945*185*195

590*270*200

Charger

CD-2

CD-2

CD-2
