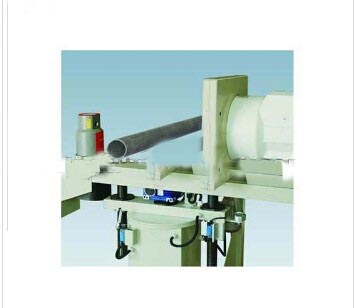

Digital X-ray Imaging Inspection System

System structure

• X-ray unit
• Industrial imaging system
• Image process system
• Mechanical movement system
• Electric control system
• Radiation shielding system

Applied to automatic wheel inspection.





System parameter

• Inspection range: 12 – 26” hub
• Inspection speed: ≤35 – 45 s/piece
• Working mode: Continuous
• System resolution: 18 -25 LP/cm
• System sensitivity: 1.5 – 2.0 %



X-ray Unit

• Tube voltage: 30 – 160 kV
• Tube current: 1 – 3 mA
• Focal spot size: (EN12543) focus: 1.0 mm
• High voltage frequency: 40kHz
• Computer program control



Industrial TV system

• Image intensifier: 9”Center resolution: 54/62/70 LP/cm
• Camera pixels: 1000 × 800 dpi
• Moniter: 1249 line ; 17”screen



Image processing unit

• Windows, Menu, Prompt information etc.
• May record inspection date, manufacture date and workpiece coding
• Defect lengty, area measuring
• Contrast and edge enhancement
• 16 – 256 images denoise
• Pseudoclor processing, plus-minus change
• Image zoom in/out
• Value filtering, edge inspection, smoothness



Mechanical movement system

• Image intensifer movement device
• X-ray tube movement device
• Wheel tightening, movement device



Electric control system

• Based on computer and PLC, composed by transducer, photoelectric switch, power device, drivers and control software etc. to achieve control the whole system.
• Radiation shielding
• Available protect 160kV energy, Compliance to national standards.
•
