STX-202AQ-Pnuematic Desktop Precision Diamond Wire Saw With Touch Screen Control
FOB Reference Price / Min.Order Quantity
USD
10000.00-11000.00
/ Set/Sets |
1.00 Set/Sets (Min. Order)
Processing Time:30 working days
Packaging Details:
Wooden case
Port: Dalian;Shenyang
Payment Terms: , ,

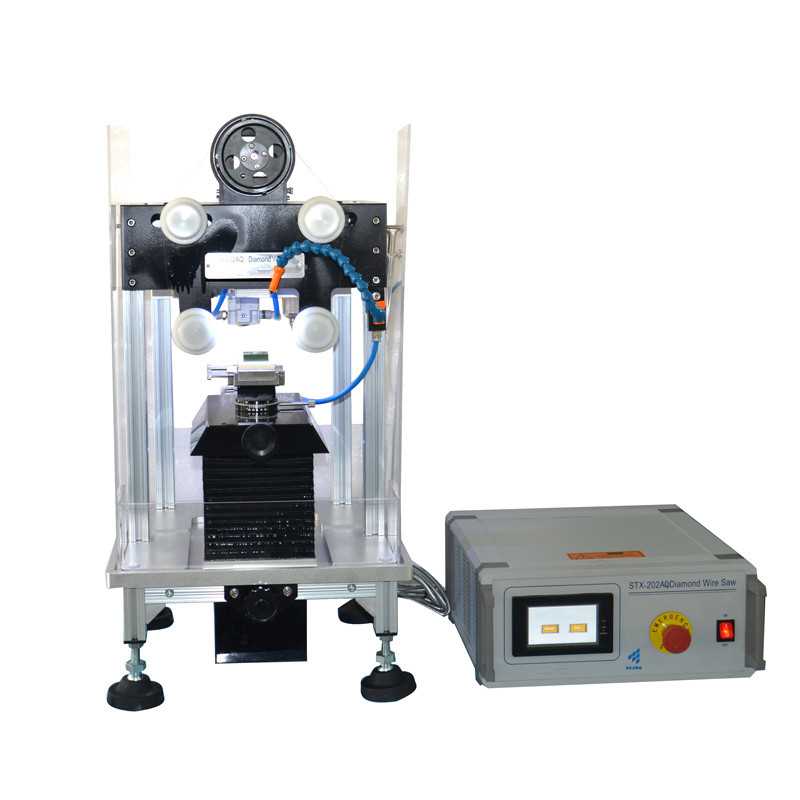

STX-202AQ-Pnuematic Desktop Precision Diamond Wire Saw With Touch Screen Control
STX-202P is a CE certified, small precision diamond wire saw for cutting sample ≤ 2" diameter or square up to 50mm thick. It is designed to provide low stress cut for various materials such as the fragile crystals and TEM or IC samples. It is a premium version upgraded from STX-202A since Mar 2017.
|
Main feature
|
1. Cutting different hardness of crystal, ceramic, glass, fire proof material, rock sample, especially for processing fragile materials.
2. Cut by diamond wire, easy to operate, good quality.
3. Heavy-duty aluminum alloy structure and compact size.

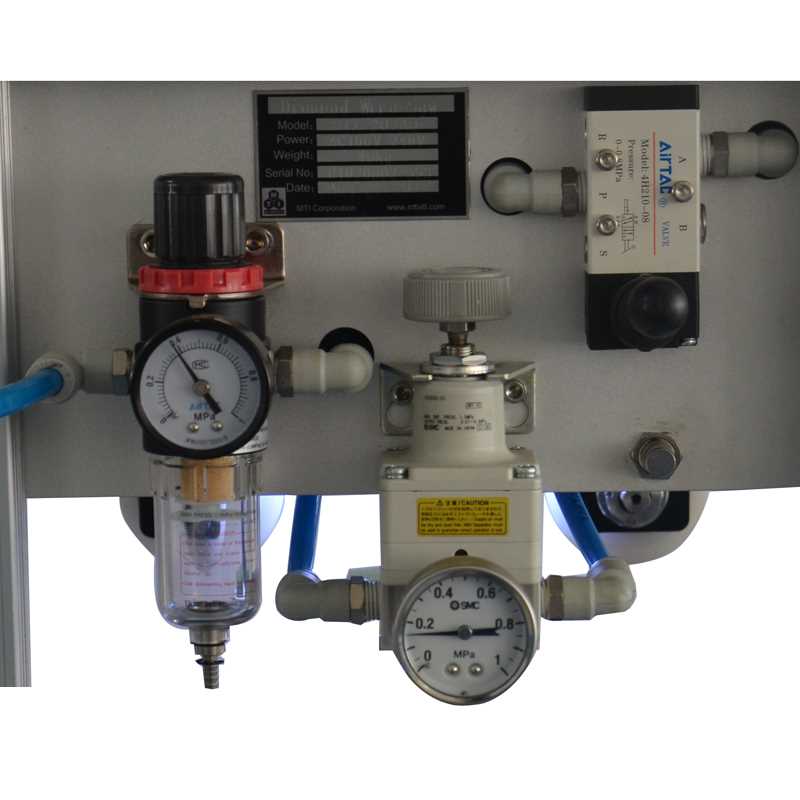

4. Pneumatic tensioning, tension output more uniform, and adjust more accurate.
5. The thinnest diamond wire can be used is 0.08mm.
|
|
Technical parameter
|
1. Power supply voltage: 220V 50Hz
2. Spooler spin speed: 2rpm-260rpm adjustable
3. Total length of diamond wire: 20m
4. The inner distance of the two leading wheels: 100mm
5. Y-axis travel distance: ≤ 50mm
6. Z-axis travel distance: ≤ 60mm
7. Two dimension sample stage built in 360° degree horizontal rotating and +/-15° tilting
8. Sample holder size: 80mm × 51mm
9. Cutting depth: ≤ 50mm
10. Max. sample size: 50mm x 50mm
11. Gas supply: need, suggested air pressure is 0.1-0.55MPa.
|
|
Specification
|
Size: 414mm x 500mm x 750mm; weight: 40kg
|
|
Standard accessories
|
1
|
Auto-tension wheel
|
2
|
|
2
|
Leading wheel
|
2
|
|
3
|
Two dimensions crossing vise
|
1
|
|
4
|
Diamond wire
|
3
|
|
5
|
Water pump
|
1
|
|
6
|
Resin Bonded Ceramics for Samples Holding
|
2
|
|
7
|
Wax bar
|
4
|
|
Optional accessories
|
1. Diamond wire (O 0.125mm, O 0.25mm, O 0.35mm, O 0.42mm)
2. Coolant oil
3. geological sheet special sample fixture
4. Hot plate
5. Through-Microscope View
6. Air compressor
7. DX-100 single crystal directing instrument
|
