STX-202A-Desktop Precision Diamond Wire Saw With Touch Screen Control
FOB Reference Price / Min.Order Quantity
USD
7700.00-9240.00
/ Set/Sets |
1.00 Set/Sets (Min. Order)
Processing Time:30 working days
Packaging Details:
Wooden case
Port: Dalian;Shenyang
Payment Terms: , ,
STX-202A-Desktop Precision Diamond Wire Saw With Touch Screen Control
STX-202A is a small precision diamond wire saw for cutting sample ≤ 2" diameter or square up to 50mm in thickness. It is designed to provide a smooth cutting for many kinds of materials, especially for fragile crystals and TEM or IC sample by using 0.35mm diameter x 20-meter long diamond impregnated wire. It is an ideal cutting tool for material research, TEM sample preparation, and IC failure analysis. And especially for precision cutting ultrathin sample, the final thin can reach to 0.08mm.
|
Main feature
|
1. Cutting different hardness of crystal, ceramic, glass, fire proof material, rock sample, especially for processing fragile materials.
2. Cut by diamond wire, easy to operate, good quality.
3. Heavy-duty aluminum alloy structure and compact size.
|
|
Technical parameter
|
1. Power supply voltage: 220V 50Hz
2. Spooler spin speed: 2rpm-260rpm adjustable
3. Total length of diamond wire: 20m
4. The inner distance of the two leading wheels: 100mm
5. Y-axis travel distance: ≤ 50mm
6. Z-axis travel distance: ≤ 60mm
7. Two dimension sample stage built in 360° degree horizontal rotating and +/-15° tilting
8. Sample holder size: 80mm × 51mm
9. Cutting depth: ≤ 50mm
10. Max. sample size: 50mm x 50mm
|
|
Specification
|
Size: 414mm×500mm×750mm; Weight: 40kg
|
|
Standard accessory
|
1
|
Auto-tension wheel
|
2
|
|
2
|
Leading wheel
|
2
|
|
3
|
Two dimensions crossing vise
|
1
|
|
4
|
Diamond wire Ø0.35mm x 20meter
|
3
|
|
5
|
Water pump
|
1
|
|
6
|
Resin Bonded Ceramics for Samples Holding (50 x 50mm)
|
2
|
|
7
|
Wax bar
|
4
|
|
Optional accessory
|
1. Diamond wire (O 0.125mm, O 0.25mm, O 0.35mm, O 0.42mm)
2. Coolant oil
3. geological sheet special sample fixture
4. Hot plate
5. Through-Microscope View
6. Air compressor
7. DX-100 single crystal directing instrument
|
Shenyang Kejing Auto-instrument Co.,Ltd
Basic Information
Business Type:Manufacturer, Trading Company
Main Products:Cutting device,Polishing device,Grinding device,Other auto-instruments,Instruments consumables
Location:No.26-2-7, Xuefeng Road, Hunnan New District, Shenyang City, China
Total Employees: 68
Year Established: 2003.06.11
Trade Information
Top 3 Markets:
Accepted Payment Currency:
Nearest Port:
Average Lead Time:
Overseas Office: No

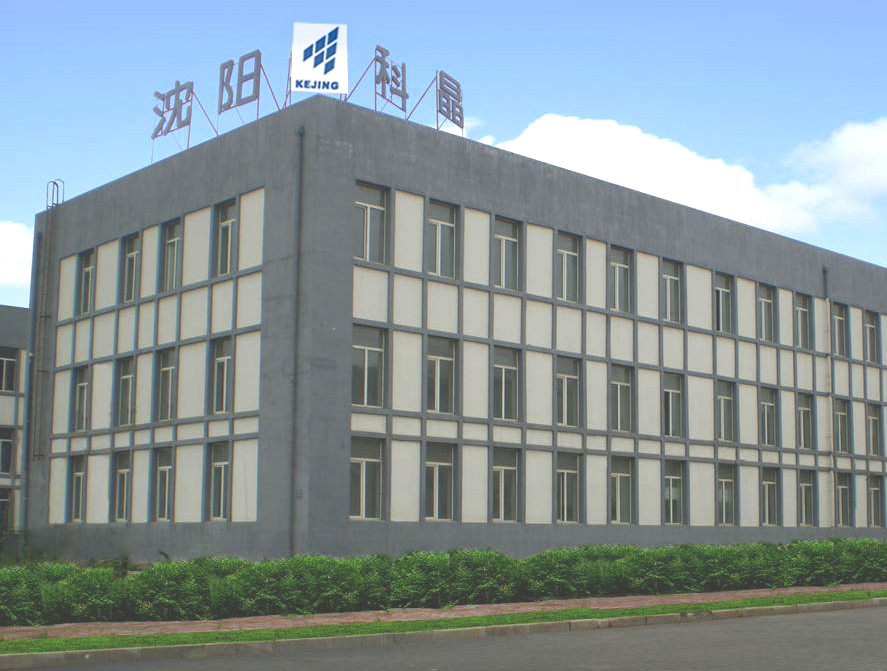

Company Pictures
