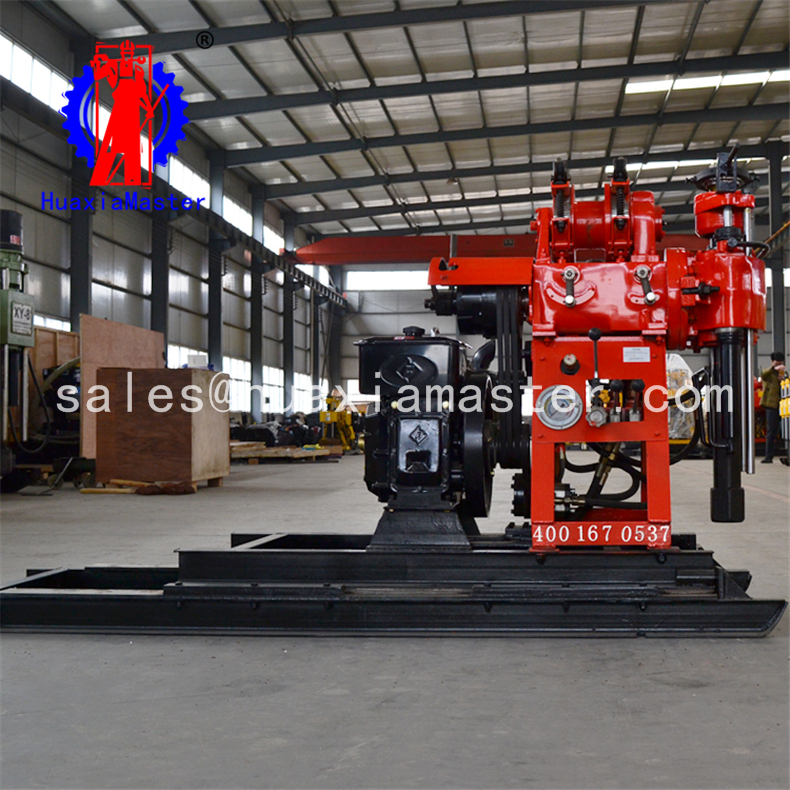

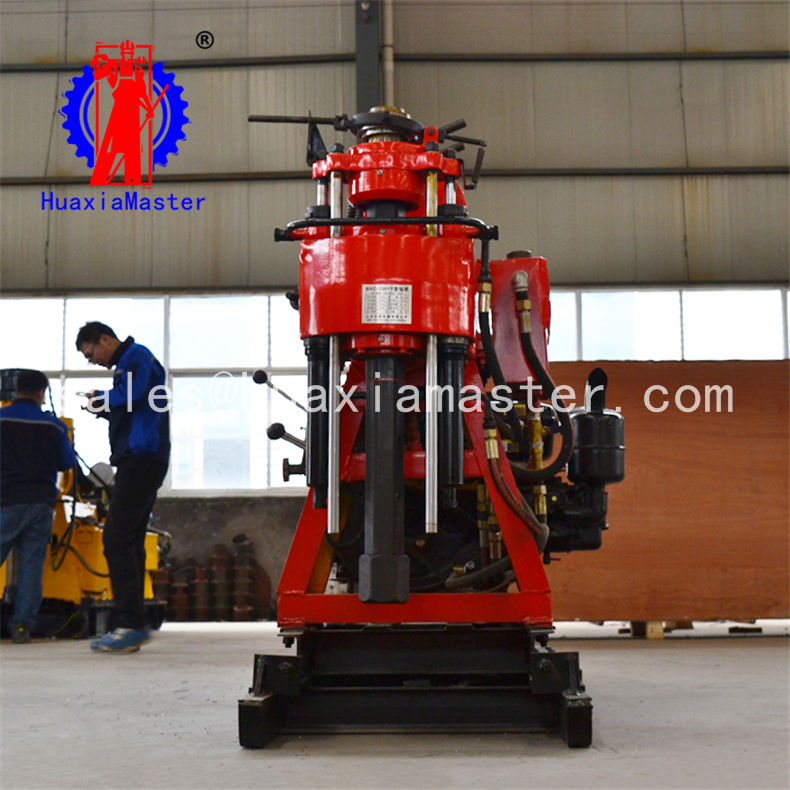

1. Brief introductions of HZ-130YY hydraulic water well drilling rig

HZ-130YY hydraulic water well drilling rig adds shifting slipway on the basis of common drilling rig, which can realize rapid replacement of drilling tools and improve work efficiency and reduce labor usage.

1. Applications of HZ-130YY hydraulic water well drilling rig

• this water well drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.
• drilling bits can be chosen according to the different soil condition, such as alloy, diamond and composite.
• 2-9 grades of sandy clay and rock.

1. Features of HZ-130YY hydraulic water well drilling rig

• the automatic feed mechanism with oil pressure can improve the drilling efficiency and reduce the labor intensity of the workers.
• the ball card holding mechanism is used instead of the chuck, which can be operated without stopping the rod, and the operation is convenient, safe and reliable.

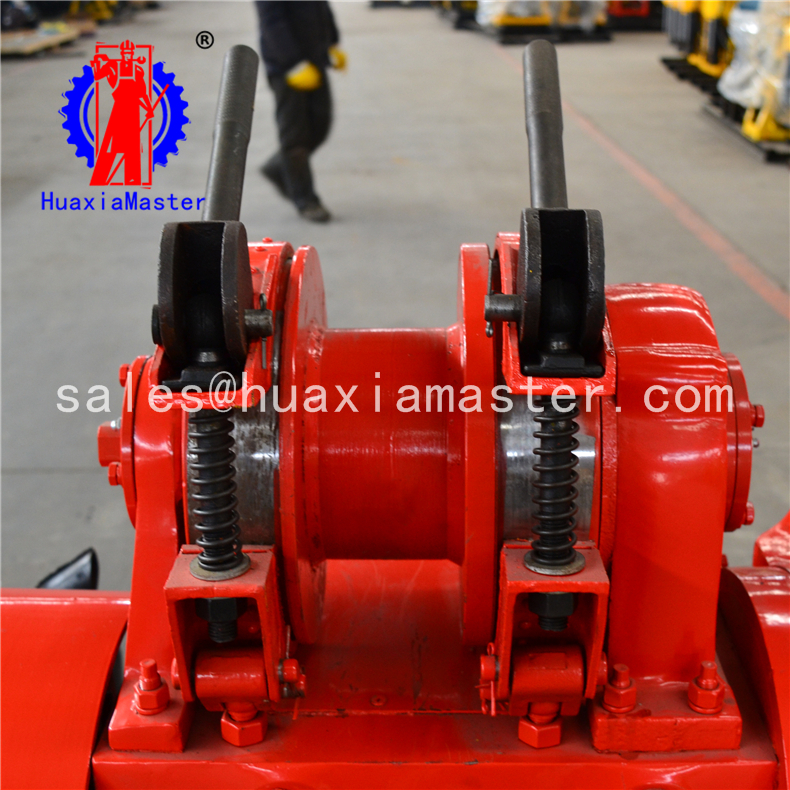

• hoist is installed with holder, forming structure of double support wheel so that it can withstand strong impact
• four groups of bearings are located in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complicated geological conditions such as the gravel layer, the pebble layer and so on.
• This drilling rig adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance.

1. Technical parameters of HZ-130YY hydraulic water well drilling rig

HZ-130YY hydraulic water well drilling rig
Drill hole depth	130m
Maximum opening diameter	75-220mm
Final hole diameter	75mm
Take the initiative to drill pipe	53/59*4200mm
Drill pipe diameter	50mm
Borehole inclination	90°-75°
Power(diesel engine)	13.2kw  2200r/min
Size	850kg/2400*950*1400
Vertical shaft
Vertical spindle speed	142/285/570r/min
Vertical stroke	450mm
Hoist
Single rope lift	9.6kn
Single rope winding speed	0.41/0.82/1.64m/s
Drum diameter	140mm
Diameter of wire rope	9.3mm
Wire rope capacity	27m
Derrick
Rated load	2t
Effective height	6m
Towerleg specifications	73mm
Mud pump
Model	BW95
Flow	95l/min
Maximum pressure	1.2mpa
Reciprocating frequency	93r/min
Suction pipe diameter	51mm*4.5m
Diameter of high pressure pipe	32mm*6m
