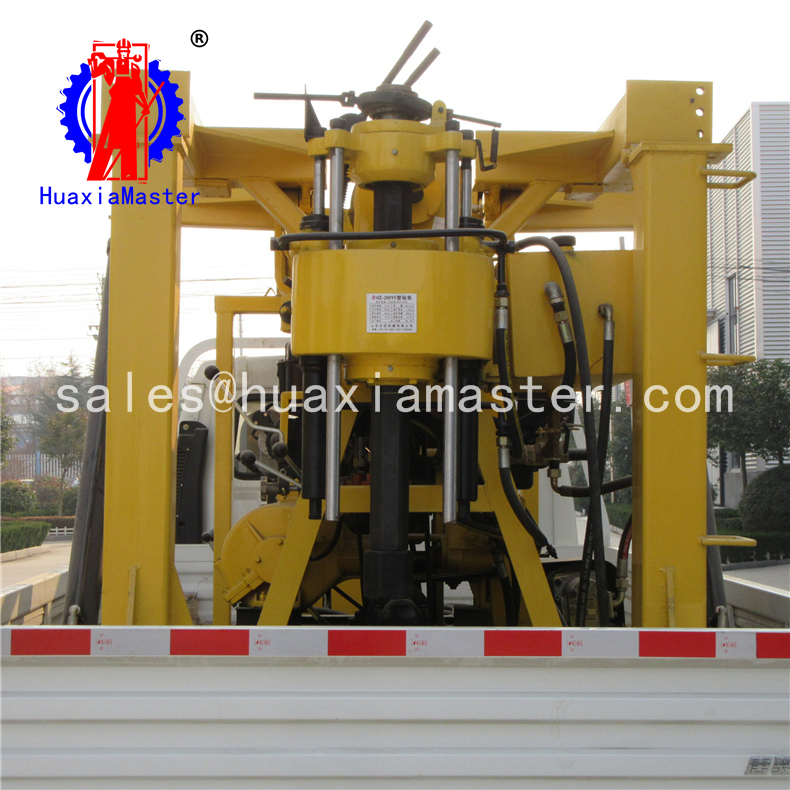

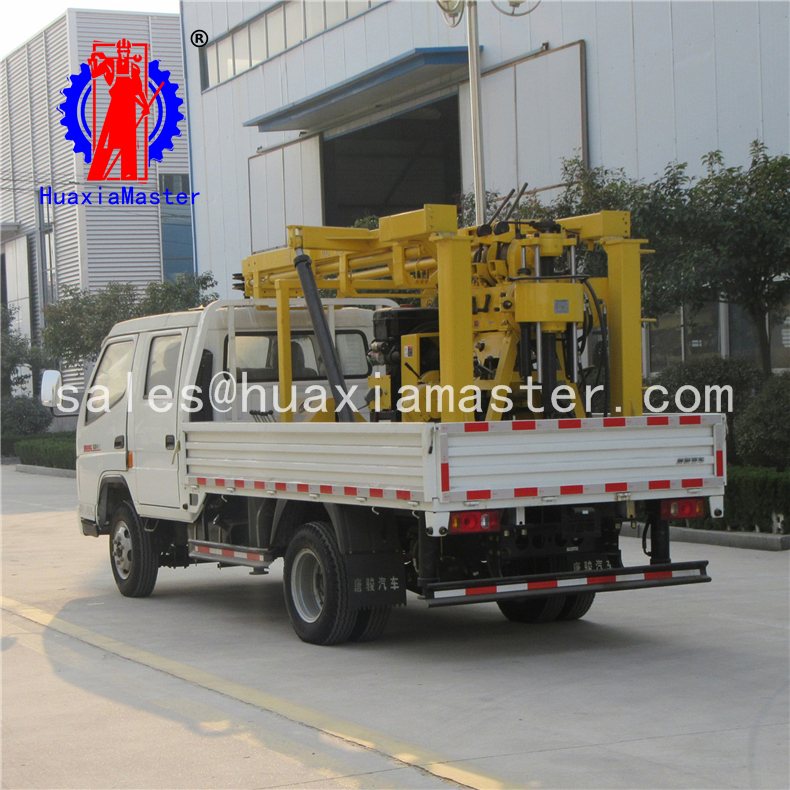

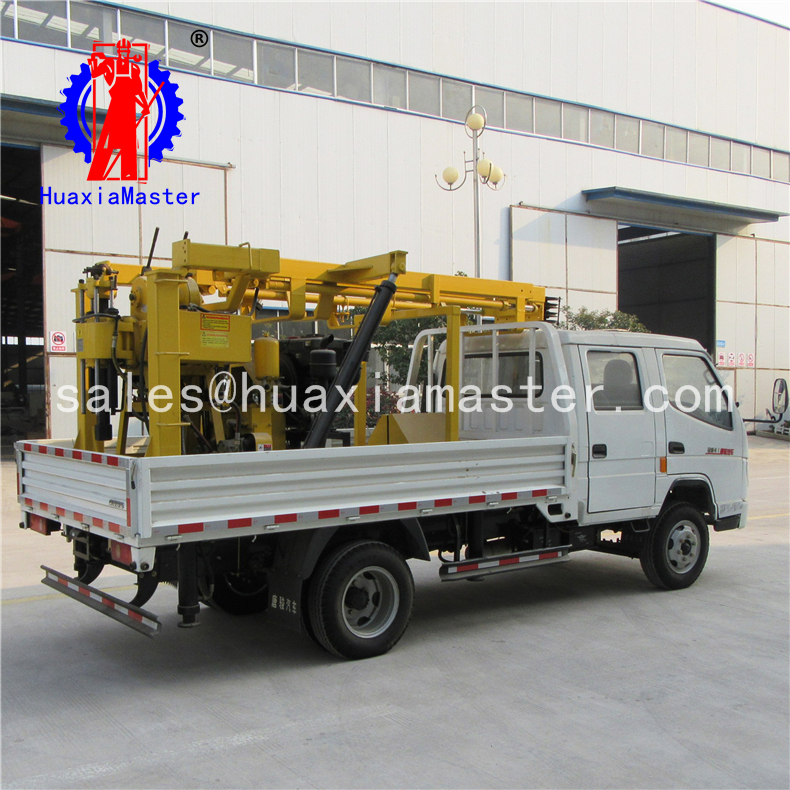

Characteristics of XYC-200 vehicle-mounted water well drilling rig

• XYC-200 is a multi-function hydraulic vehicle-mounted water well drilling rig.
• the Tang Jun automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
• It is equipped with high pressure,big flow BW160 mud pump,which can ensure drilling depth and diameter.
• The drilling rig has shifting device,  it can move on the vehicle and is convenient to operate while drilling.
• The hydraulic folding mast is safe and convenient to transport

2.Applications of XYC-200 vehicle-mounted water well drilling rig

• road and high-rise building foundation exploration
• all kinds of concrete structure inspection holes
• river embankments
• subgrade grouting holes
• drilling and direct grouting
• civil water well
• ground temperature central air conditioners.

3. Parameters of XYC-200 vehicle-mounted water well drilling rig

XYC-200 vehicle-mounted water well drilling rig
Drilling depth(m)		30-200
Drilling diameter(mm)		300-75
Drilling angel(mm)		90-75
Spindle rotating speed(r/min)		64/128/287/557
Spindle stroke(mm)		450
Main hoisting capacity (single line)(Kg)		1600
Main hoisting line capacity (m)		35
Hoisting speed(r/s)		17/35/75/151
Wireline diameter(mm)		12.5
Mast height(mm)		7000
Mast effective height(mm)		6500
Kelly/active pipe(mm)		59*53
Drill rod(mm)		42/50/60
Drill rig weight(kg)		1150
Power unit		Model	ZS1115 diesel engine
		Rated power	14.7kw/2200rpm
BW-160 mud pump		Rated flow(l/min)	160
		Rated pressure(mpa)	1.3
		Driving power(kw)	5.15
		Main machine weight (kg)	190
		Dimension(mm)	1110*725*965
Chassis	Model	95hp light truck The 3.3 meter steeplechase double light card
	Drive mode	4*2
	Power unit	Model	Quanchai 4B2-95C40
		Emission standard	GB3847-2005,GB17691-2005Ⅳ
		Rated power(kw)	70
		Rotating speed(r/min)	3200
