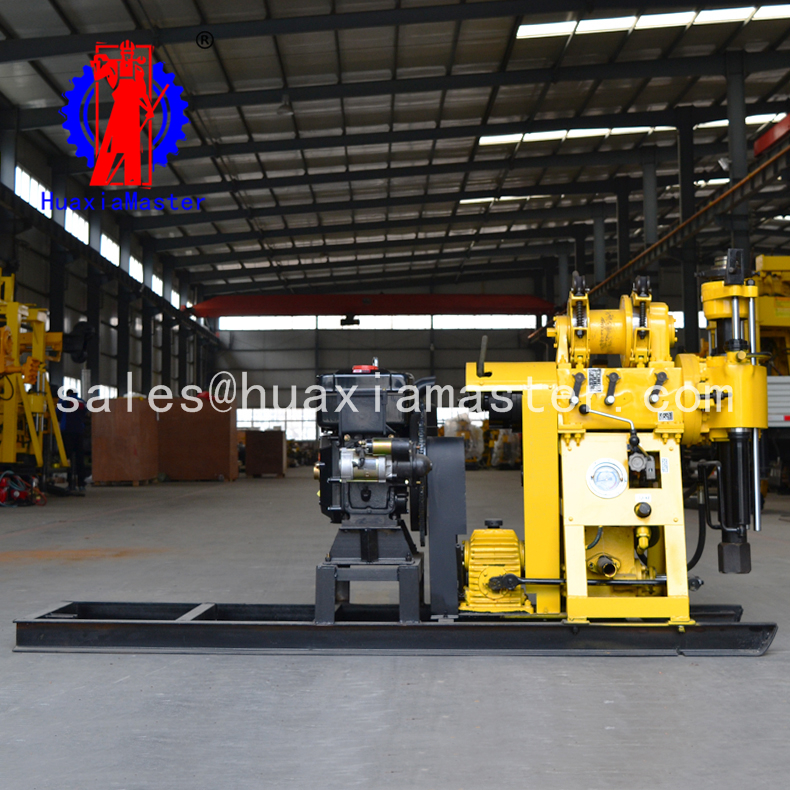

.Applications of HZ-200YY water well drilling rig

HZ-200YY water well drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil water wells and ground temperature central air-conditioner.

2. Features of HZ-200YY water well drilling rig

• the highest speed can reach 1045r/min with 5 gears, which improves drilling efficiency
• adopted 53*59 drilling rod, which has high rigidity and strong delivery torque.
• equipped with national patent technology-taper clutch, made the machine easy to operate and free of maintenance.
• using large module planetary gear and adding supporting frame, which highly increased hoisting and braking ability of the winch.
• vertical spindle are fixed by four groups of bearings to ensure that the core machine is rigid enough for gravel layer and other complex geological conditions.

3. Parameters of HZ-200YY water well drilling rig

Max open hole diameter	300mm
End hole diameter	75mm
Drill rod diameter	60mm
Drilling angle	90
Drill weight (without power)	975kg
Triangle conveyer belt	B950 * 4; B1700 * 3
Main machine moving distance	300mm
Power	Diesel engine 22HP
	Electric motor 15kw
Spindle
Spindle speed	64/128/287/557r/min
Spindle stroke	450mm
Hoist
Max. lifting capacity	2400kg
Single line lifting speed	0.41/0.82/1.64 m/s
Wire rope diameter	13mm
Wire rope length	35m
Reel diameter	140mm
Hug floodgate diameter	260mm
Hug floodgate belt width	70mm
Mud pump
Type	Horizontal single-urn twin-action
Displacement	Diesel engine 170L/min
	Electric motor 150L/min
Maximum pressure	3mpa
Work pressure	1.5mpa
Inlet pipe diameter	40mm
Outlet pipe diameter	30mm
Triangle conveyer belt	B1728mm
