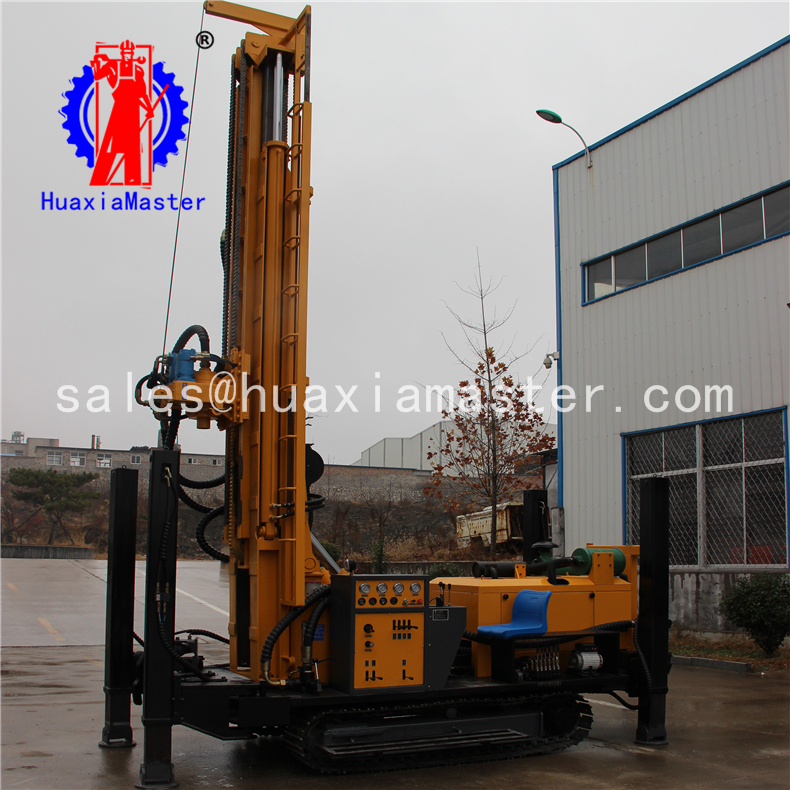

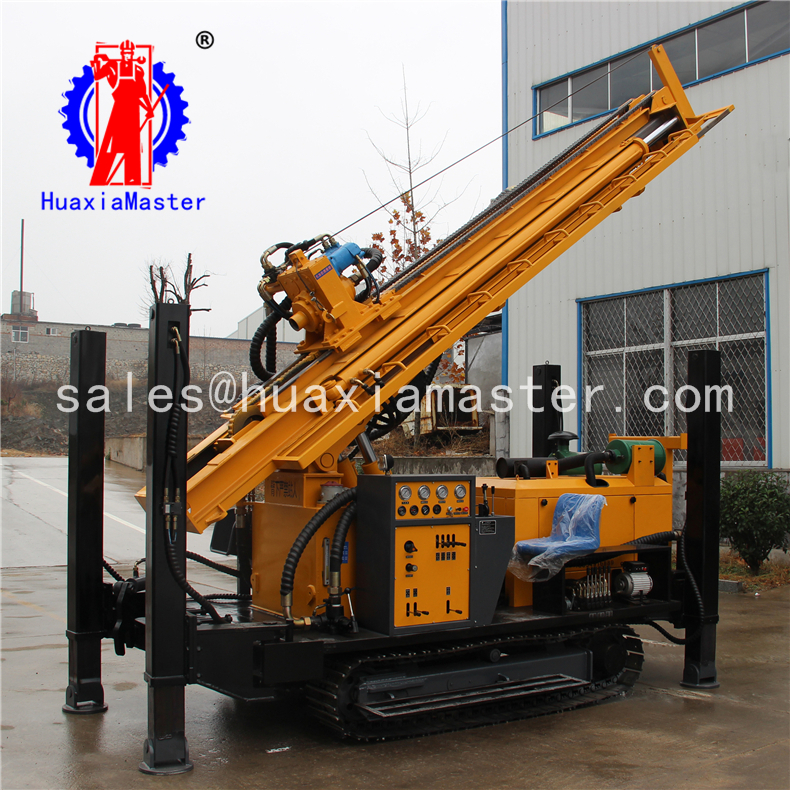

FY300 crawler pneumatic water well drilling rig diamond core rock sample machine for sale
FOB Reference Price / Min.Order Quantity
USD
4000.00-6000.00
/ Set/Sets |
1.00 Set/Sets (Min. Order)
Processing Time:7 days
Packaging Details:
export wooden box
Port: Qingdao
Payment Terms: , ,
- The applications of FY300 crawler pneumatic water well drilling rig
- civil engineering drilling
- geothermal drilling,
- drilling with large diameter and deep drilling footage
- It’s fast, flexible and efficient
- The specifications of FY300 crawler pneumatic water well drilling rig
|
Model
|
FY300
|
|
Gross weight
|
t
|
8.8
|
|
Dimension
|
mm
|
4350*1850*2750
|
|
Aperture
|
mm
|
140-325
|
|
Drilling depth
|
m
|
300
|
|
Feed stroke
|
mm
|
6000
|
|
Travel speed
|
km/h
|
2
|
|
Grade ability
|
max.
|
30°
|
|
Rising height from ground
|
mm
|
230
|
|
Wind pressure
|
mpa
|
1.7-3.3
|
|
Air consumption
|
m³/min
|
23
|
|
Engine power
|
kw
|
85
|
|
Rotary speed
|
rpm
|
55-115
|
|
Rotation torque
|
n.m
|
7200-8500
|
