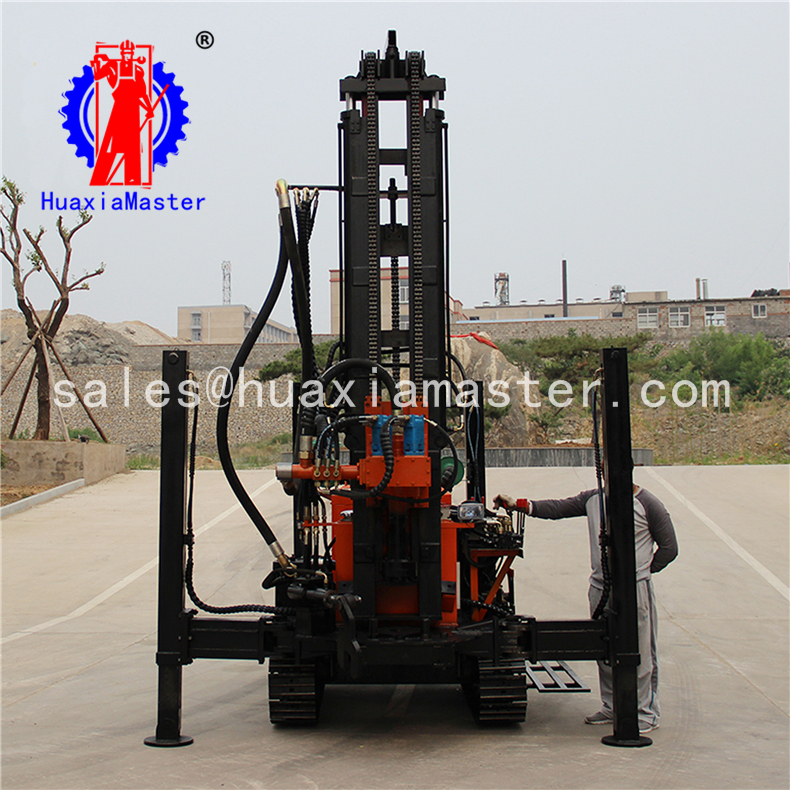

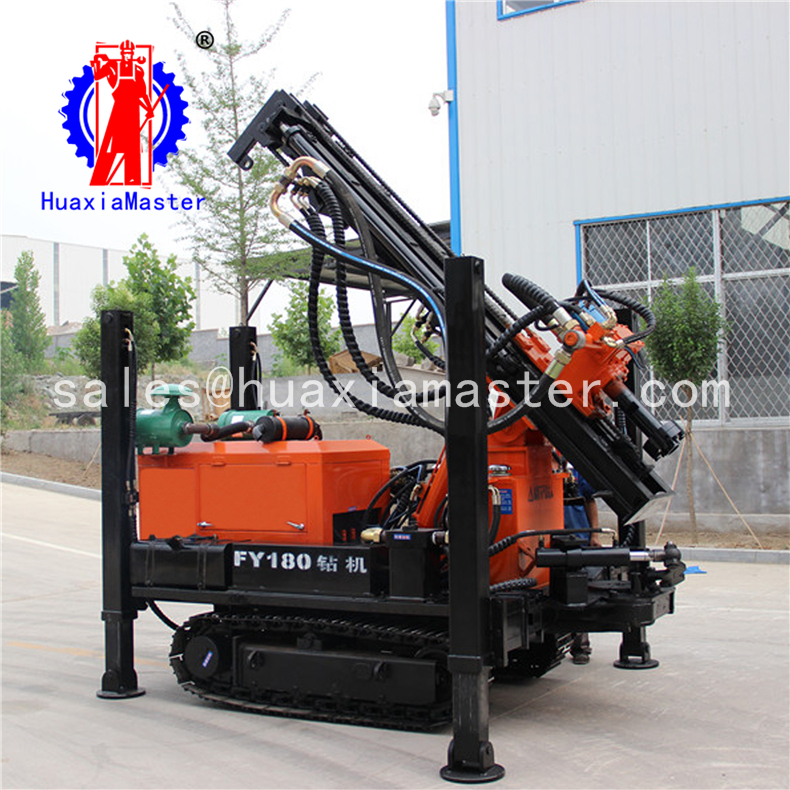

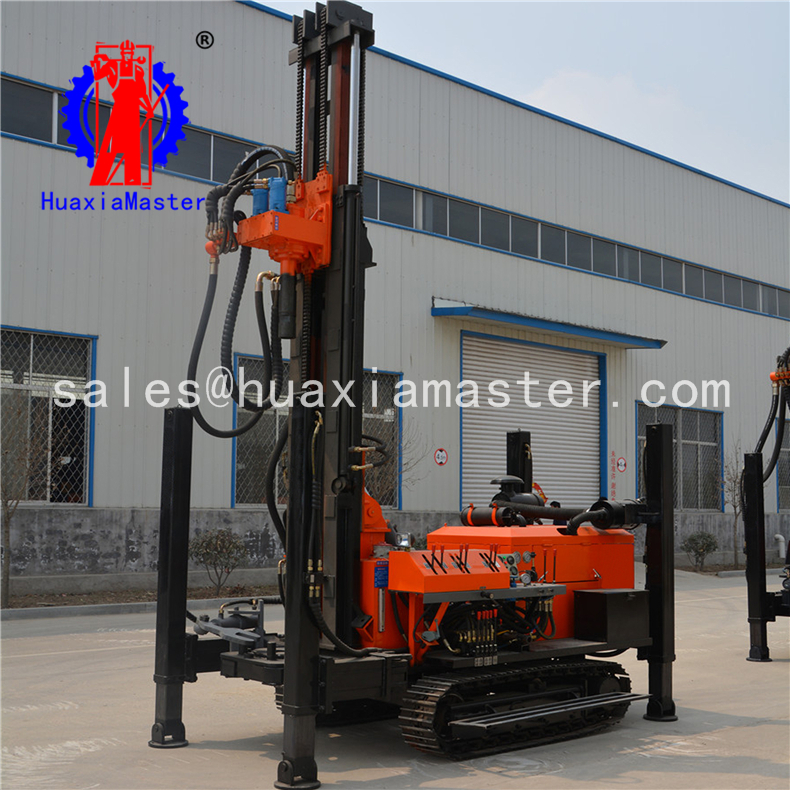

FY180 crawler pneumatic water well drilling rig
FOB Reference Price / Min.Order Quantity
USD
5000.00-7000.00
/ Set/Sets |
1.00 Set/Sets (Min. Order)
Processing Time:7 days
Packaging Details:
Export Wooden Box
Port: Qingdao
Payment Terms: , ,
The applications of FY180 crawler pneumatic water well drilling rig
- civil engineering drilling
- geothermal drilling
- drilling with large diameter and deep drilling footage
- It's fast, flexible and efficient
2.The specifications of FY180 crawler pneumatic water well drilling rig
|
model
|
FY180
|
|
Gross weight
|
T
|
3.8
|
|
Dimension
|
mm
|
3800*1550*2350
|
|
Aperture
|
mm
|
130-254
|
|
Drilling depth
|
m
|
180
|
|
Feed stroke
|
mm
|
3000
|
|
Travel speed
|
km/h
|
2.5
|
|
Grade ability
|
Max.
|
30°
|
|
Rising height from ground
|
mm
|
250
|
|
Wind pressure
|
Mpa
|
1.7-2.5
|
|
Air consumption
|
m³/min
|
15-27
|
|
Engine power
|
kw
|
42-65
|
|
Rotary speed
|
rpm
|
48-70
|
|
Rotation torque
|
N.m
|
4200-5600
|
