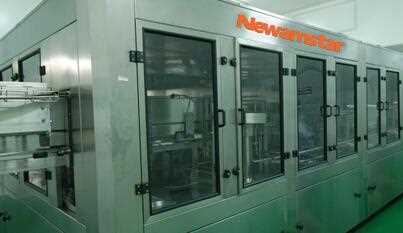

Products can be handled Pure water, mineral water, spring water, etc. Containers can be handled PET bottles with different volumes and shapes Filling system Gravity filling Capacity 5000BPH-80000BPH Technical features It adopts technology of air conveyor direct connect with bottle infeed starwheel instead of screw and conveyor. It is easier and more simple to change over bottle size. Adopt neck handling technology to convey bottles. There is no need to adjust the height of equipment and only need to change some spare parts. High speed filling line adopts bottle gripper conveying technology. It is free to change over bottle size and the working table inside the machine is more laconic. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. The electric system is from international brand and achieves the national food hygienic standard. The bottle-out starwheel is helical structure. While changing over bottle size, it is no need to adjust bottle-out conveyor height.

Main composition 3-in-1 monobloc is composed of rinser, filler, capper, machine base, covering windows, main motor and transmission system, cap unscrambler and electric control system, etc. The overturning device of the rinser is mainly composed of water distributor, bottle gripper, upper rotary tray, guide trackle, protection cover, water spraying device and water collection tray. Filling device is mainly composed of filling barrel, filling valve, guide rail, elevating device, elevating device, etc. Capping device is composed of cap unscrambler, cap falling chute and capper. The auxiliary (or optional) equipment include rinsing water recycle tank, bottle-in air conveyor and bottle-out conveyor. In addition, the manual bottle feeding table (or bottle unscrambler) and automatic cap elevator can be equipped according to customer requirement.
