The machine could be separated to 3 modules. The height of the bottle-out conveyor is adjustable. Bottles are conveyed to rinser, filler and capper through starwheel and conveyed out finally through bottle-out conveyor. Equip alarm device for bottle block, bottle absence, cap absence and overload. The machine meets the national food hygienic standard, with high automation and easy to operate.

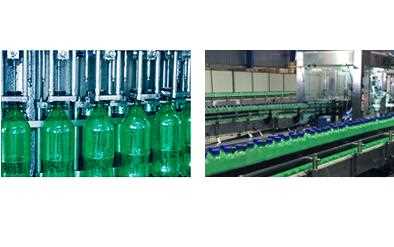

Products can be handled Cola, carbonated water, soda water, etc. Containers can be handled PET bottles with various volumes and shapes Filling system Isobaric filling Capacity 5000BPH—40000BPH Technical features Adopt technology of air conveyor direct connect with bottle infeed starwheel and neck handling technology to convey bottles. High speed filling line adopts bottle gripper conveying technology. It is free to change over bottle size and the working table inside the machine is more laconic. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination. Pressure liquid carousel. High speed line adopts annular liquid carousel. High speed and mass flow filling valve enssures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. The electric system is from international brand and achieves the national food hygienic standard. The bottle-out starwheel is helical structure. While changing over bottle size, it is no need to adjust bottle-out conveyor height.

Main composition 3-in-1 monobloc is composed of rinser, filler, capper, machine base, covering windows, main motor and transmission system, cap unscrambler and electric control system, etc. The overturning device of the rinser is mainly composed of water distributor, bottle gripper, upper rotary tray, guide trackle, protection cover, water spraying device and water collection tray. Filling device is mainly composed of filling carousel, filling valves, guide track, elevation device, elevating device, and bottle blocking device, etc. Capping device is composed of cap unscrambler, cap falling chute and capper. The auxiliary (or optional) equipment include rinsing water recycle tank, bottle-in air conveyor and bottle-out conveyor. In addition, the manual bottle feeding table (or bottle unscrambler) and automatic cap elevator can be equipped according to customer requirement.

Main composition 3-in-1 isobaric filling system Empty bottle sterilizing system Automatic CIP cleaning system Bottle showering and warming system Full automatic bottle unscrambler Labeling system Air conveyor Automatic transferring system Manual bottle loader/automatic unloader Air purification system
