Pneumatic Operated Concentric Repair Kit Butterfly Valve Series is the valve type which in the flow channel using thicker polymer material lining technology. The function of lining material is completed isolated the media and the valve body. The lining material with good performance of anti-corrosion.It can be used in meida like acid like acid,alkali, salt and oxidizing agents,reducing agents,organic solvent etc.

The valve is widely used in chemical, petroleum, pharmaceutical, food ,metallurgy, paper and other industries for shut off and control the media flow.

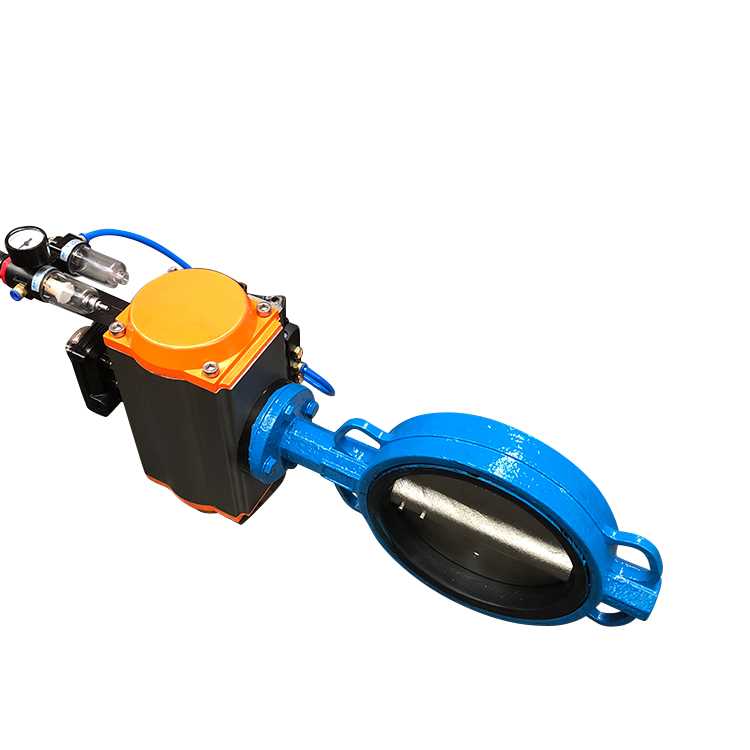

Product Name	ASME B16.34 Pneumatic Operated Concentric Repair Kit Butterfly Valve Series
Model Number	CJD
Nomina Diameter	DN50~DN2000 or NPS2-NPS80
Material	Gray Cast Iron,Ductile Cast Iron,A216 WCB
Nomina Pressure	PN6/PN10/PN16,150LB
Connection	Flange/Lug/Wafer
Seat Material	NR/CR/NBR/EPDM/FPM
Operation	Worm Gear/Pneumatic/Electric/Handwheel
Structure Type	Concentric
Medium	Water,Sea Water
Certificate	CE&ISO9001:2008,API6D,API609
Application	Power Generation, Petroleum and Chemical, Refinery and Water Treatment
Design Standard	ASME B16.34
Flange Standard	ASME B16.5,ASME B16.47
Face to face dimension	API609
Pressure Test Standard	API598
Packing Details	plastic bags+plywood case
Shipping Port	Ningbo/Shanghai/Tianjin,China
Shipment Terms	FOB/CIF/CFR/EXW,ETC
Payment Terms	L/C
	30% TT deposit, the balance is paid before shipping the goods
Delivery Time	30 days after we received 30% TT deposit
