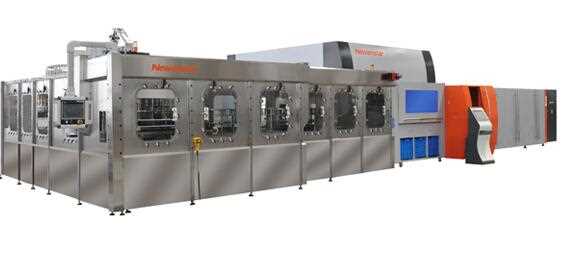

Newamstar High-speed Blowing-filling-capping Combiblock combines the blowing system, filling system and capping system in one integrated system, reducing several intermediaries suchas transmission, empty bottle handling and storage processes, which improves packaging hygienic condition and reduces packaging ross-contamination so as to improve the overall operating efficiencybut lower the energy consumption, thereby reduces the overall production cost of enterprises.

Product Range Production capacity from 12,000 BPH to 80,000 BPH. Applications It is applied to PET bottled pure water, carbonated soft drink, juice, liquid dairy, liquid condiment and household & personal care products, etc.

Stable infrared ray heating system and  independent heat balance device ensure  the stable temperature of the preform,  even color of the bottle and increase of the  output.

Special designed twice-blowing system  can monitor the pressure in each mold in  order to provide accurate real-time parameter  for operator. It is easy for the operator to  adjust the parameter and ensure the stability  of bottle forming.

High-speed and high-accuracy diaphragm type  filling valve: Equip air back channel which is  separated from liquid carousel, by which, the air  replaced from the PET bottle won't enter liquid  carousel to avoid second pollution. Equip cleaning  dummy bottles which can realize online CIP.

Sanitary and washable capper：Optimized  cam surface design ensures the minimum  impact force of the capper .Bottle discharging  starwheel is screwing decently, so it is  unnecessary to adjust the conveyor height  during bottle format change.
