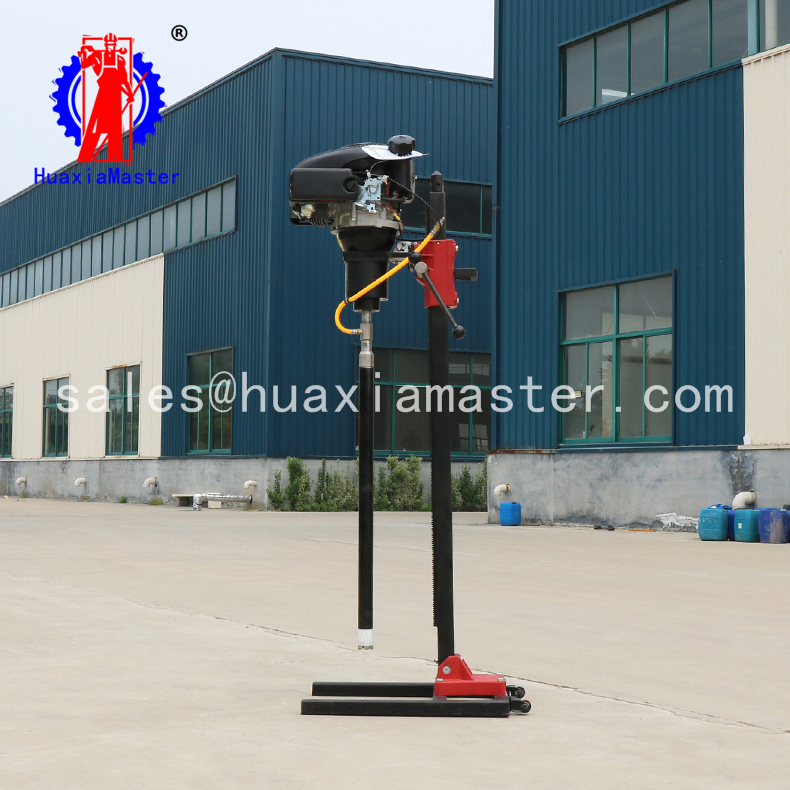

1. Brief introduction of BXZ-2L vertical backpack core drilling rig

BXZ-2L vertical backpack core drilling rig is a removable core sample drilling rig. The rig is mainly used in mineral exploration, geochemical exploration, shallow sampling, geoscience research, geotechnical engineering, engineering investigation, oil field exploration, water conservancy engineering survey, highway engineering survey and so on.

The main features of BXZ-2L vertical backpack core drilling rig are compact structure, detachable, small volume, light weight, easy to carry; imported kohler brand gasoline engine with large horsepower and guaranteed drilling depth with drilling frame. Field operation is more convenient and safe.

1. Specifications of BXZ-2L vertical backpack core drilling rig

BXZ-2L vertical backpack core drilling rig
Engine brand	Kohler
House power	7.75 HP
Fuel tank capacity	1400 ML
Transmission mode	gear-driven
Starting mode	recoil pull starter
Clutch mode	automatic clutch
Coring mode	rotary
Rate of penetration	540r /min
Gear ratio	7:1
Transmission mode	CVT (continuously variable transmission)
Drill pipe diameter	32mm
Drill pipe total length	30m
Drill hole diameter	32-120mm
Net weight	52 kg
Size	550*450*420mm
Packing measurement	1050*600*550mm

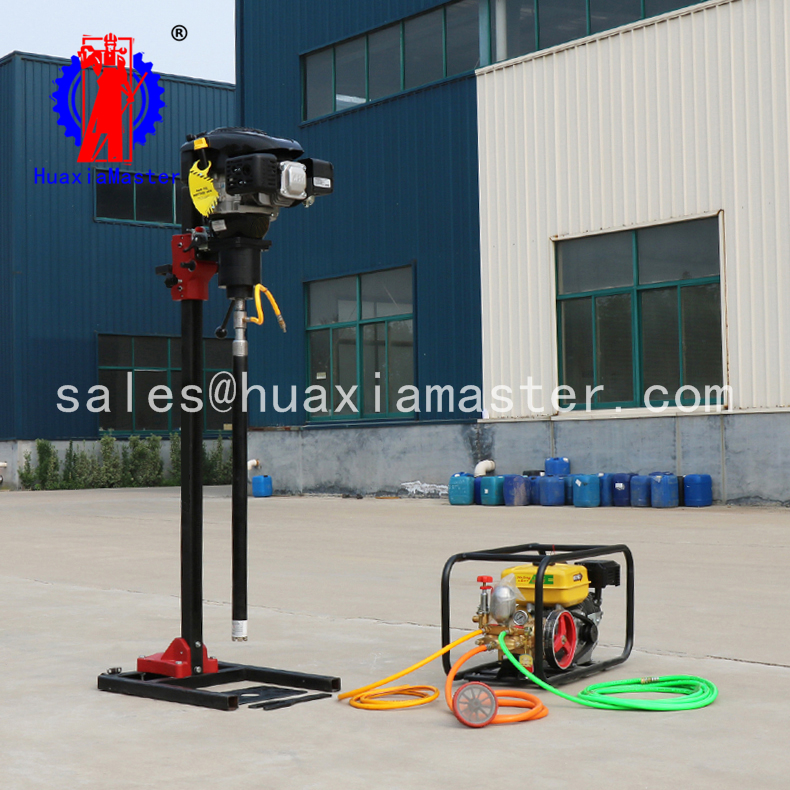

1. Configuration list of BXZ-2L vertical backpack core drilling rig

Item	Parameter	Unit	Number
Vertical backpack core drilling rig	BXZ-2L	set	1
Drilling pipe including joint(mm)	32 *800	pc	38
Reducing nipple(mm)	46	pc	1
Coring barrel(mm)	46 *700	pc	1
Alloy bit(mm)	46	pc	1
Diamond bit(mm)	46	pc	1
Reducing nipple(mm)	60	pc	1
Coring barrel(mm)	60*700	pc	1
Alloy bit(mm)	60	pc	1
Diamond bit(mm)	60	pc	1
Mud pump (gasoline engine)		set	1
Inlet hose pipe(mm)	20*1000	pc	1
Inflow water filter		pc	1
Outlet hose pipe(mm)	13*1000	pc	1
Water supply pipe(mm)	13*4500	pc	1
Safety clamp		grasp	1
Pipe wrench		grasp	2
Safety plate		pc	1
Spark plug		pc	1
Ring gasket		set	1
Water seal		set	1
