No.

Parameter

Unit

BGJ-6 A

1

Output

Filling speed

PCS

13000

Weight/piece

g

50~250* (Cone ice-cream is 50-90g/piece)

2

Shape of filling container

Cone wrapping paper, regular-shape plastic or paper cups

3

Power

Voltage

V

380

Frequency

Hz

50

4

Total power

Kw

3

5

Compressed Air

Pressure

Mpa

>0.5

consumption

m³/min

4

6

Machine Weight

Ton

2.2

7

Dimension(L×W×H)

mm

6000×1500×2300

NO

Model

QTY

Price

1

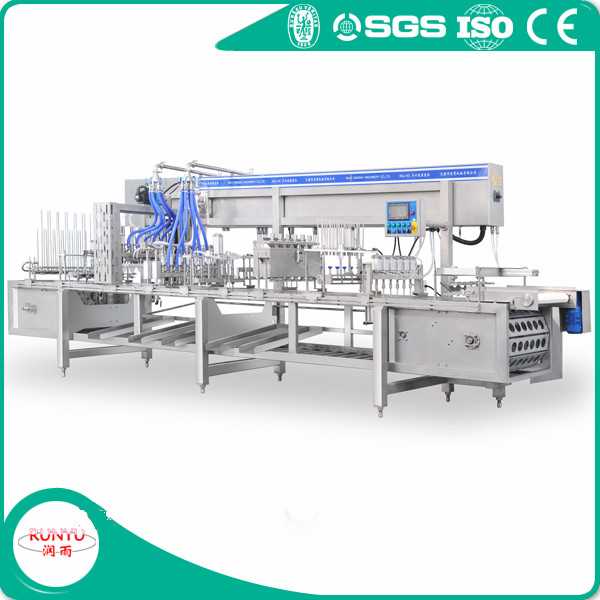

BGJ-6A Ice Cream Filling Machine

Basic machine

1 unit

    USD 49300

A

For cone with Wafer

1. cone calibration

1 unit

2. Chocolate spray with tank& piston pump

1 unit

3. Filling ice cream

1 unit

4. Sauce topping

1 unit

5. Dry Ingredients doser

1 unit

6. Chocolate sprinkle

1 unit

7. Lid Dispenser

1 unit

8. Paper cone pleating

1 unit

9.Vertical Ejection

1 unit

10. Topping mechanism

1 unit

B

For Plastic cup

1 cup dispenser

2 ice cream filling

3 Lid Dispenser

4 Lid pressing

5 Vertical ejection

This line need two set of nylon cup holder.

The Material is SS304.

Total electric consumption is 6 kw

All the electric parts Schneider, PLC is Siemens

 The machine is variable speed drive

PLC Schneider

Pneumatics valves and control Festo
