Product Name： 275W CIGS FLEXIBLE CIGS THIN FILM SOLAR PANELS 12.5% efficiency

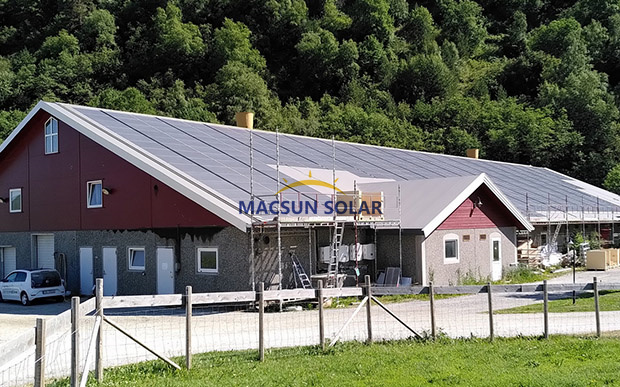

Designed specially for rooftops   Integrates with roofing surface No mounting hardware  No roof penetrations  No wind load Low profile

Electrical Specifications
Capacity rating  Pmax  275 W
Tolerance of Pmax  %  +10 / -7%
Module aperture area efficiency  %  12.5%
Rated voltage  Vmpp  51.5 V
Rated current  Impp  5.3 A
Open circuit voltage  Voc  67.6 V
Short circuit current  Isc  6.3 A



Mechanical Specifications
Dimensions：  5745 x 494 x <3 mm (226 x 19.4 x <0.12 in)
Weight:  7.2 kg without adhesive (2.5 kg/m2) 9.3 kg with adhesive (3.3 kg/m2)
Junction Box - Top Mounted：  TE Connectivity SOLARLOKTM Micro Junction Box
Cables：  4 mm2 dual rated with SOLARLOKTM connectors
Junction Box - Bottom Mounted：  MC-JM/FM (MC4 Connectors)
Front Sheet:  Non-stick ETFE
Solar Cells:  108 CIGS cells (210 x 100 mm)
Adhesive:  ADCO HelioBondTM PVA 600BT butyl mastic
Hot Spot Protection:  Bypass diodes at each cell; 1 at junction box
Materials:  Lead free and exempt from RoHS requirements
Maximum Series Fuse Rating:  10 Amp
Color Options:  Black (B) or White (W) backsheet behind cells
