| Product Name： M10 182mm Topcon Solar Cells MS-SC182MTB16 |
|
Geometry Characteristics：
Product model:182 mono-crystalline Bifacial solar cell
Geometry：182.2mmx182.2mm±0.5mm, Φ 247.28mm±0.5mm
Cell thickness:130μm±13μm

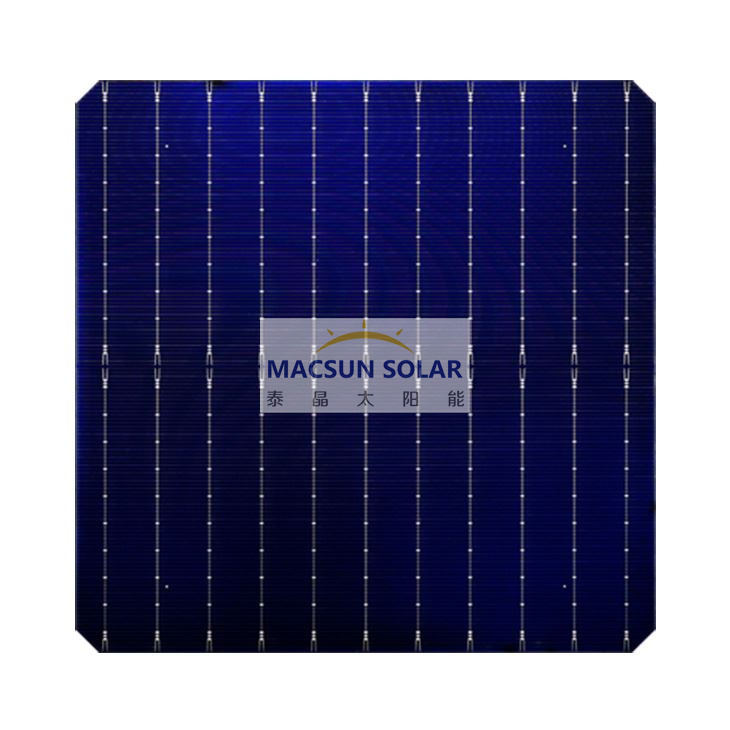

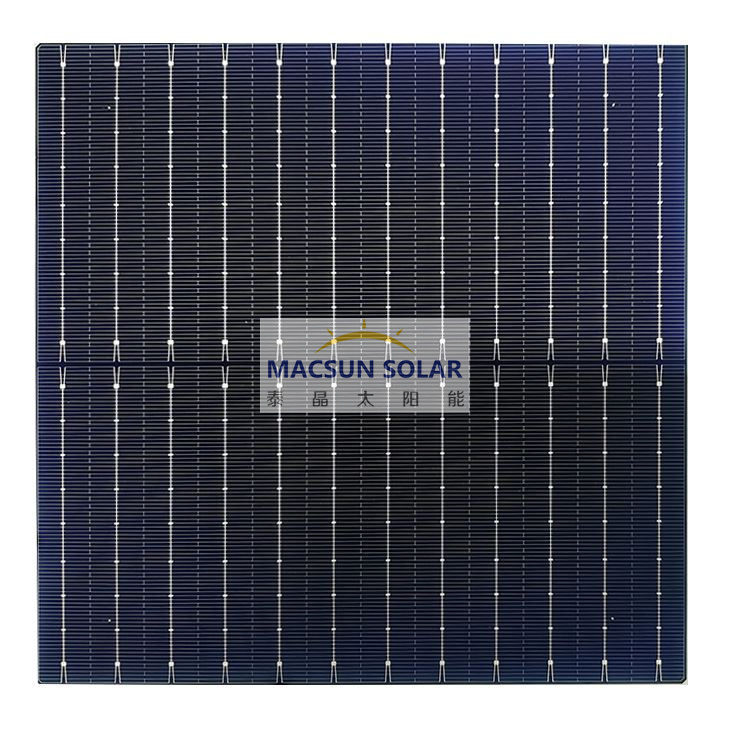

Front design：16 busbars, 12 pads, 132 fingers, busbar width 0.036±0.02mm

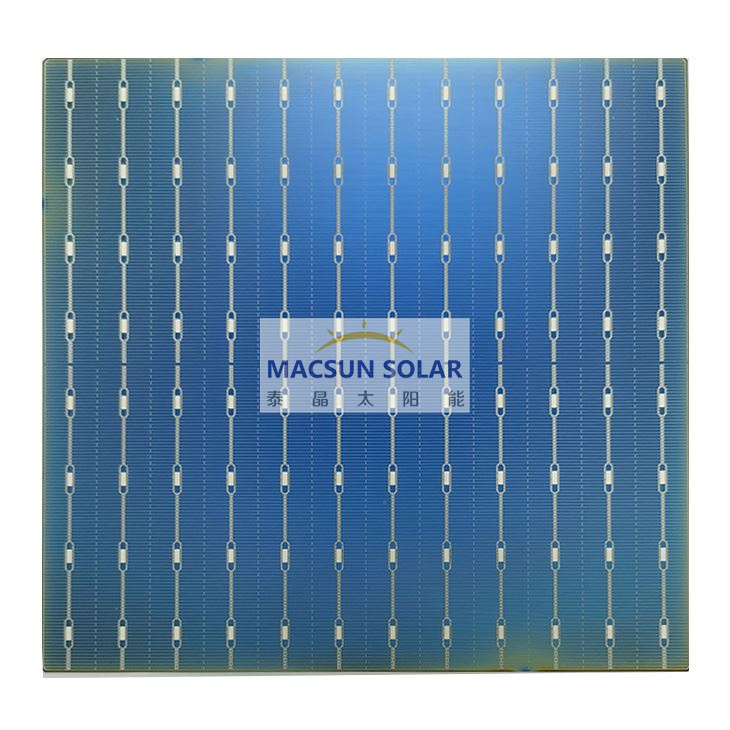

Rear design：16 busbars, 12 pads, 134 fingers, busbar width 0.036±0.02mm
|
Product Characteristics：
High efficiency, Eta≥24.5%
Bifacial rate up to 80%
Light-induced Degradation is "0"
Superior anti-PID performance
Temperature coefficient of Power as low as -0.32%/K
Relative conversion efficiency≥97% under low light(200W/m2)
Lower Cell to Module (CTM) Loss Rate, more suitable for high- efficiency module
Quality Control：
The accuracy of the efficiency test is controlled within ±0.1%
Electrical performance, appearance, EL 100% automatic inspection
Calibration cells are traceable to Fraunhofer ISE
Temperature Coefficients：
TkCurrent： 0.045%/K‘
TkVoltage：−0.25%/K
TkPower：-0.32 %/K
