1. Applications of HZ-200Y hydraulic water well drilling rig

Civil water well,geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, ground temperature central air conditioners.

1. Features of HZ-200Y hydraulic water well drilling rig

• adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.
• the drilling rig is equipped with taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.
• for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
• vertical spindle are fixed by four groups of bearings to ensure that the water well drilling rig is rigid enough for gravel layer and other complex geological conditions.
• we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.

1. Specifications of HZ-200Y hydraulic water well drilling rig

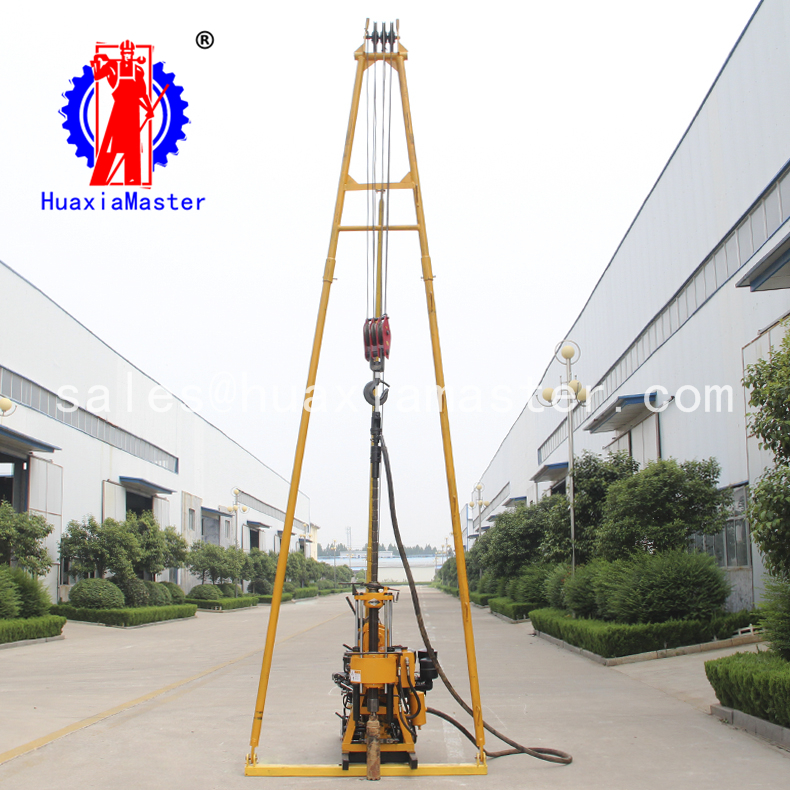

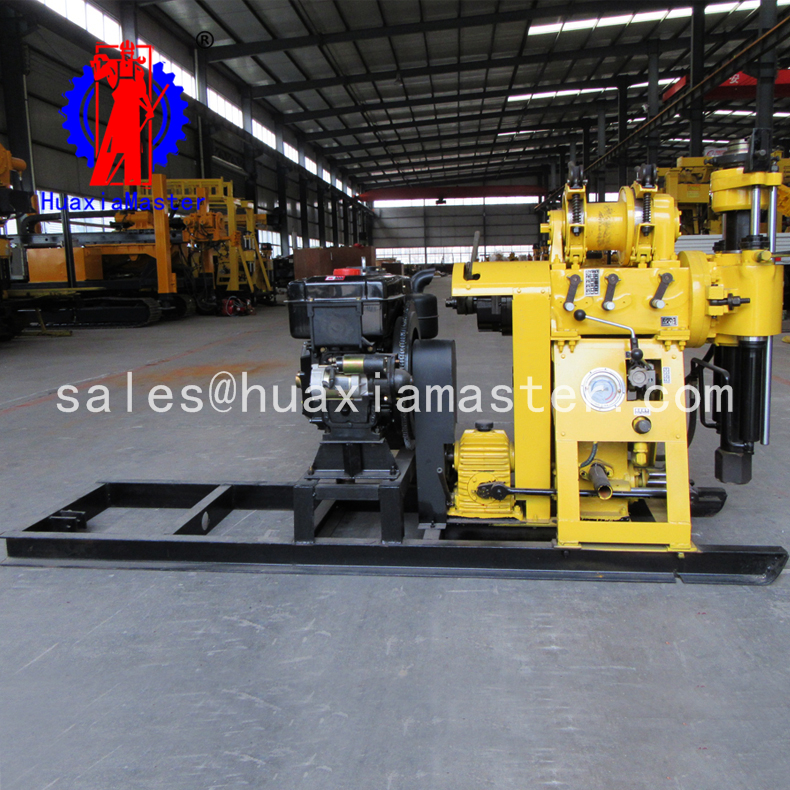

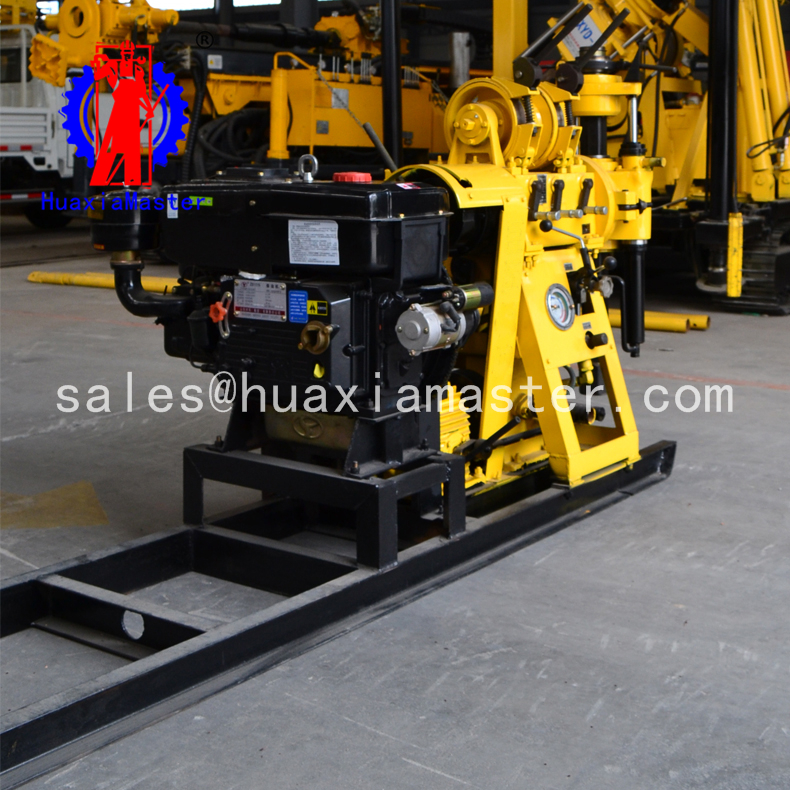

HZ-200Y hydraulic water well drilling rig
Drilling depth	200m
Max open hole caliber	300mm
End hole caliber	75mm
Drill rod caliber	60mm
Drilling angle	90°-75°
Drill weight(without power)	1100kg
Triangle conveyer belt	B950*4  B1700*3
The main machine moving distance	300mm
Power	Diesel engine 22HP   Electric motor 15kw
Spindle
Spindle speed	64/128/287/557 r/min
Spindle stroke	450mm
Hoist
Max.lifting capacity	2400kg
Single line lifting speed	0.41/ 0.82/1.64m/s
Wirerope caliber	13mm
Wirerope length	35m
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Mud pump
Type	Horizontal single-urn twin-action
Displacement	Diesel engine 170L/min Electric motor 150L/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Inlet pipe caliber	40mm
Outlet pipe caliber	30mm
Triangle conveyer belt	B1728mm
Mud pump
Type	CBT—F—314
Triangle conveyer belt	B1100× 1
