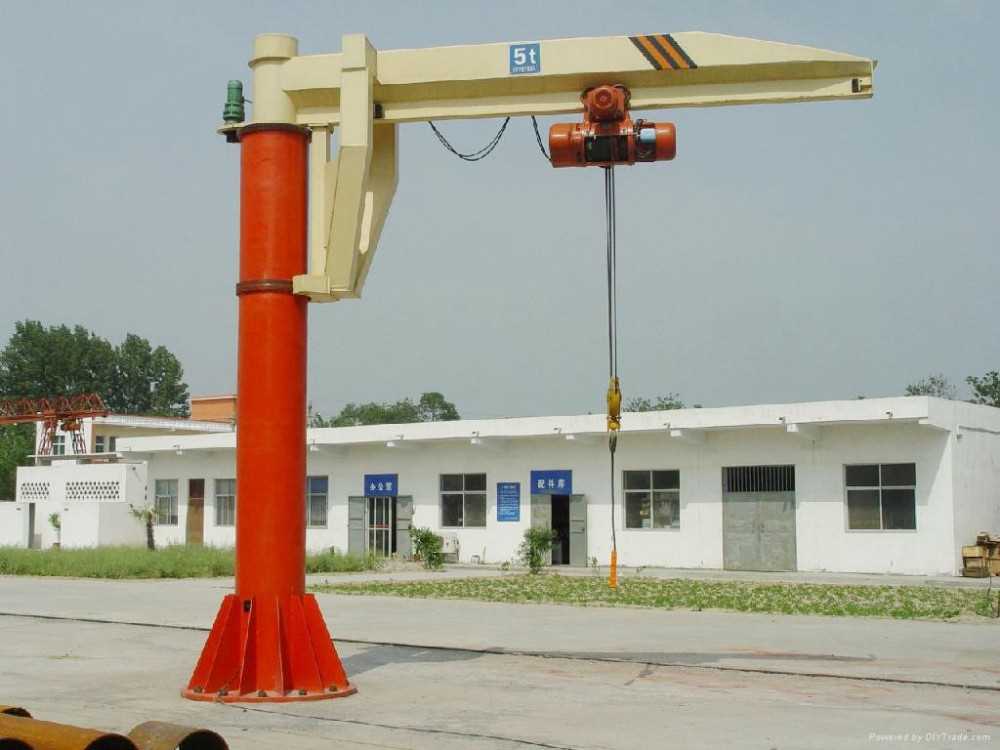

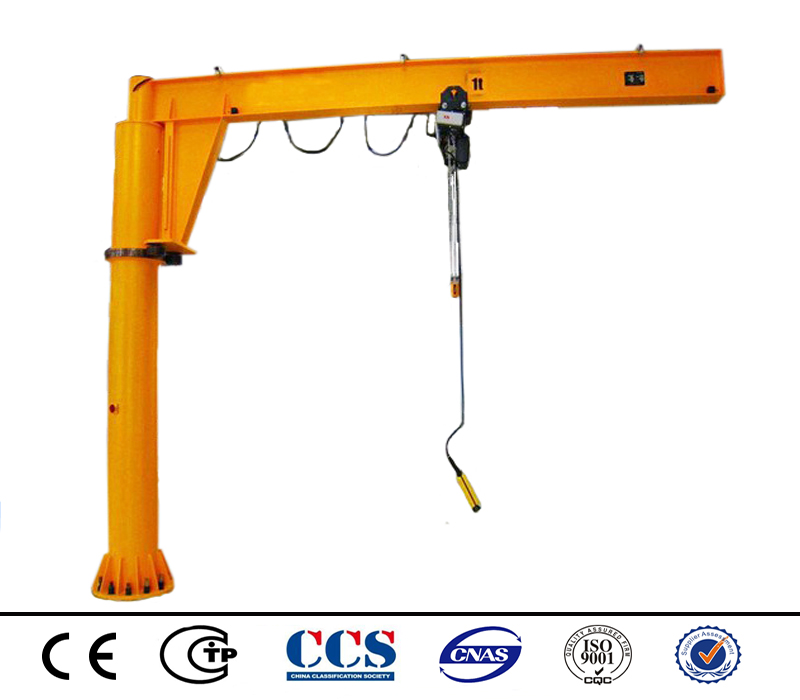

Bz series electric hoist column mounted jib crane 5 ton for sale 1
FOB Reference Price / Min.Order Quantity
USD
1000.00-10000.00
/ Set/Sets |
1.00 Set/Sets (Min. Order)
Processing Time:10days
Packaging Details:
Coulmn and cantilever are packaged by woven plastic cloth,
electricals and other parts packed by high quality plywood crate.
Port: Shanghai Qingdao Tianjin
Payment Terms: , , , ,

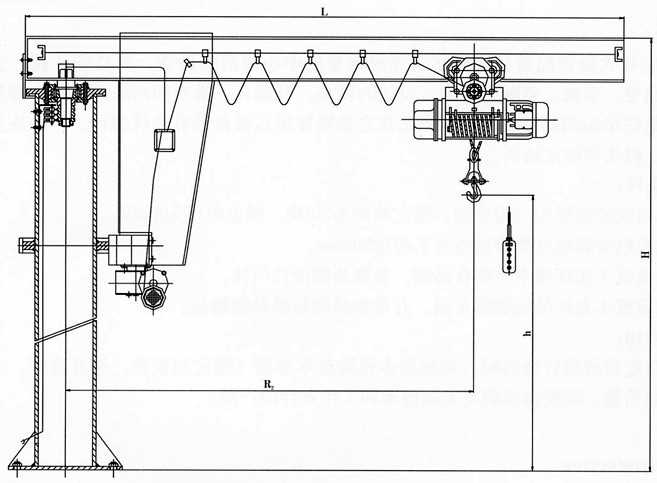

1.Product Outline
Jib crane is composed by the vertical shaft, revolving arm, rotating shaft, hoist, the bottom of the vertical shaft is fixed on the concrete base. Revolving arm driven by cycloidal pinwheel reducer, electric hoist on the cantilever beam as a straight line running from left to right, and lifting heavy objects.It has two types,one is BZD type,it is used with wire rope electric hoist.The other type is BZN model, it is used with chain electric hoist.

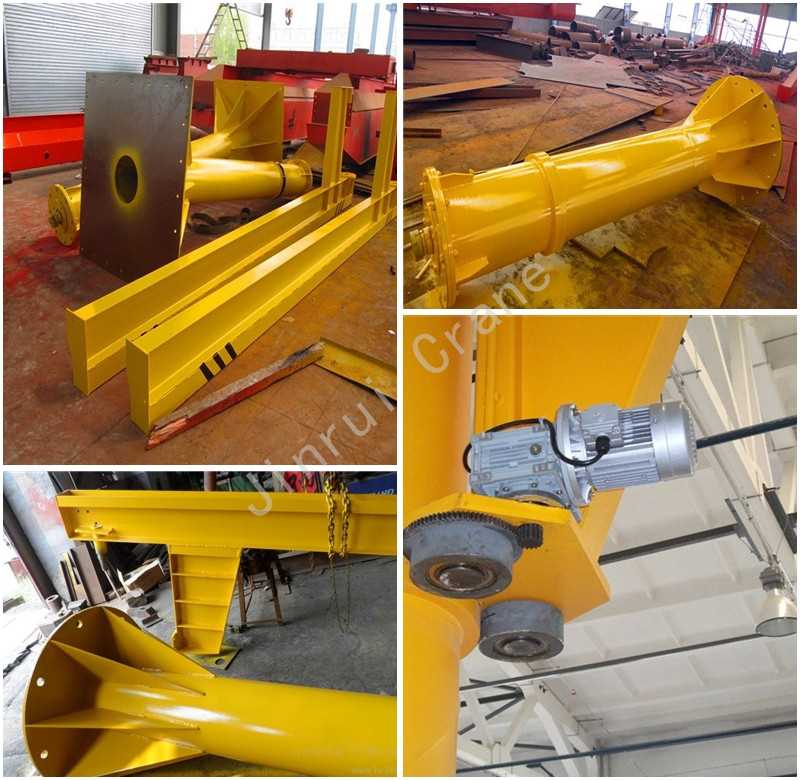

2.Product Details
Features
- work within the 360 degrees to lift, move and materials handling.
- Pendent line with press button or remote control or both control methods.
- Can be used to match with single or double speed electric hoist and chain hoist.
- Suitable to work in the dock, warehouse, workshop and fixed working conditions.
- Unique structure, safe and reliable operation, high efficiency and energy-saving.
Safety feature
- Overload protection device
- Top quality long time bearing polyurethane materials buffer
- Crane traveling limit switch
- Voltage lower protection function
- Emergency stop system
- Lifting height limit device

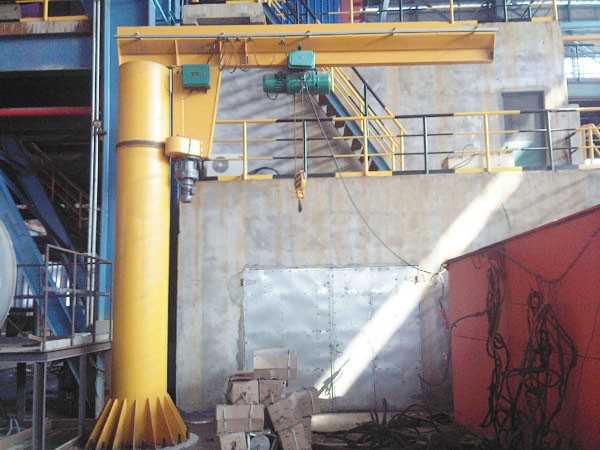

4. Product other types
