1.Product Outline
Jib crane is composed by the vertical shaft, revolving arm, rotating shaft, hoist, the bottom of the vertical shaft is fixed on the concrete base. Revolving arm driven by cycloidal pinwheel reducer, electric hoist on the cantilever beam as a straight line running from left to right, and lifting heavy objects.It has two types,one is BZD type,it is used with wire rope electric hoist.The other type is BZN model, it is used with chain electric hoist.

2.Product Details
Features
work within the 360 degrees to lift, move and materials handling.
Pendent line with press button or remote control or both control methods.
Can be used to match with single or double speed electric hoist and chain hoist.
Suitable to work in the dock, warehouse, workshop and fixed working conditions.
Unique structure, safe and reliable operation, high efficiency and energy-saving.

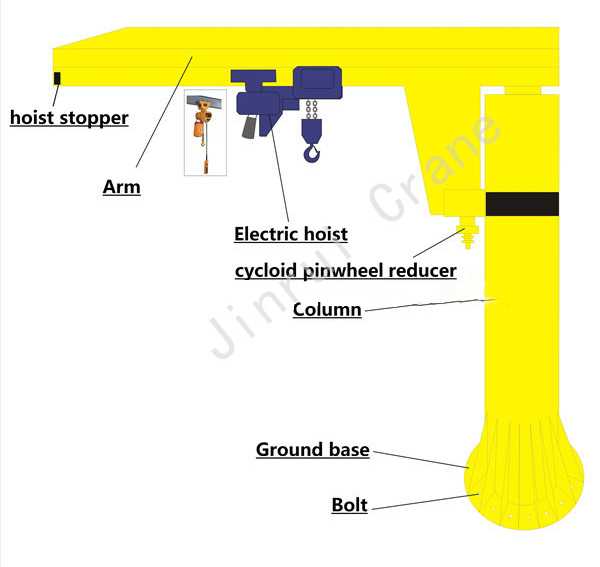

3. Product Structure
Safety feature
Overload protection device
Top quality long time bearing polyurethane materials buffer
Crane traveling limit switch
Voltage lower protection function
Emergency stop system
Lifting height limit device

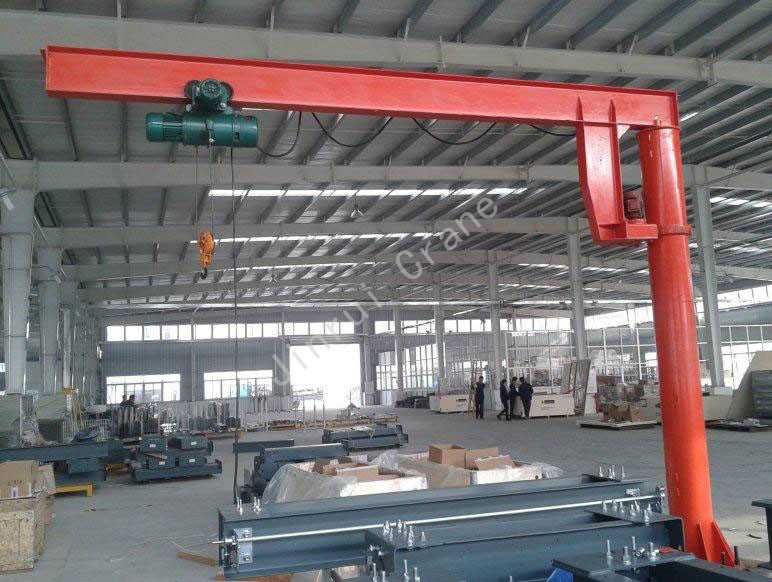

    BZD type jib crane

  BZN type jib crane
