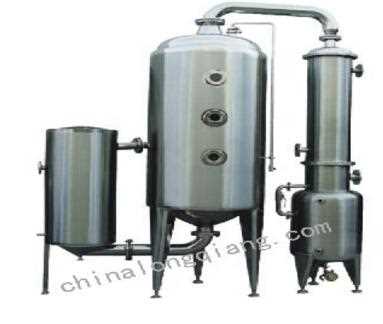

single-effect outer circulation concentrator

The device is to concentrate the material in the occasions such as China traditional drug, west drug ,dextrose , starch sugar, oral liquid, chemistry、foodstuff、monosodium glutamate and milk product and to reclaim the industrial organic solvent such as alcohol .It is suitable to concentrate the thermal sensitive material under lower temperature and vacuum with little batch number and multiple varieties.

type specifications	WZ-500			WZ-1000		WZ-1500		WZ-2000
Evaporation capacity （kg/h)	500				1000	1500		2000
Steam pressure （M pa)		<0.25
Vacuity （M pa)		0.08
Concentrate proportion		1.2-1.3
Other type size		Length	2000		2200		2500		4600
		width	1000		1200		1300		2350
		height	3000		3300		3500		5100
classification of the container		atmosphere

1. Alcohol reclamation: Large reclamation capacity and the vacuum concentration procedure make it's production capacity five
to ten times of that of the old counterpart and can lower the energy consumption for 30%, featuring little investment and high
reclamation profit. .
2. Concentrated liquid material: The device uses the modes of outer-heated natural cycle and vacuum negative pressure evaporation featuring swift evaporation with concentration proportion of 1.3; The liquid material concentrates without bubble under full seal state. The drug liquid after concentration by the device features non-contamination and thick drug taste and easy cleaning (it is just to open the up and down cover for cleaning.). The device is easy to handle and it needs a little foundation area for installation. The heater and evaporator use stainless steel for thermal purpose. The polyurethane is used as the thermal material. The surface is treated with sand grinding and surface polishing, meeting with the GMP standard.
