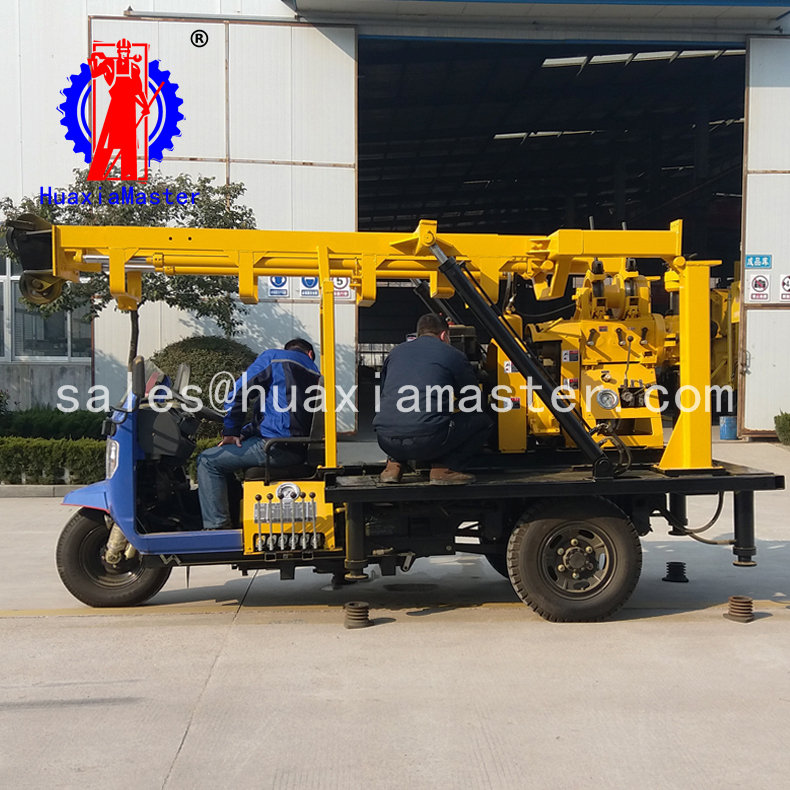

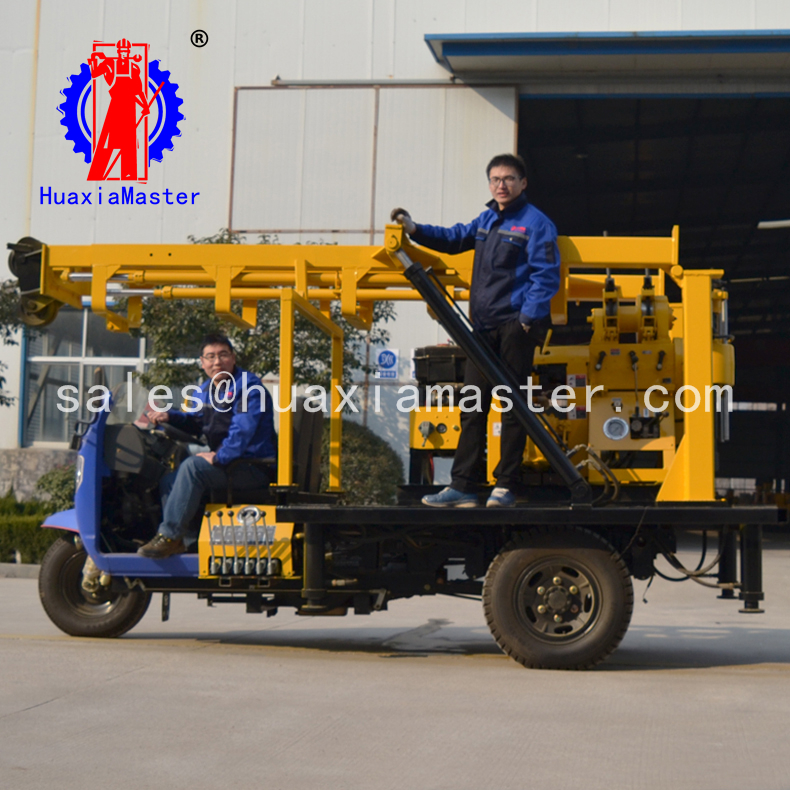

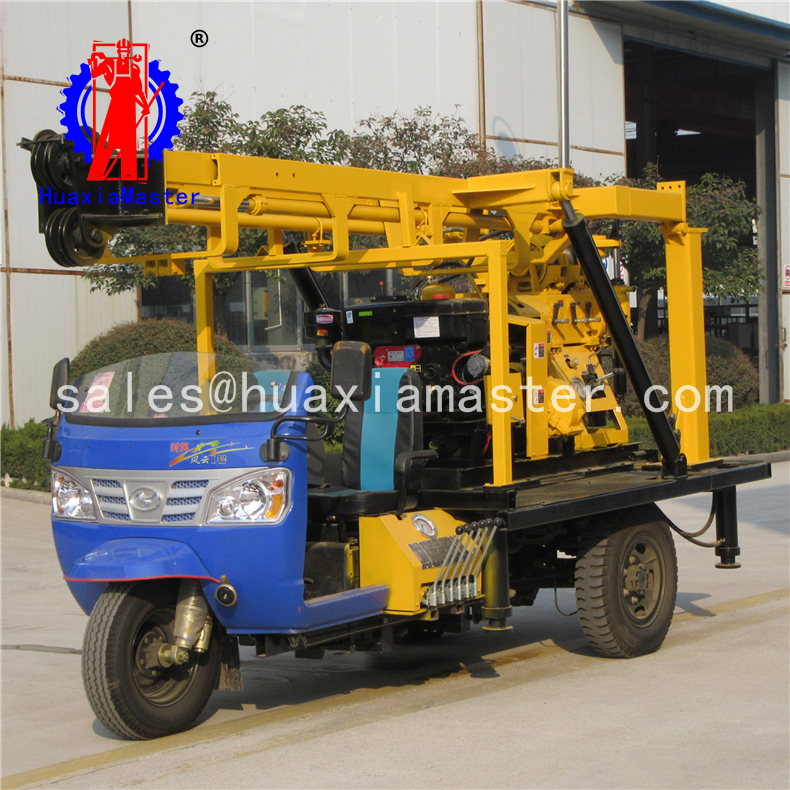

sale XYC-200A Tricycle-Mounted Hydraulic Core Drilling Rig Borehole drilling machine

FOB Reference Price / Min.Order Quantity

USD 4500.00-4600.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:within 5 days

Packaging Details: wooden packaging

Port: qingdao

Payment Terms: , , , ,

1. Characteristics of XYC-200A tricycle-mounted hydraulic core drilling rig

XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine .
The tricycle is Tricar 7YP-1475D1. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.
XYC-200A tricycle-mounted hydraulic core drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.
The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth
The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency
The drilling rig is Adopted 53*59 drilling rod, which has high rigidity and strong delivery torque
Equipped with national patent technology---taper clutch, made the machine easy to operate and free of maintenance.
Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
Vertical spindle are fixed by four groups of bearings to ensure that the core rig is rigid enough for gravel layer and other complex geological conditions.

2. Technical specification of XYC-200A tricycle-mounted hydraulic core drilling rig

Drilling depth	200m
Max. open hole diameter	75-260mm
End hole diameter(mm)	75
Drill rod diameter	50mm
Drilling tower height	6500mm
Drilling angle	90-75
Spindle
Spindle speed	64/128/287/557r/min
Spindle stroke	450mm
Hoist
Max. single line hoisting capacity	1600kg
Single line lifting speed	17/35/75/151r/min
Tightrope diameter	12.5mm
Tightrope cubic measure	35mm
Hug floodgate belt width	70mm
Mud Pump
Type	Horizontal Single Urn Twin-action
Discharge displacement	170l/min.
Diesel	S1115 22HP
Electric motor	15kw,1440r/min
Max. pressure	1.5mpa
Work pressure	0.7mpa
Water inlet diameter	30mm
Water outlet diameter	25mm
Triangle conveyre belt	B1728mm
Chassis
Chassis model	Tricar 7YP-1475D1
Drive mode	Rear wheel drive
Engine brand	Changchai ZS1115E2.
Rated power	16.2kw/2200rpm
