Quick Details

• Place of Origin: benxi, China (Mainland)
• Brand Name: benwei
• Model Number: PG42MZY40
• Usage: Car, Electric Bicycle, Fan, Home Appliance, Money machine, Currency count machine
• Certification: CCC, CE, ROHS
• Type: Gear Motor
• Torque: 900--1600gf.cm
• Construction: Series Wound
• Commutation: Brush
• Protect Feature: Drip-proof
• Speed(RPM): 3000-6000rpm
• Continuous Current(A): As your request
• Output Power: 3.8--13.5W
• Voltage(V): 12VDC,24VDC
• Efficiency: IE 2

Packaging & Delivery

Packaging Details:	foam packing inside and carton packing outside
Delivery Detail:	within 28days

Specifications

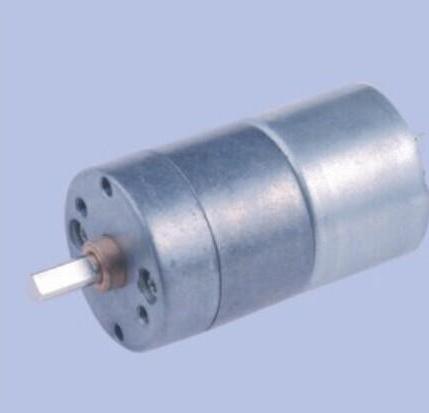

PG42MZY40 DC planetary gear motor
1> large torque, long life and low noise
2> made by pemernent magnet
3>A key on the shaft


DC Carbon-brush motor

Brand name: Twirl

Typical applications:Pan/tilt cameras, Grill,Oven, Cleaning machine, Garbage disposers, Packing bank

note machine, Coffee machine, Medical machine, Manotat, Amusement equipment, Infusion pumps,

Office equipment,Household appliances, Automatic actuator.

Weight:350-560g/pcs(approx)

Packing detail: CTN Size:34×31×H15cm 20pcs/CTN G.W.10kgs



Gearbox data for PG42:

Number of stages	1 stages reduction	2 stages reduction	3  stages reduction	4 stages reduction	5 stages reduction
Reduction ratio	3.7,   5.2	13.7,   19.2, 26.9	50.9,  71.2 99.5,  139	188,   264,   369 516,  721	699, 977, 1367,    1911, 2672, 3736
Gearbox length"L"mm	26.4	32.6	38.9	45.3	52.5
Max.Running torque	6.0 Kgf.cm	12Kgf.cm	20Kgf.cm	30Kgf.cm	50Kgf.cm
Max.Gear breaking torque	18Kgf.cm	36Kgf.cm	60Kgf.cm	90Kgf.cm	150Kgf.cm
Gearing efficiency	90%	81%	73%	65%	59%

Motor Data for ZY40:

Motor Model	Rated	No load		Maximum efficiency				Stall
	Volt	Current	Speed	Current	Speed	Torque	Power	Torque	Current
	(V)	mA	rpm	mA	rpm	gf.cm	W	gf.cm	A
40ZY123000	12	≤120	3000	≤750	2200	220	4.8	900	2.8
40ZY124500	12	≤190	4500	≤1500	3300	300	9.9	1200	6
40ZY126000	12	≤250	6000	≤3000	4500	400	18	1600	10
40ZY243000	24	≤80	3000	≤400	2200	220	4.8	900	1.8
40ZY244500	24	≤120	4500	≤800	3300	300	9.9	1200	3
40ZY246000	24	≤160	6000	≤1500	4500	400	18	1600	5.5
